Products Description

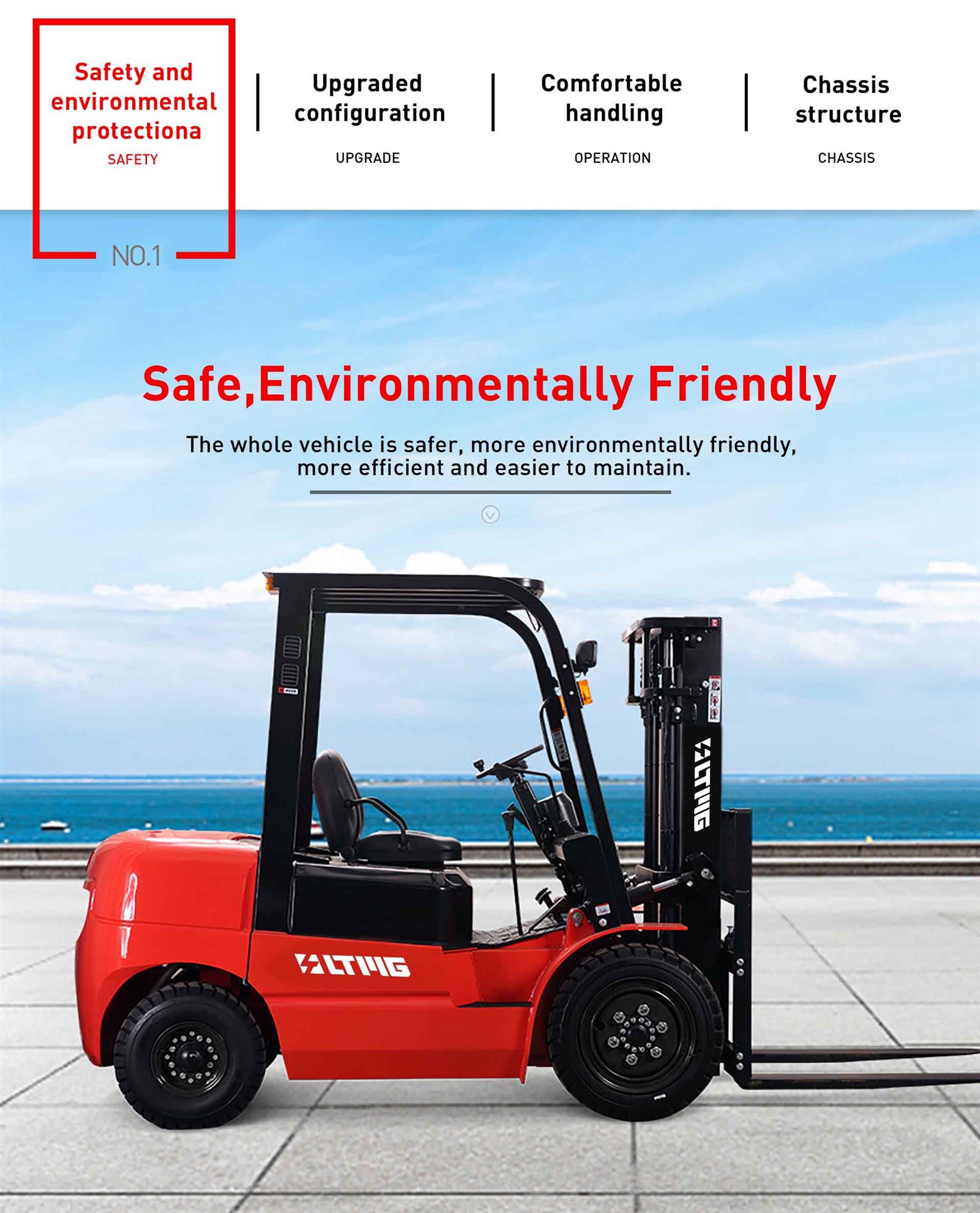

The FD30 3-ton forklift truck is an effective diesel-powered forklift truck that is broadly used for loading and unloading operations in such industries as construction, logging, mining, distribution, manufacturing, warehouses, forwarding companies, etc. It is best for working exterior and is resistant to dirt. Forklifts are configured to meet your wishes and budget. The low noise and exhaust emissions make the forklift truck environmentally friendly. Working remedy is more advantageous by means of the ergonomic design, elevated workspace, and clever layout. Maintenance is easy, which extends the provider's lifespan of the diesel forklift.
We offer a full range of logistics equipment with a CE certificate, like:
Diesel forklift truck(1.5-42t)
Gasoline/PLG forklift truck(1.5-7t)
Electric forklift truck(1-12t)
Warehouse Equipment: reach truck, reach truck, double deep reach truck, VNA, electric stacker, electric pallet truck
3 Ton diesel forklift specifications
| Model-Specification | FD30 | ||||
| Power Type | Diesel | ||||
| Rated load | Kg | 3000 | |||
| Load Centre | mm | 500 | |||
| Lifting height | B | mm | 3000 | ||
| Free lift height | E | mm | 120 | ||
| Fork size | Length x Width x Thickness | J/W/T | mm | 1070×125×45 | |
| Mast Inclination | Front/Rear | F/K() | deg | 6/10 | |
| Front Overhang | K | mm | 481 | ||
| Rear Overhang | M | mm | 500 | ||
| Overall dimensions | Overall length (without forks) | Y | mm | 2710 | |
| Overall width | Q | mm | 1230 | ||
| Height without lifting | C | mm | 2070 | ||
| Height when the gantry is raised | A | mm | 4210 | ||
| Height of safety canopy | P | mm | 2190 | ||
| Minimum turning radius | R | mm | 2400 | ||
| Travelling speed (unladen/full load) (I/II) | Km/h | 8/20 | |||
| Lifting speed (unloaded/full load) | mm/sec | 470 | |||
| Lowering speed (full load) | mm/sec | 400 | |||
| Maximum tractive effort (fully loaded) | N | 20000 | |||
| gradient | % | 20 | |||
| tyres | front wheel | mm | 28X9-15-14PR | ||
| rear wheel | mm | 6.50-10-10PR | |||
| tread | front wheel | u | mm | 1010 | |
| rear wheel | V | mm | 980 | ||
| wheelbases | L | mm | 1750 | ||
| ground clearance | At the portal frame (empty/full) | mm | 150/120 | ||
| At the frame (empty/full) | mm | 170/150 | |||
| self weight | Kg | 4120 | |||
| axle load | fully loaded | front axle | Kg | 6420 | |
| Rear Axle | Kg | 700 | |||
| unladen | Front bridge | Kg | 1720 | ||
| Rear axle | Kg | 2400 | |||
| batteries | Voltage/Capacity | V/Ah | 12/80 | ||
| Engnie | Model | 4D29V41 | |||
| Brand | XinChai | ||||
| Rated Power/RPM | kw | 36.8/2500 | |||
| Rated torque/speed | Nm | 165/1600～1800 | |||
| Cylinders | 4 | ||||
| Bore x Stroke | mm | 93x105 | |||
| Displacement | L | 2.85 | |||
| discharge | 国V | ||||
| Fuel tank volume | L | 70 | |||
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail.
shipping Plans Of LTMG Machines
We are a leading China-based logistics equipment manufacturer and exporter. We've been rooted in this industry for more than 20 years, and our forklifts have been exported to more than 180 countries. If you're planning to import forklifts from China, choose us-we won't let you down. Bulk orders are eligible for better discounts!
FAQ
Q: Why choose us?
A: As a manufacturer, we are committed to offering not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-sales services.
Q: What payment terms can we accept?
A: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed on can also be accepted.
Q: What Certificates do we have?
A: All products meet the ISO9001 Quality System and have acquired a CE certificate. Certificate of compliance with EPA, Euro 3 and Euro 5 engine emission approvals.
Q: How about our delivery time?
A: Usually, it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
