Products Description
Heavy-duty diesel forklifts are effective and secure in operation, supplying a rugged and reliable answer for any commercial enterprise seeking to cross heavy items quickly and safely. With their superior technological know-how and extraordinary construct quality, these forklifts are designed to face up to even the most harsh environments, making them the perfect choice for agencies that demand the best possible range of overall performance and reliability.
Whether you want to sell off containers, stack heavy steel, or take care of giant volumes of stone or concrete, our heavy-load forklifts have the power and sturdiness to get the job done. With their superior science and intuitive controls, our forklifts are designed to supply you most manipulate and precision, permitting you to handle heavy loads with ease and confidence.
The configuration and performance of the large tonnage forklift truck have been upgraded and modified through an ongoing product development program.LTMG's 32-ton heavy-duty forklift trucks are made of high-strength steel plate material, capable of carrying high-intensity porter work and providing sophisticated protection for the operator. The vehicle's engine and transmission are all of internationally recognized brands, powerful, responsive, and of high quality, making it an excellent choice for large tonnage forklifts.
specification
|
Item |
FD320 |
||
|
Features
|
Rated Load |
Kg |
32000 |
|
Load Center |
mm |
1220 |
|
|
Wheelbase |
mm |
4800 |
|
|
Weight |
Weight |
Kg |
42000 |
|
Chassis
|
Tire Specs:Front |
16.00-25 |
|
|
Tire Specs:Rear |
16.00-25 |
||
|
Tires Qty,front/rear(X-dreve wheels) |
4/2 |
||
|
Wheel tread:Front |
mm |
2430 |
|
|
Wheel tread:Rear |
mm |
2230 |
|
|
Dimensions
|
Mast/carriage tilt angle(front/rear) |
Degree(°) |
6/12 |
|
Mast height(fork lowering) |
mm |
4150 |
|
|
Mast lifting height |
mm |
4000 |
|
|
Max.height |
mm |
6120 |
|
|
height to head guard(height to cab) |
mm |
3460 |
|
|
Overall height(with forks) |
mm |
9460 |
|
|
Fork front verticaal sueface to the rear end of the vehicle |
mm |
7060 |
|
|
Overall width |
mm |
3360 |
|
|
Fork dimension |
mm |
2400*320*120 |
|
|
Fork carriage width |
mm |
3000 |
|
|
Mast min ground(with load) |
mm |
400 |
|
|
Wheelbase center min ground(with load) |
mm |
460 |
|
|
Min.turning Radius |
mm |
6600 |
|
|
Travel speed(with load/without load) |
km/h |
25/28 |
|
|
Performance
|
Llifting speed(with load/without load) |
mm/s |
260/280 |
|
Tractionn |
KN |
200 |
|
|
gradeability(with load/without load) |
% |
20/20 |
|
|
Driving brake |
Hydraulic clamp disvc |
||
|
Engine
|
Engine brand |
Dongfeng cummins |
|
|
Engine model |
6CTA8.3-C260 |
||
|
Rated Output |
194(Kw) |
||
|
Cylinder No |
6 |
||
|
Others |
Transmission gears(Front/rear) |
2/1 |

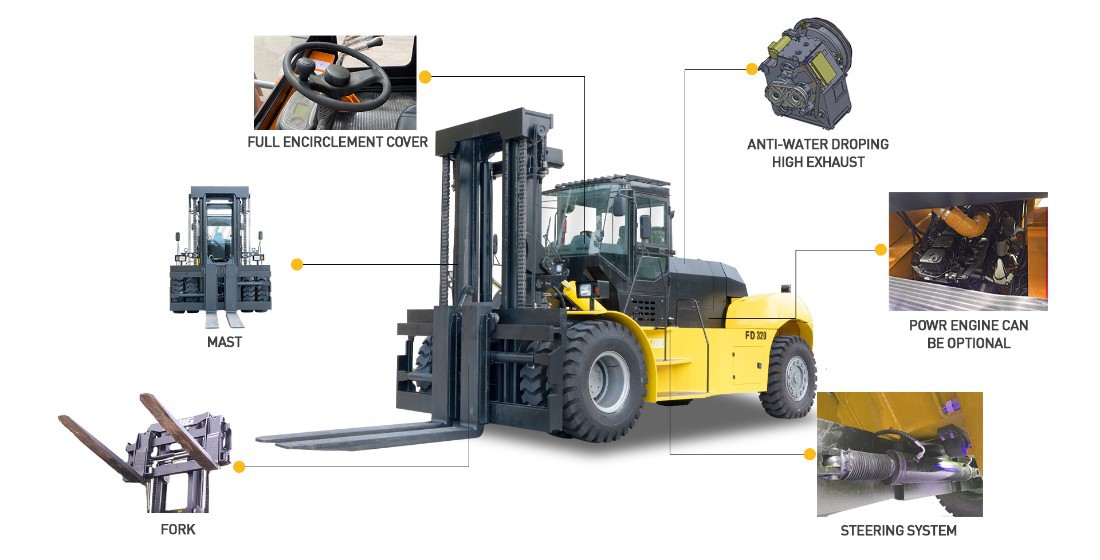

Details of 32ton diesel forklift
Heavy-load forklifts are designed to take on the hardest work areas with ease. With their excellent load capacity, these forklifts can deal with heavy masses with ease, making them the ideal answer for many industries and applications. Whether you are working in a lumber mill, port, shipyard, concrete plant, or metal mill, a heavy-load forklift will appreciably enhance your operational efficiency.

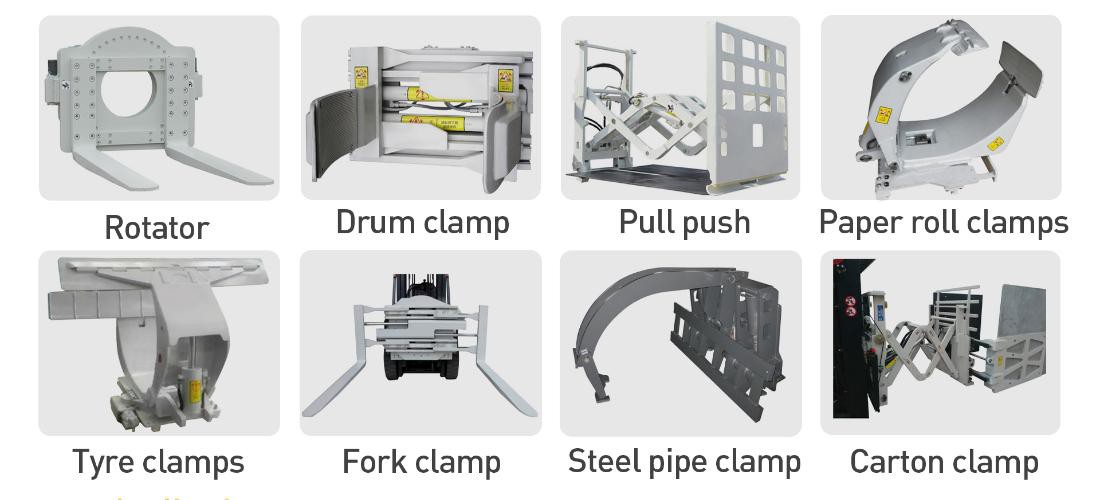

Attachment of LTMG forklift Truck
Same as other forklifts, this 32-ton diesel forklift is also suitable for various attachments. You can choose the right category according to your actual scene needs. If you have any concerns, please feel free to contact our staff, who will provide you with professional answers.
