Equipped with a renowned Chinese diesel engine, the 4.5 ton diesel forklift truck boasts bold energy and incredible gas efficiency, making it a dependable choice for more than a few industrial applications. The intuitive diagram contains a detection system, improving the standard security of the operator for the duration of operation.
One of the standout aspects of the 4.5 ton diesel forklift is its first-rate traction on sloping and moist surfaces, making sure steadiness and manipulate in difficult working environments. The superior engineering of the excessive roof and large-diameter air consumption gadget keeps the engine away from dust, optimizing overall performance and extending its operational life. This considerate diagram no longer solely enhances the diesel carry truck's effectivity however also contributes to a discount in preservation costs.



The 4.5 ton diesel forklift is designed to excel in harsh and soiled outside environments. Unique air consumption positions and a cyclonic air cleaner furnish introduced safety to the gasoline machine and engine, protecting them from the intrusion of dirt and dust. This characteristic makes it relatively well-suited for heavy lifting operations in industries such as concrete, brick, metal, recycling, timber, and mining, the place difficult prerequisites are common.
Technical Specification
| Model | FD45 | |
| Rated lifting load | kg | 4500 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 160 |
| overall length (With fork/Without fork) | mm | 4120/3050 |
| Width | mm | 1400 |
| Overhead guard height | mm | 2230 |
| Wheelbase | mm | 1900 |
| Minimum ground clearance | mm | 150 |
| Mast tilt angle (front/rear) | % | 6° /12° |
| Tire no (before) | 300-15-20PR | |
| Tire no (after) | 7.00-12-12PR | |
| Minimum turning radius (outer side) | mm | 2820 |
| Minimum right-angle aisle width | mm | 4830 |
| Fork size | mm | 1070*150*50 |
| maximum working speed(Full-load/No-load) | km/h | 18/19 |
| maximum lifting speed(Full-load/No-load) | mm/s | 420/460 |
| maximum gradeability(Full-load/No-load) | % | 15/20 |
| Forklift weight | kg | 5860 |
| Engine model | Quanchai4C4-50V31 |
With technological innovation, our product configuration and parameters will continue to change without notice.
if there is any doubt, the specific confirmation of our international trade sales shall prevail.

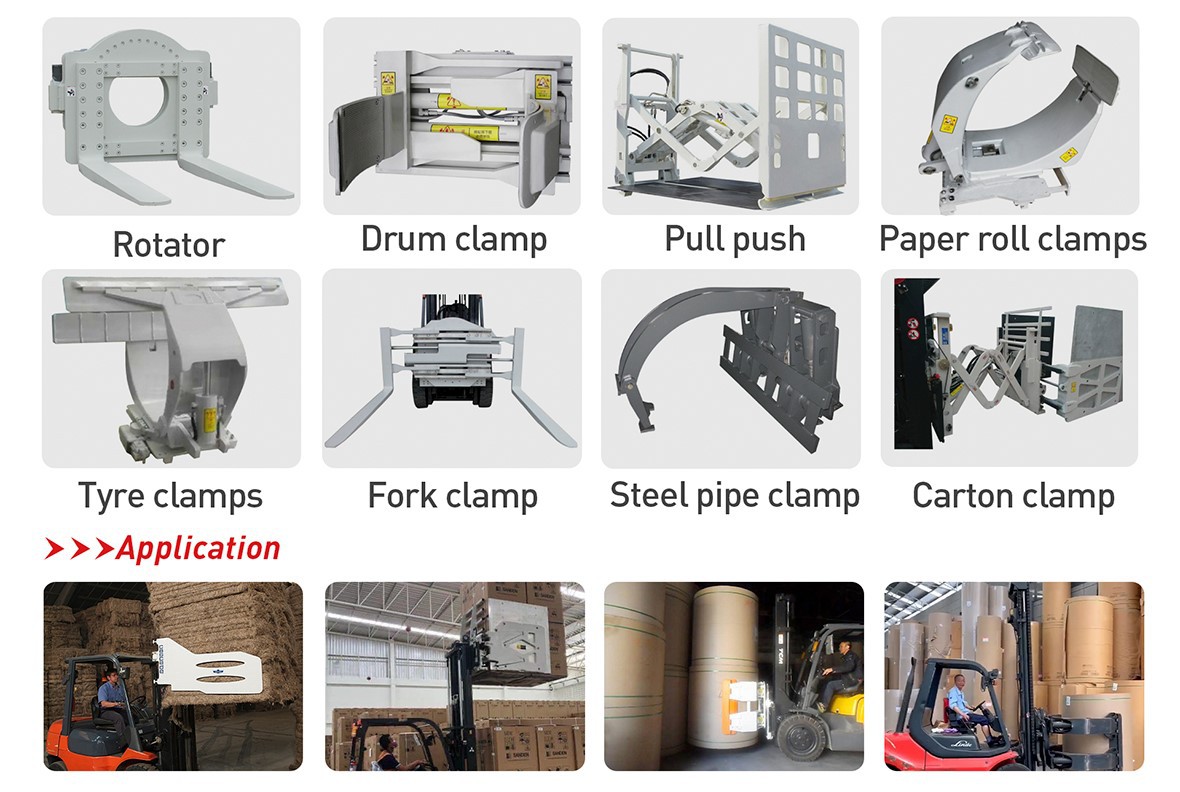

optional attachments

customize services

FAQ
Q: Are your products readily available?
For our standard product offerings, we can promptly verify their availability upon your request. In the case of customized products, we are fully committed to accommodating your specific requirements. Our dedicated team will invest time and resources to ensure that your order is fulfilled to your complete satisfaction, aligning perfectly with your unique needs. You can rely on us for the timely and efficient delivery of your tailored solutions.
Q: Can the 4.5-ton diesel forklift be easily maintained?
Yes, the forklift is designed with ease of maintenance in mind. Its user-friendly features and accessible components make routine maintenance tasks straightforward, minimizing downtime and ensuring optimal operational efficiency.
Q: What is the delivery time of your machine?
Q: How can I access after-sales service?
Our customer service operates around the clock, demonstrating an unwavering commitment to promptly addressing all your inquiries and concerns. Our team is always available to assist you with a positive and proactive attitude, ensuring effective and timely solutions to any problems you may encounter.
