Products Description

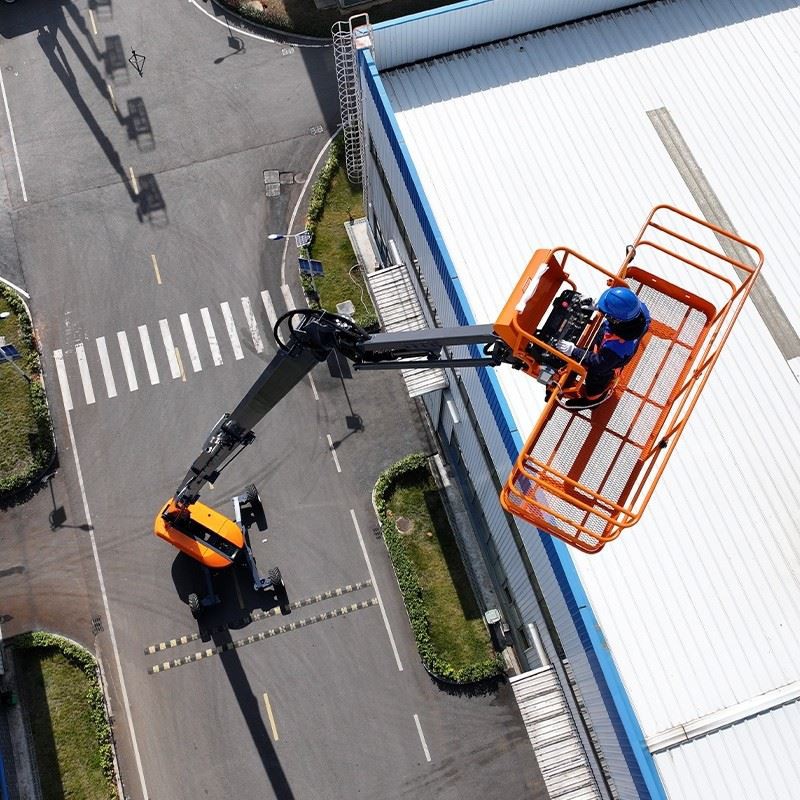

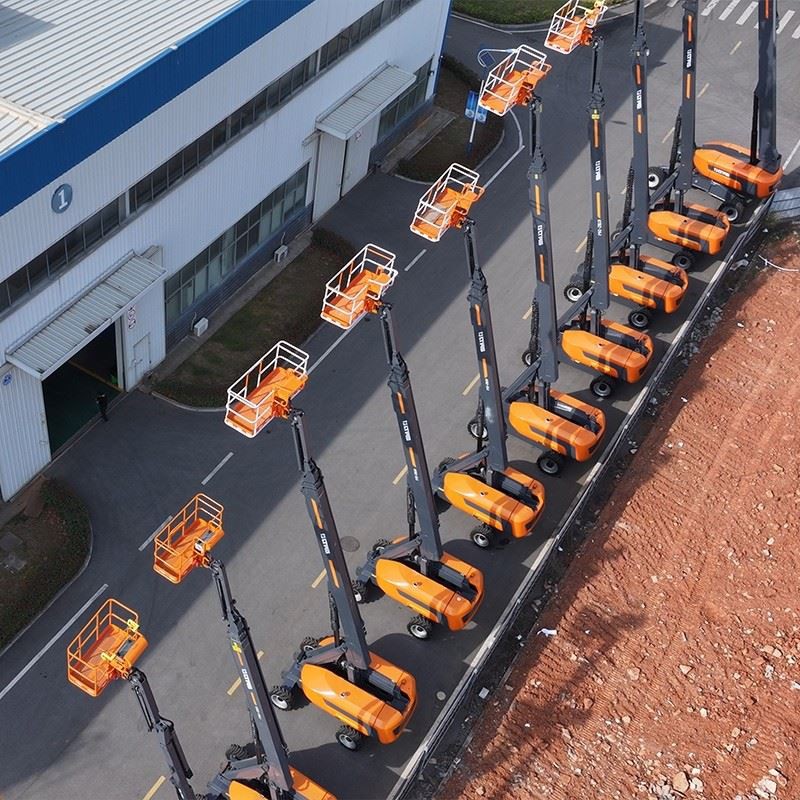

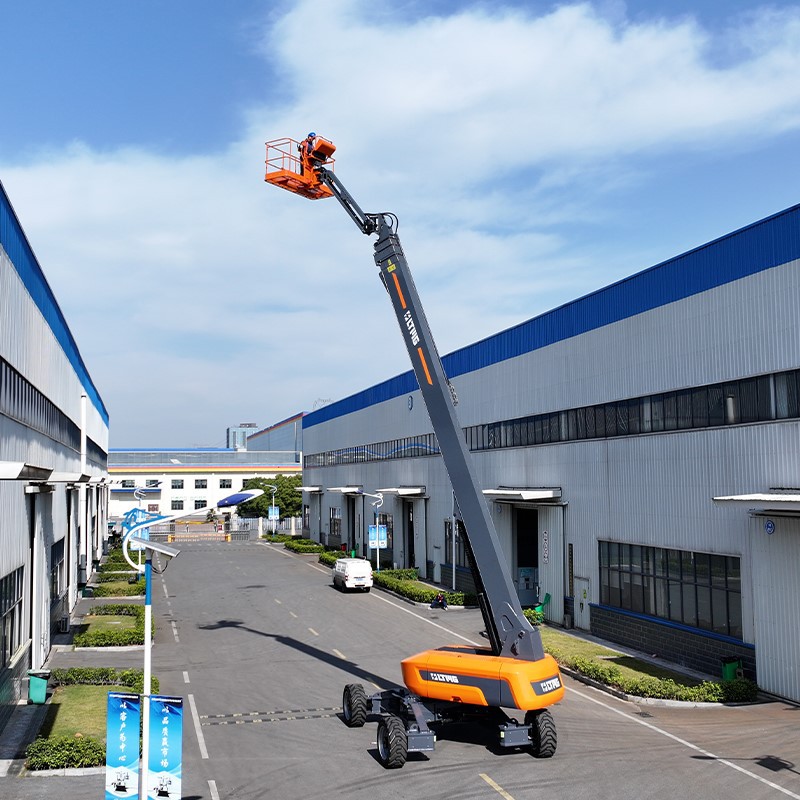

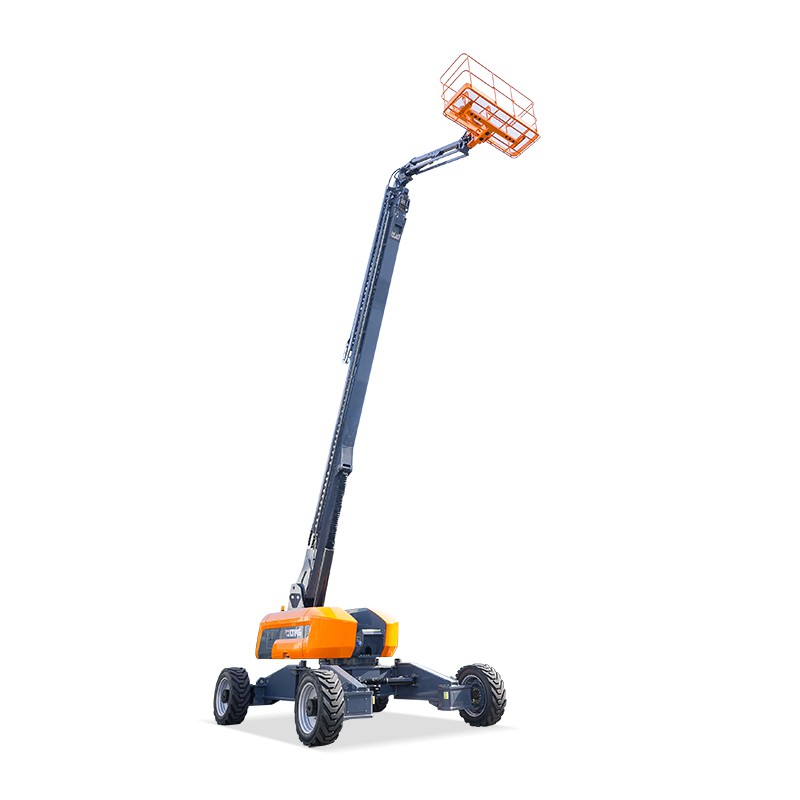

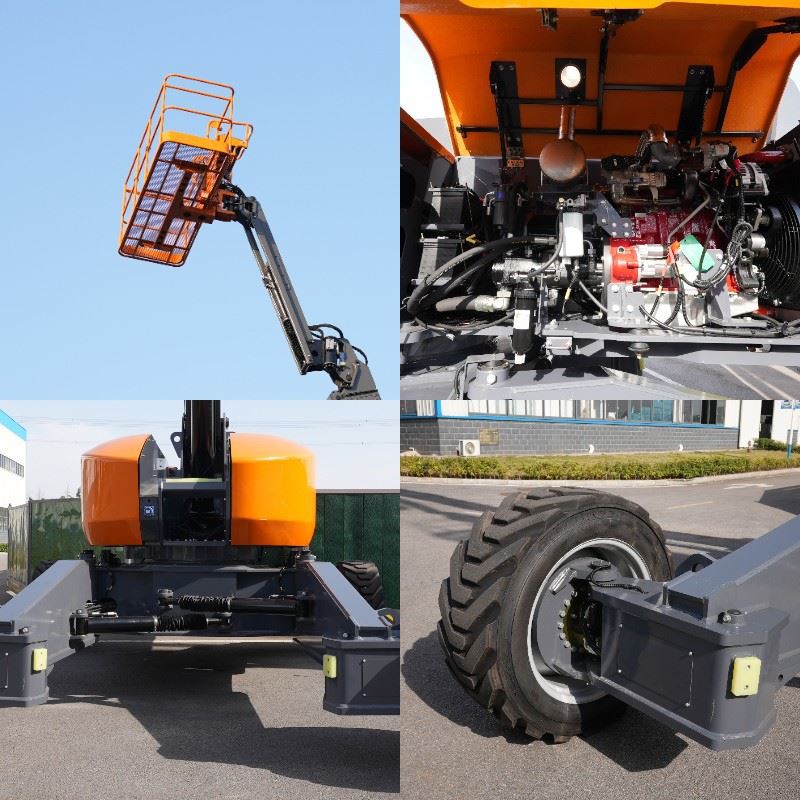

The LTMG 42-meter telescopic boom lift features a fully telescopic boom, large outrigger span, and excellent stability. It allows for simultaneous or individual operation, ensuring safety and reliability. With its compact structure and convenient operation, it also boasts a fast lifting speed and high work efficiency. The lift is highly flexible and can operate efficiently even in tight spaces between high-rise buildings. As a professional brand in aerial work platforms, it is leading new trends in the industry.
specification
| Dimension | |
| Working height maximum | 43.6m |
| Platform height maximum | 41.6m |
| Horizontal height maximum | 23.8m/21.6m |
| Length -stowed | 14.96m |
| Width-stowed | 2.49m |
| Height-stowed | 3.15m |
| Platform size(L×W) | 2.44m*0.91m |
| Wheel base | 4.17m |
| Ground clearance(center) | 0.48m |
| Productivity | |
| Lift capacity | 250kg/480kg |
| Max platform occupancy | 2 |
| Drive speed-stowed (max) | 4.4 km/h |
| Drive speed-raised (max) | 1.1 km/h |
| Gradeability-stowed | 40% |
| Turning radius-inside(raised) | 2.94m |
| Turning radius-inside(stowed ) | 8m |
| Turning radius-outside(raised) | 6.2m |
| Turning radius-outside(stowed ) | 10m |
| Turning tail-swing | 1.89m |
| Working slope maximum | 5° |
| Rotation | 360° |
| Tyre | 445/50D710 |
FAQS
Q: What certificates do you have?
A: LTMG workshops meet the ISO 9001:2008 Quality System. All of our products come with a CE certificate. Some of our products also meet the EPA requirements.
Q: Can you customize and design according to the clients' requirements?
A: LTMG will try its best to meet all special client requirements. However, all customizing and refitting should be implemented safely and scientifically. The colors can be painted according to the client's needs.
Q: How long is the warranty of your products?
A: Normally, it is 1 year or 2000 working hours, whichever occurs first. For details, please refer to the LTMG warranty policy for each model.
Q: Can you produce products labeled with the client's brand?
A: With the authorization of the brand, we can offer OEM services for our clients.
Q: What payment terms do you accept?
A: Normally, we accept 30% T/T in advance as a deposit, with the balance paid before shipment. We also accept 100% L/C at sight issued by a well-known, reputable bank.
