Products Description

The FDS60 aspect forklift makes use of a diesel engine as its power supply and has a load capacity of 6 tons. Without turning, it has the potential to immediately fork items from the side, such as lengthy wood, pipes, steel, etc. It is broadly used in domestic improvement construction materials, development sites, port terminals, and different industries.

During the technique of warehousing and warehousing, the strip-shaped items are parallel to the car physique and are now not constrained using the width of the channel. There is no need to turn at any stage in loading and unloading operations. The fork faces the shelf or cargo stack and can immediately fork items from the side, which is something that typical front forklifts can't do. This function makes the facet forklift appropriate for slim channel operations.

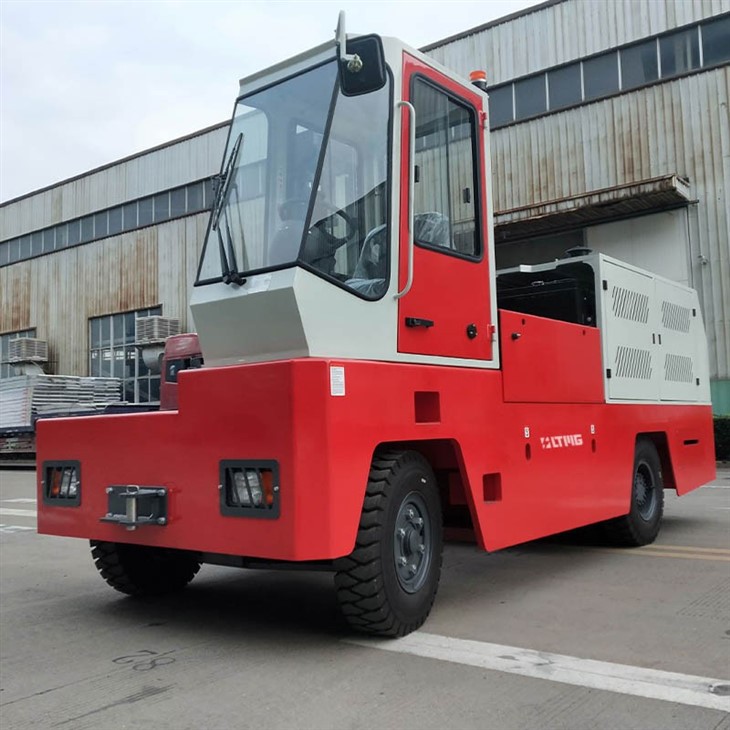

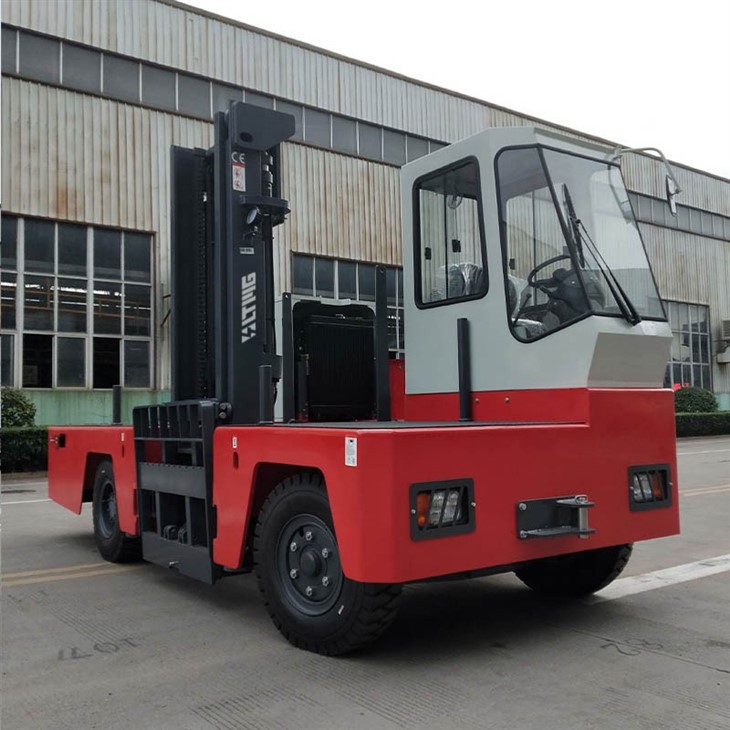

side loading forklift truck

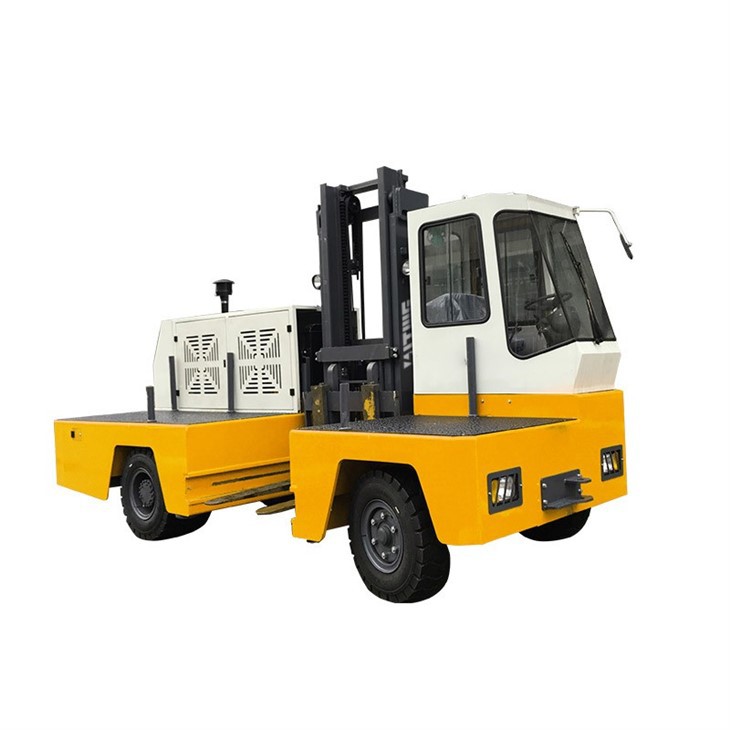

industrial side loader forklifts

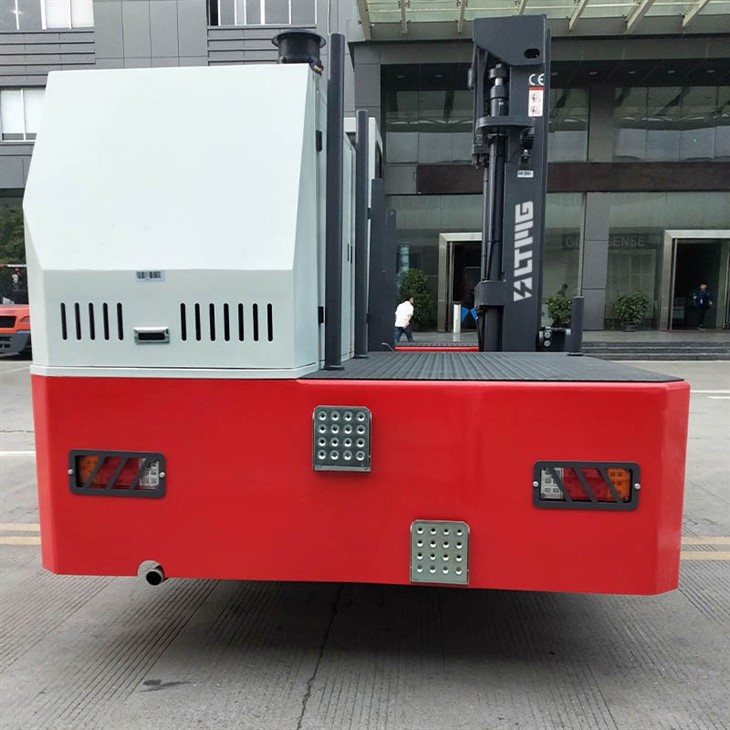

side loader fork truck

parameters

Model			FDS60
Power Type			Diesel
Rated Capacity		kg	6000
Load Centre		mm	600
Lift Height		mm	3600
Fork Size	L×W×T	mm	1220×150×60
Mast Tilt Angle	F/R	Deg	3°/3°
Ground Clearance(Bottom of mast)		mm	245
Overall Dimension	LWT	mm	528021003000
	Platform length	mm	5280
	Platform width	mm	1200
	Platform height	mm	1080
	Overhead Guard Height	mm	2660
Turning Radius (outside)		mm	4450
Speed	Travel (Empty load)	km/h	18
Speed	Lifting (Full load)	mm/s	440
Max.Gradeability		%	15
Tyre	Front	mm	2×8.25-15-14PR
Tyre	Rear	mm	4×8.25-15-14PR
Wheelbase		mm	2900
Self weight		kg	10140
Battery	Voltage/Capacity	V/Ah	(12/80) x 2
Engine	Model		CY6102
	Manufacture		Chaochai
	Rated output/r.p.m.	kw	82.4/2000
	Rated torque/r.p.m.	N·m	416/1400-1600
	No.of Cylinder		6
	Bore×Stroke	mm	105×125
	Displacement	cc	6494
	Fuel Tank Capacity	L	178
Transmission	Type		Hydraulic
Transmission	Stage	FWD/RVS	2/1
Operating Pressure for Attachment		Mpa	19

Company profile

Side loader Forklift company

comprehensive service

customer service

FAQ

Q: How do I operate a diesel sideloader forklift?

A: Operating a diesel sideloader forklift requires specialized training and certification. The operator must be familiar with the unique features of the forklift, including its side-loading capability, and must follow strict safety protocols.

Q: What kind of maintenance does a diesel sideloader forklift require?

A: Regular maintenance is important for ensuring the safe and efficient operation of a diesel sideloader forklift. Maintenance tasks may include oil changes, filter replacements, and inspections of the hydraulic system and tires.

Q: How do I select the right diesel sideloader forklift for my needs?

A: Selecting the right diesel sideloader forklift depends on a variety of factors, including the size of the loads you need to transport, the width of the aisles in your facility, and your budget. It's important to work with a reputable dealer who can help you select the best model for your needs.

Q: How does the side-loading feature on a diesel sideloader forklift work?

A: The side-loading feature on a diesel sideloader forklift allows the operator to load and unload pallets or other loads from the side of the forklift, rather than from the front. This enhances the forklift's maneuverability in tight spaces.
