Products parameter

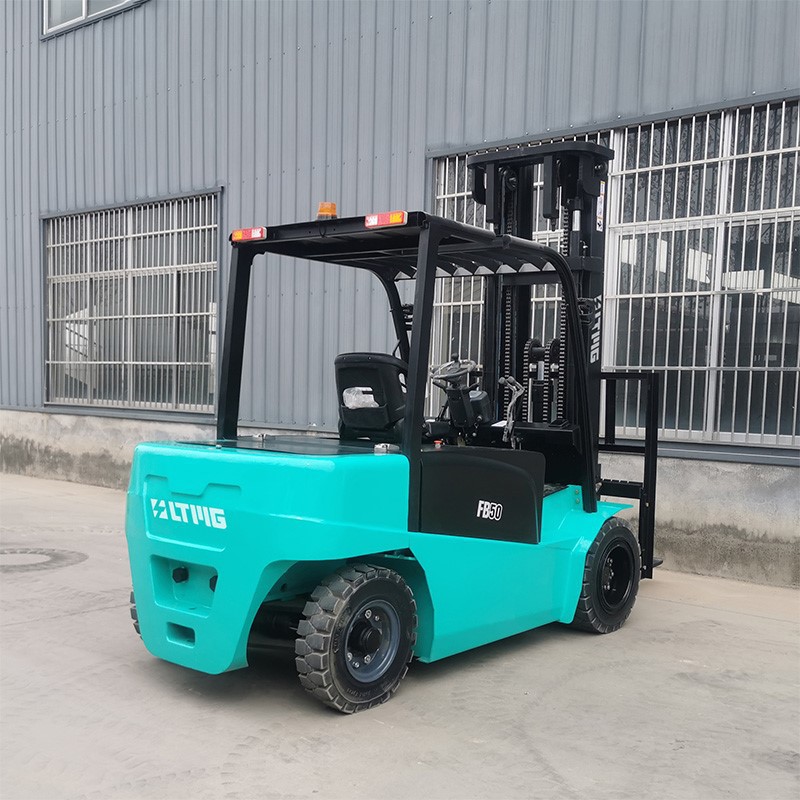

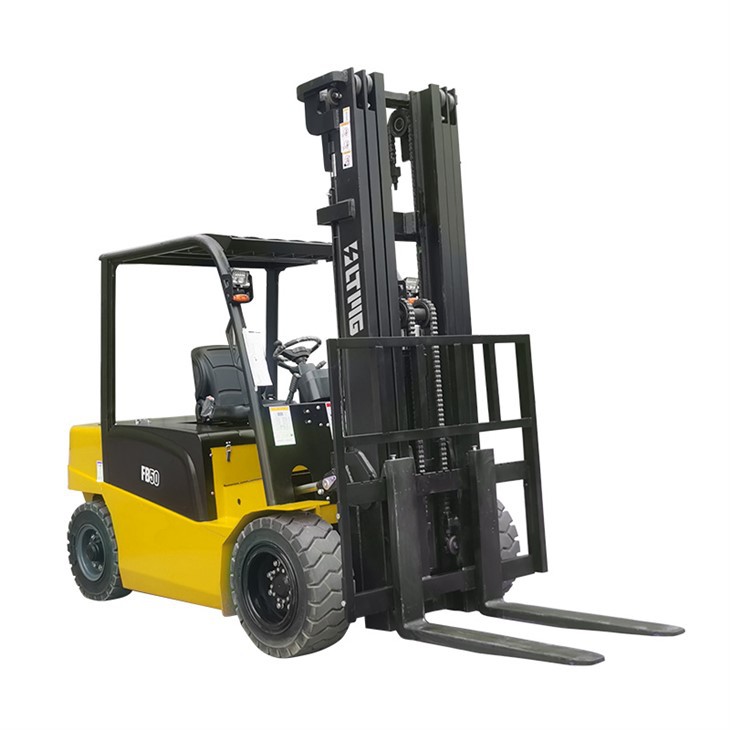

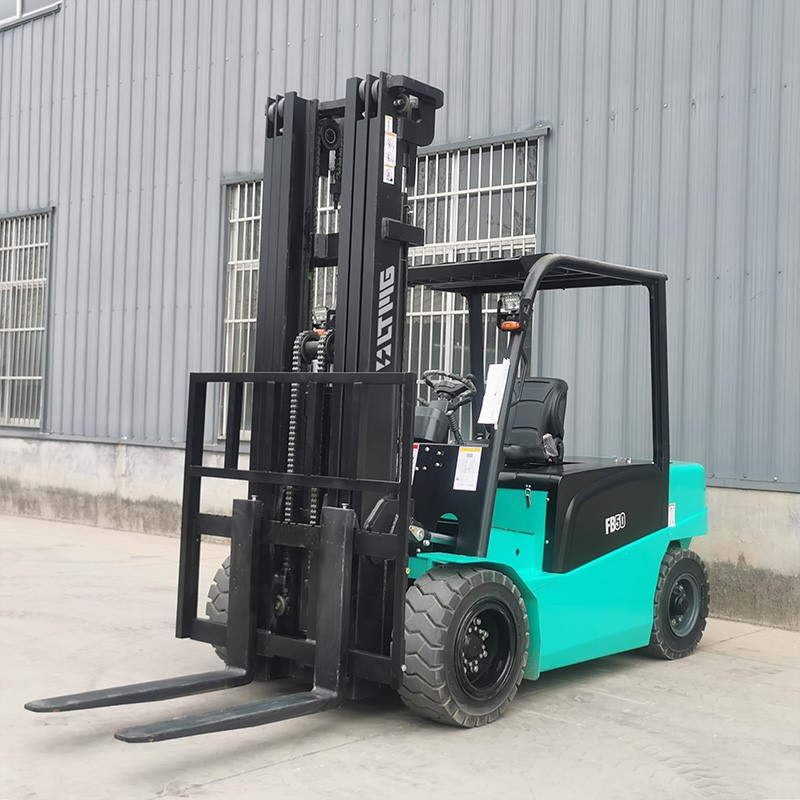

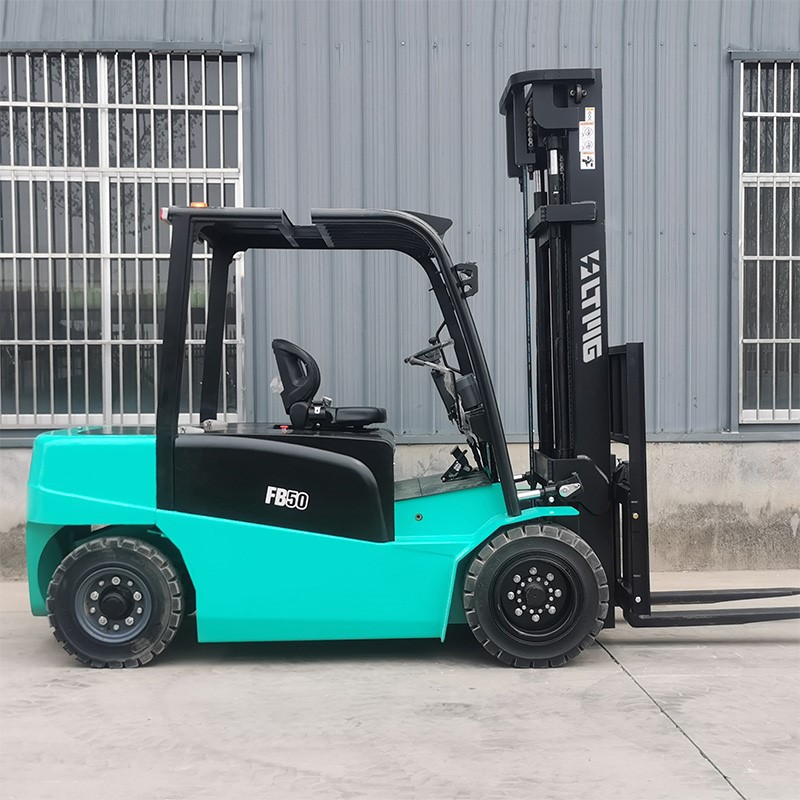

| Model | FB50 | |
| Power type | electric | |
| Rated capacity | kg | 5000 |
| Load center | mm | 500 |
| Tire type | pneumatic tyre | |
| Tilting Angles | α/β(°) | 6/10 |
| Max.lift height of mast | mm | 4170 |
| Height of mast | mm | 2185 |
| Front-wheel Overhead | mm | 2100 |
| Length(without fork) | mm | 2985 |
| Front overhang | mm | 565 |
| Rear Overhang | mm | 420 |
| Wheelbase | mm | 2000 |
| Min.ground clearance | mm | 110 |
| Tread(front/rear) | mm | 1150/1175 |
| Fork size | mm | 1070x150x50 |
| Minimum right Angle stacking channel width | mm | 4630 |
| Min mum urn radius | mm | 2676 |
| Max driving speed | km/h | 13/12.5 |
| Total weight | kg | 6790 |
certificate
FAQ
Q: What kind of operating conditions are suitable for a 5-ton forklift?
A: A 5-ton forklift is ideal for medium to heavy-duty applications, indoor warehouses, and outdoor yards with flat surfaces, capable of lifting loads up to 5,000 kg.
Q: Can a 5-ton forklift be used on uneven terrain?
A:While designed primarily for flat surfaces, some models with enhanced stability features and larger tires can manage slight uneven terrain, but caution and possibly specialized attachments are advised.
