Products Description

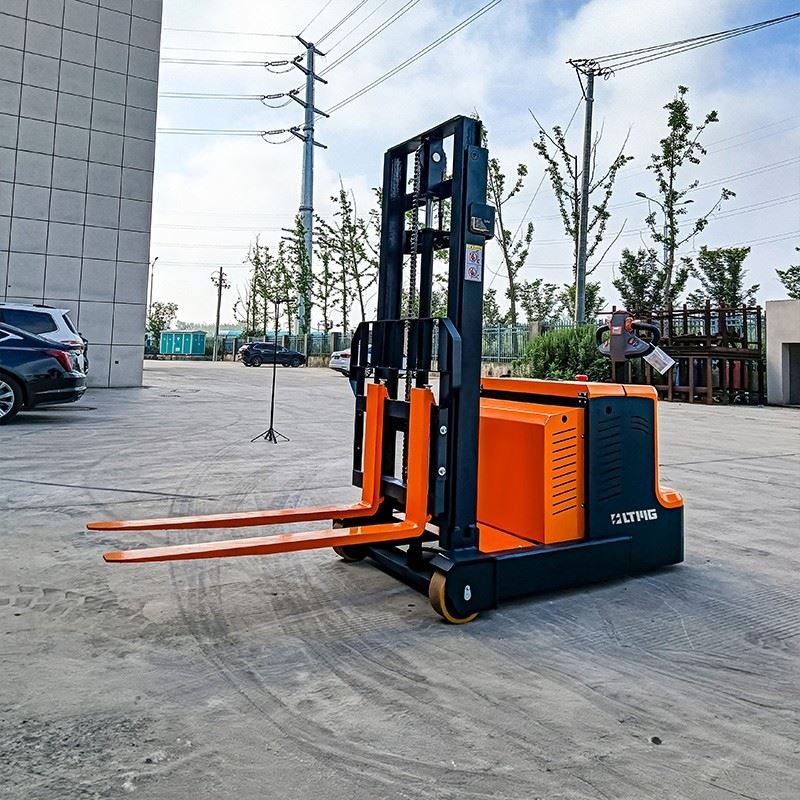

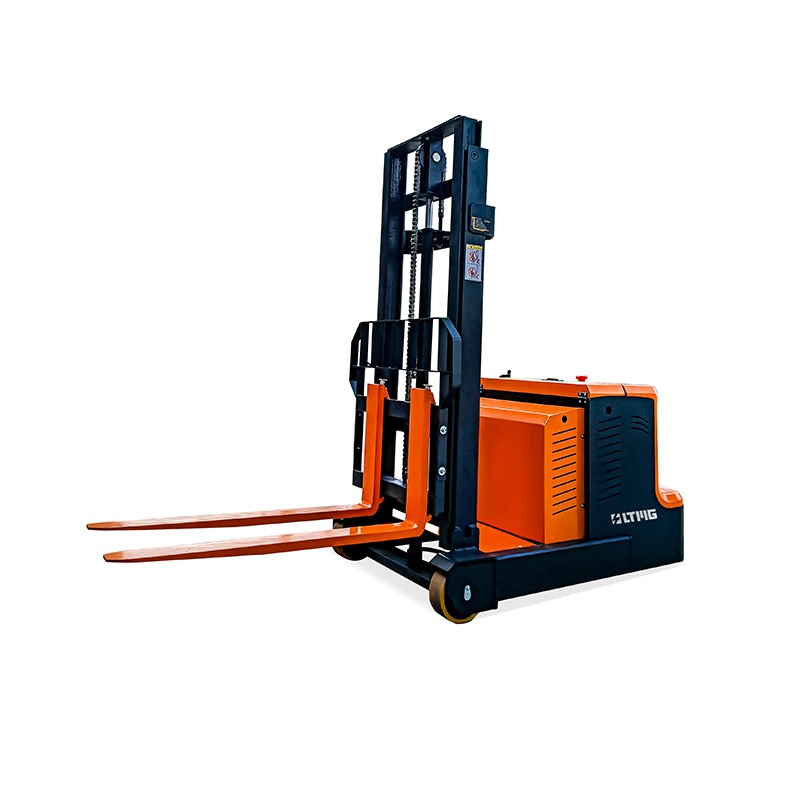

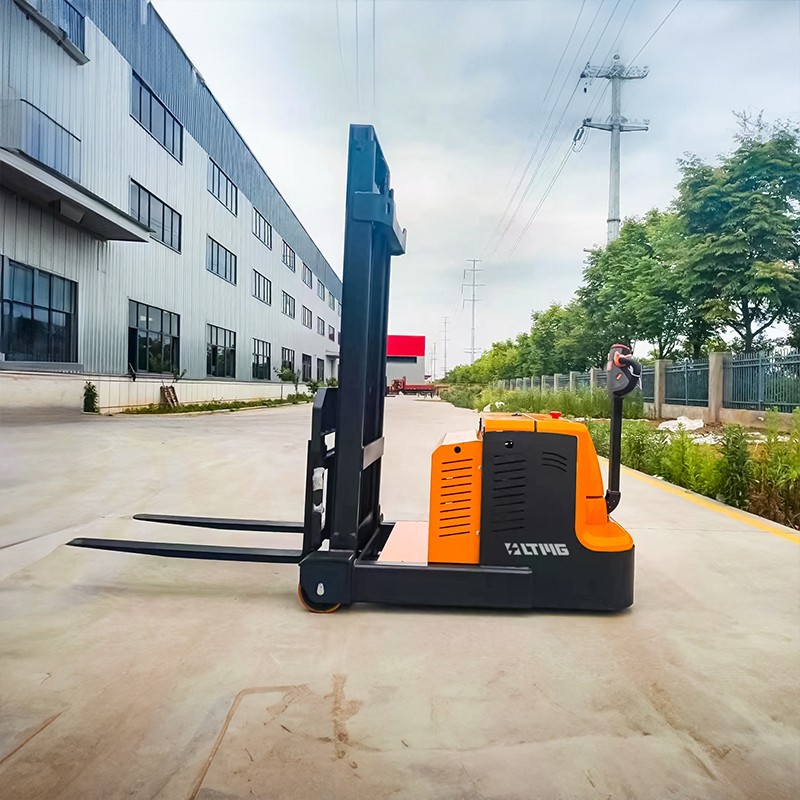

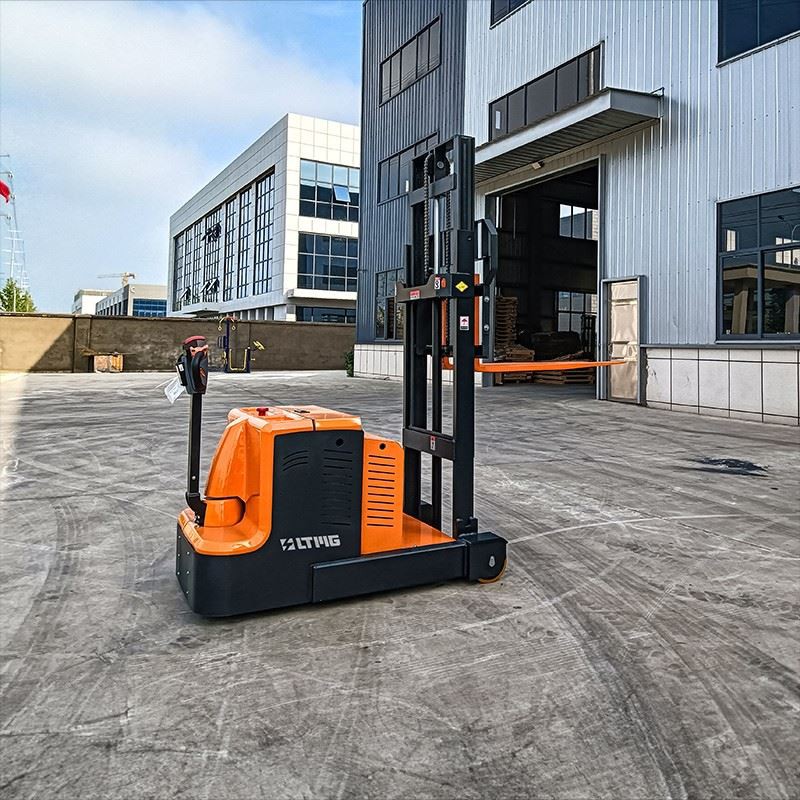

1. Ingenious Structure: It features a compact body and counterweight for stability, even under heavy loads. The sturdy mast allows high stacking, maximizing vertical warehouse space. The control handle easily to operate due to the multiple buttons.
2. Smooth Operation: The electric hydraulic system supports lifting goods smoothly to desired heights. Operators can simply walk and push to move and stack goods, handling palletized or boxed items with ease.
3. Versatile Applications: Ideal choice for warehouses, supermarkets, and workshops. It makes work more efficient, reduces labor costs, and strongly supports the logistics and warehousing industry development.
specification
| Parameter | No. | Model | Unit | ERB10M | ERB15M |
|---|---|---|---|---|---|
| Weight | 2 | Operation Mode | Stand-on | Stand-on | |
| 3 | Rated Load Capacity | kg | 1000 | 1500 | |
| 4 | Load Center Distance | mm | 450 | 500 | |
| 5 | Wheelbase | mm | 1200 | 1400 | |
| 6 | Total Machine Weight (including Battery) | kg | 1400 | 1650 | |
| Wheels | 7 | Tire Type | Polyurethane | Polyurethane | |
| 8 | Tire Size - Drive Wheel | mm | Ø210X70 | Ø248X75 | |
| 9 | Tire Size - Load Wheel | mm | Ø200X80 | Ø200X80 | |
| 10 | Tire Size - Auxiliary Wheel | mm | - | - | |
| 11 | Number of Wheels | 1x/2 | 1x/2 | ||
| 12 | Front Wheel Distance | mm | 830 | 830 | |
| 13 | Rear Wheel Distance | mm | - | - | |
| Dimensions | 14 | Fork Lowest Height | mm | 40 | 40 |
| 15 | Total Length (without Fork) | mm | 1670 | 1870 | |
| 16 | Total Length (with Fork) | mm | 2590 | 2940 | |
| 17 | Total Width | mm | 960 | 960 | |
| 18 | Fork Size | mm | 920x100x35 | 1070x100x35 | |
| 19 | Fork Outer Width | mm | 680 | 680 | |
| 20 | Minimum Ground Clearance | mm | 40 | 60 | |
| 21 | Minimum Aisle Width for Pallet Stacking (1000x1200) Fork Along | mm | 2850 | 3050 | |
| 22 | Minimum Aisle Width for Pallet Stacking (800x1200) Fork Along | mm | 2650 | 2950 | |
| 23 | Minimum Turning Radius | mm | 1550 | 1750 | |
| Performance | 24 | Travel Speed Loaded/Unloaded | km/h | 3/3.5 | 4.5/5 |
| 25 | Lifting Speed Loaded/Unloaded | mm/s | 110/130 | 85/100 | |
| 26 | Descending Speed Loaded/Unloaded | mm/s | 120/100 | 130/80 | |
| 27 | Maximum Gradeability Loaded/Unloaded | % | 3/5 | 5/8 | |
| Engine and Battery | 28 | Braking Method | Electromagnetic Brake | Electromagnetic Brake | |
| 29 | Drive Motor Power | kw | 0.75 | AC 1.5 | |
| 30 | Lifting Motor Power | kw | DC 2.2 | DC 2.2 | |
| 31 | Battery Pack Voltage/Capacity | v/Ah | 2x12V/150 | 24V/180 | |
| 32 | Optional Battery Voltage/Capacity | v/Ah | 24V/180-210 | 24V/210 | |
| 33 | Optional Lithium Battery Voltage/Capacity | v/Ah | 24V/100 | 24V/200 | |
| Others | 34 | Total Machine Noise | dB (A) | <69 | <69 |

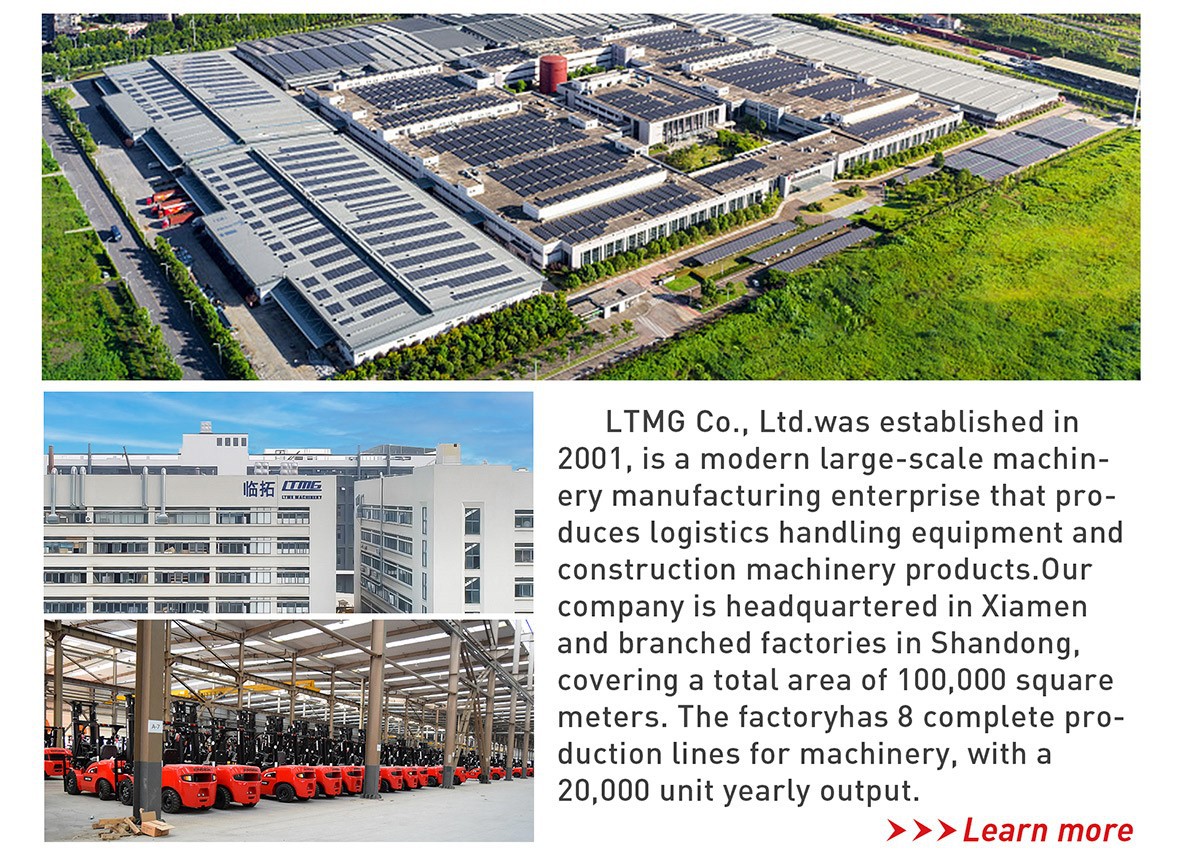

Why choose LTMG?
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service. All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty. Detail clauses and policies please check our website and product certificate.
FAQS
Q: What payment terms can we accept?
A: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight withthe terms we agreed can also be accepted.
Q: What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q: How about our delivery time?
A: Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: Can we provide OEM service?
A: LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
