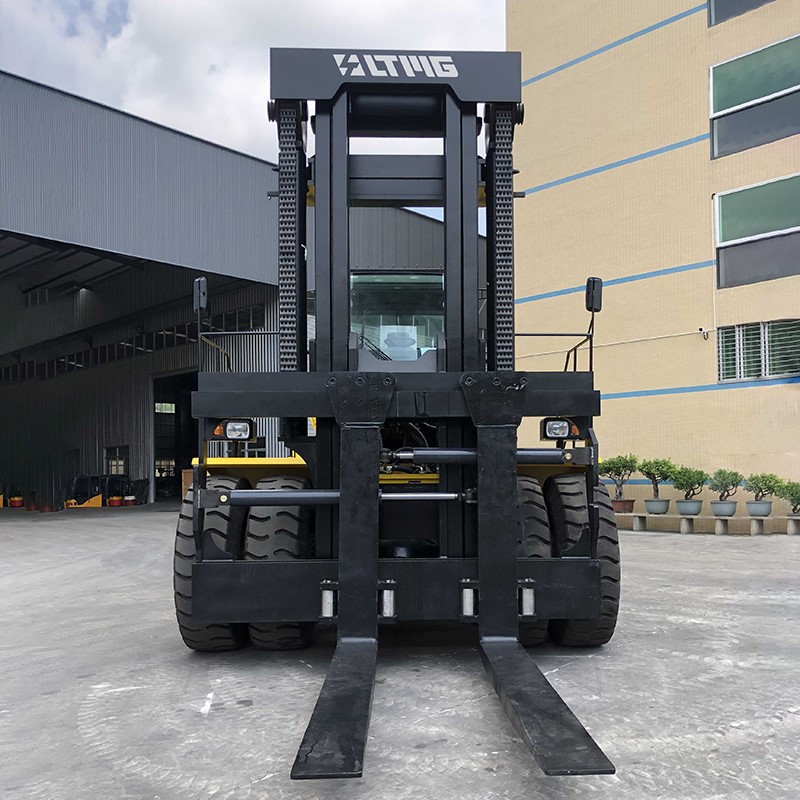

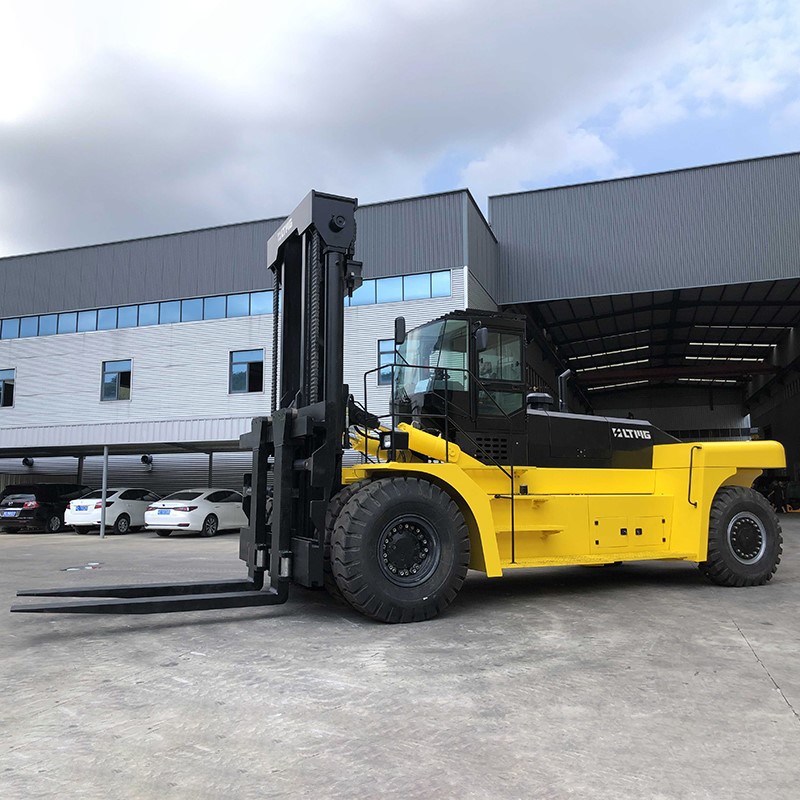

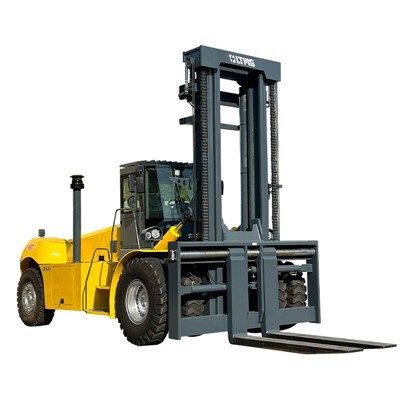

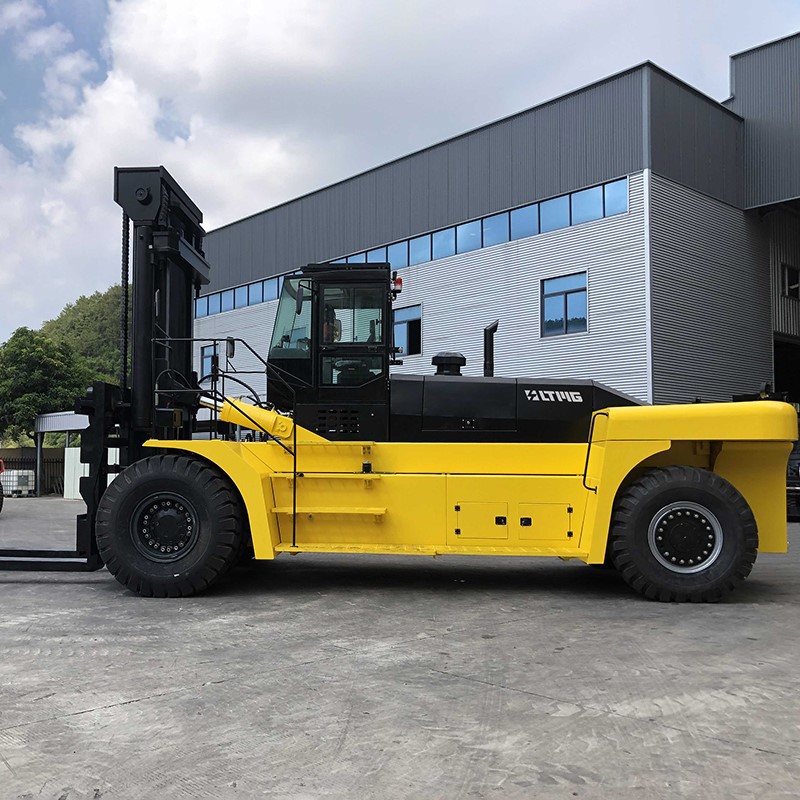

A 50-ton forklift, also known as a heavy-duty forklift or a heavy lifter, is a highly specialized piece of material handling equipment designed for extreme heavy lifting applications. Here are some of the primary uses of a 50-ton forklift :
1. Port Operations: At seaports and marine terminals, 50-ton forklifts are essential for moving and stacking very heavy shipping containers, transferring them between ships, trains, and trucks, and managing breakbulk cargo such as machinery and project cargoes.
2. Construction and Infrastructure: In large-scale construction projects, these forklifts are utilized to lift and position massive building materials, precast concrete elements, steel structures, and bridge segments, among others, where conventional lifting equipment is insufficient.
3. Mining and Quarrying: In mines and quarries, 50-ton forklifts can lift and transport heavy loads such as oversized rocks, extracted ores, and large pieces of mining equipment, assisting in material handling and site logistics.
In essence, the 50-ton forklift is a powerhouse of material handling that excels in applications where extreme weightlifting capabilities are required, often in rugged, outdoor environments or industrial settings where there is no alternative means to manage such heavy loads.


+
Technical Specification
| Model | FD500 | ||
| Rated load | kg | 50000 | |
| Load center | mm | 1220 | |
| Power type | Diesel | ||
| Drving type | Seated / Hydraulic | ||
| Tyre types | Pneumatic | ||
| Max.height | mm | 7040 | |
| Lifting hight | mm | (300) 3600 | |
| Travel speed(with load/without load) | km/h | 22/26 | |
| Fork front sueface to the rear end of the vehicle | mm | 5760 | |
| Overall width | mm | 2750 | |
| Height to head guard | mm | 3240 | |
| Mast height(fork lowering) | mm | 3600 | |
| Fork dimension | mm | 2600*320*130 | |
| Fork carriage width | mm | 3160 | |
| Mast min ground(with load) | mm | 350 | |
| Front overhang | % | 1180 | |
| Rear overhang | kg | 1520 | |
| Max.lifting speed(with load/without load) | 220/260 | ||
| tractionn | MPa | 240 | |
| gradeability(with load/without load) | 20/20 | ||
| Driving brake | Hydraulic clamp disvc | ||
| Engine | Model | Weichai | Weichai |
After-sale service
At LTMG, we prioritize after-sale service over sales, underscoring our commitment to customer satisfaction. With a global network of over 50 agents, LTMG ensures access to professional after-sale service worldwide.
Every LTMG product comes with a one-year or 2000 working hours (which occurs first) quality warranty period. For specific clauses and policies, please refer to our website and product certificate for detailed information. Your satisfaction is our priority.

Shipment

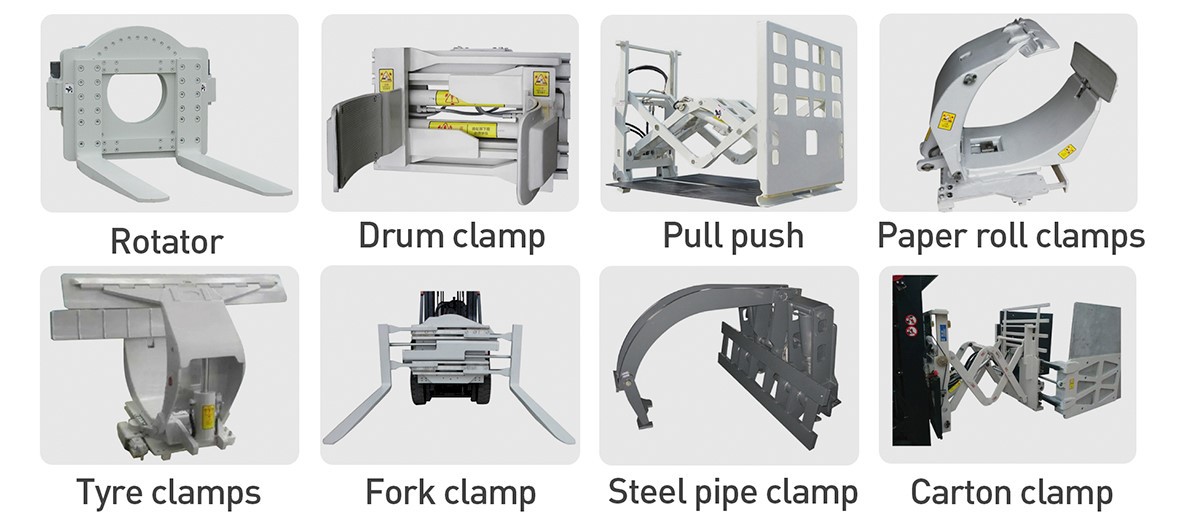

Forklift accessories

FAQ
Q: What Certificate do you have?
Q: Why choose us?
Q: How can you trust our company?
Q: What are the payment methods
Q: Could you please tell me your transportation method?
Q: Can you tell me your warranty
