Products Description

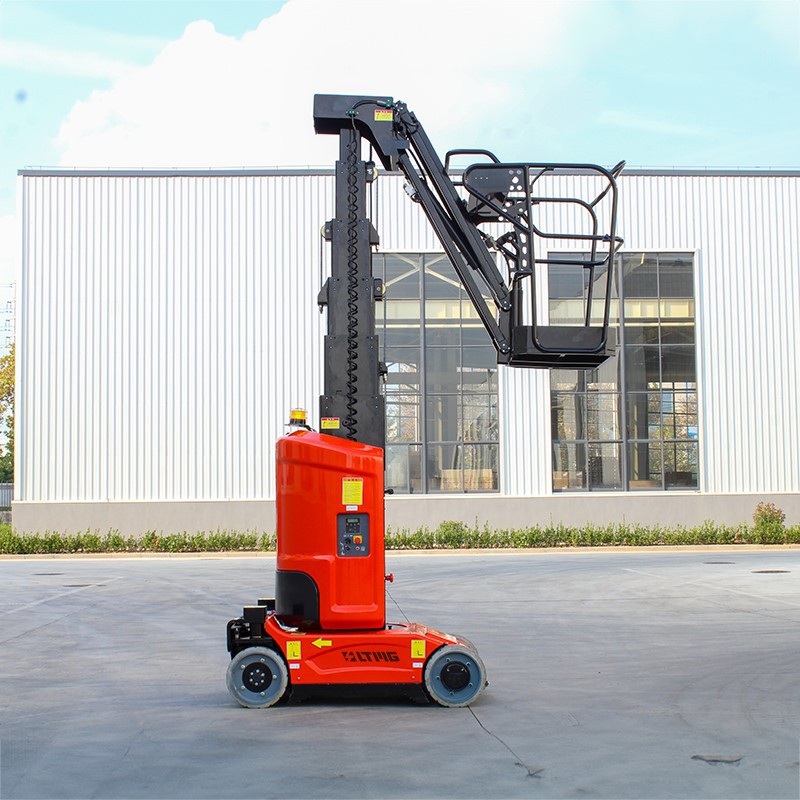

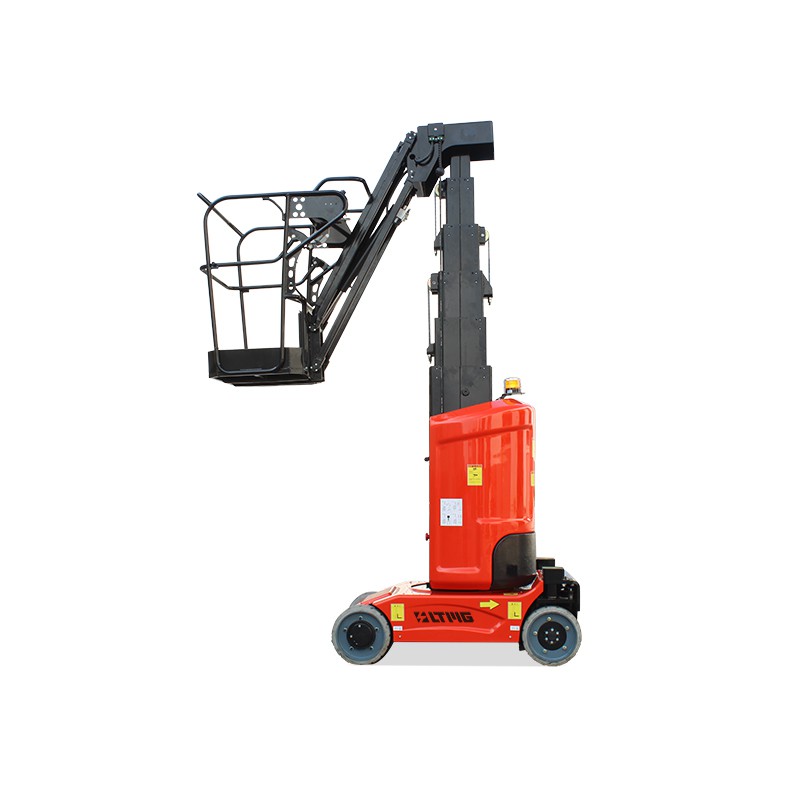

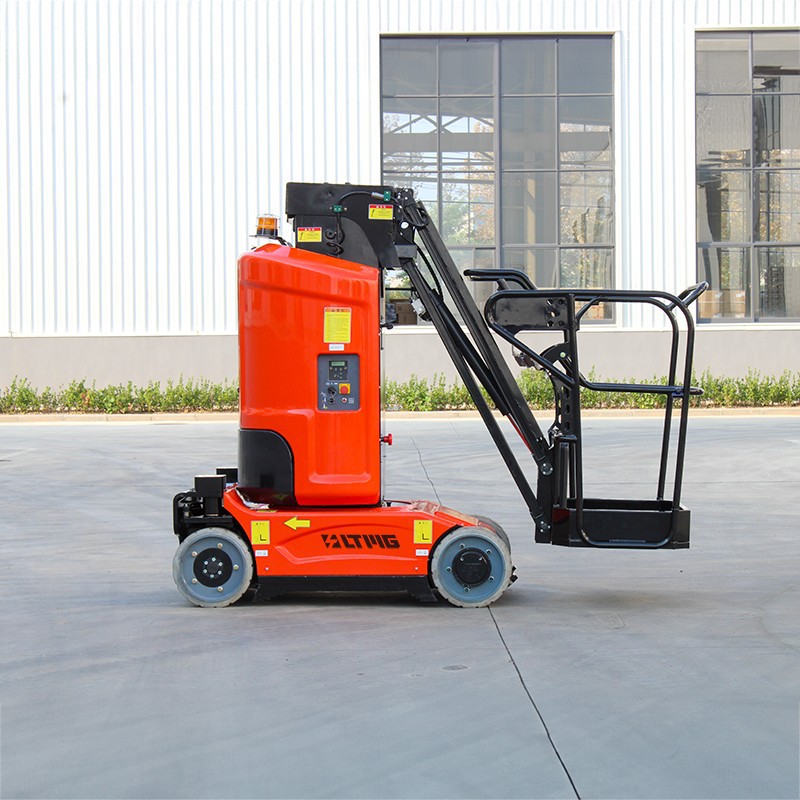

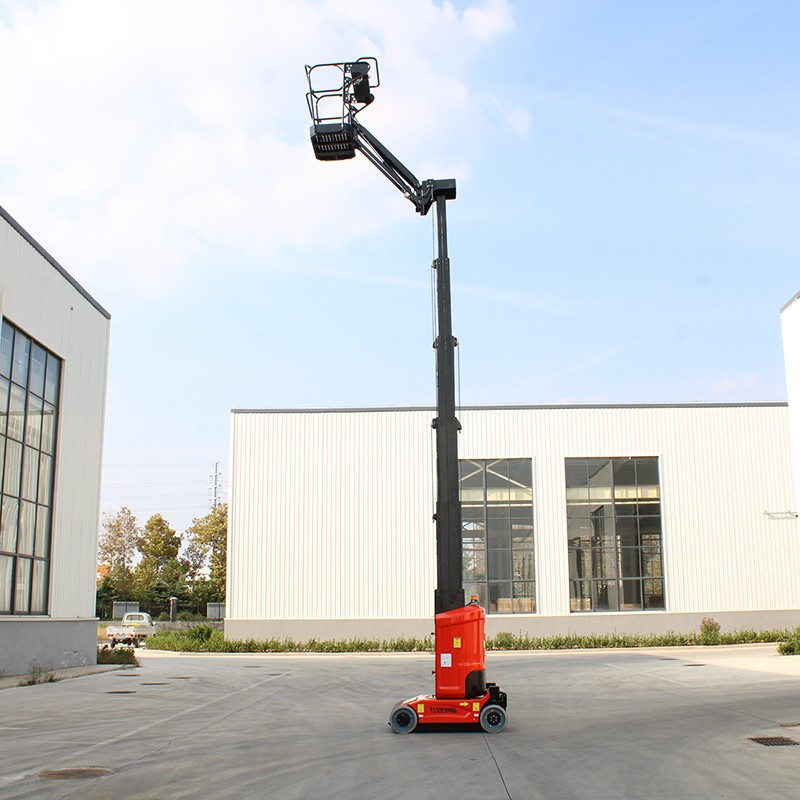

The LTMG Vertical Mast Lift LTPV0911 is a product developed by LTMG Machinery Group, with a maximum lifting height of 9.22 meters, a maximum working height of 11.22 meters, a horizontal extension distance of 3 meters, a vehicle rotation angle of 345°, and a boom movement range of ±60°. The maximum load capacity is up to 200kg.
The mast lift platform is a versatile aerial work platform suitable for various situations. The compact and flexible structure, combined with the vehicle's nearly 360° rotation, allows it to deliver the platform to the designated work position, breaking the limitations of traditional scissor lift platforms that can only move vertically.
Common usage locations include warehouses, airports, orchards, stadiums, and other areas with dense equipment and numerous obstacles, where high flexibility of the lift platform is required.
Specifications
| Model | LTPV0911 |
| Specifications | |
| Max.Working Height | 11.2m |
| Max.Platform Height | 9.2m |
| Max.Horizontal Reach | 3.0m |
| Up and Over Height | 7.89m |
| Overall Length | 2.53m |
| Overall Width | 1.0m |
| Overall Height (Stowed) | 1.99m |
| Wheelbase | 1.22m |
| Guardrail Height | 1.1m |
| Platform Dimension | 0.62m*0.87m |
| Ground Clearance(Stowed) | 70mm |
| Ground Clearance(Raised) | 19mm |
| Loading Capacity | 200kg |
| Occupants | 2 |
| Turning Radius(Inside/Outside) | 0.23/1.65m |
| Turret Rotation | 345° |
| Jib Movement | 130° |
| Travel Speed (Stowed) | 4.5km/h |
| Travel Speed (Raised) | 0.5Km/h |
| Up/Down Speed | 42/38s |
| Max.Working Slope | X-2.5°,Y-2.5° |
| Tyres | φ381*127mm |
| Driving Motor | 24V/0.9Kw |
| Lifting Motor | 24V/3Kw |
| Battery | 24V/240Ah |
| Charger | 24V/30A |
| Weight | 2950Kg |
FAQS
Q: What Certificate do you have?
A: LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
Q: Can you customize and design as the clients' requirement?
A: LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
Q: How long is the warranty of your products?
A: Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
Q: What payment terms do you accept?
A: On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
Q: Delivery time:
A: Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 60 days.
