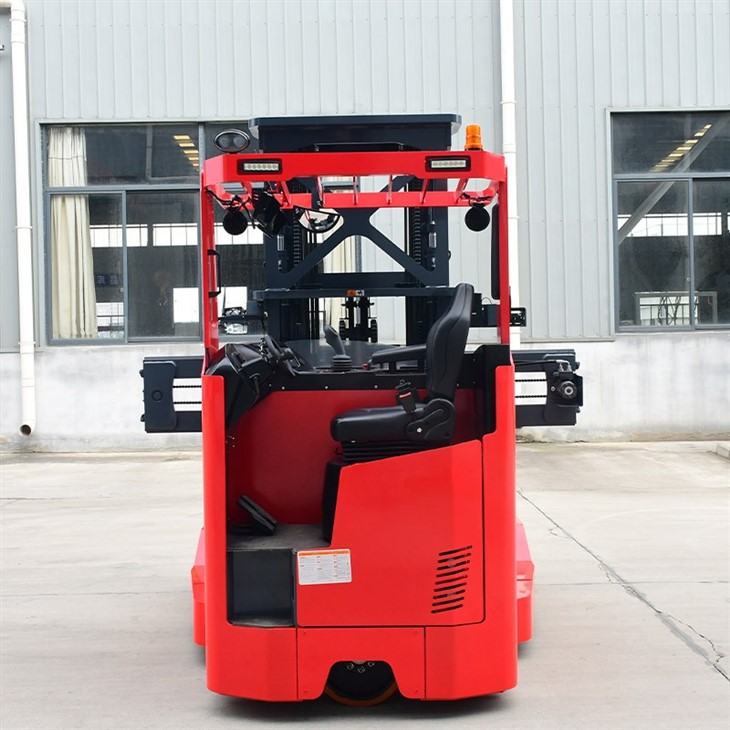

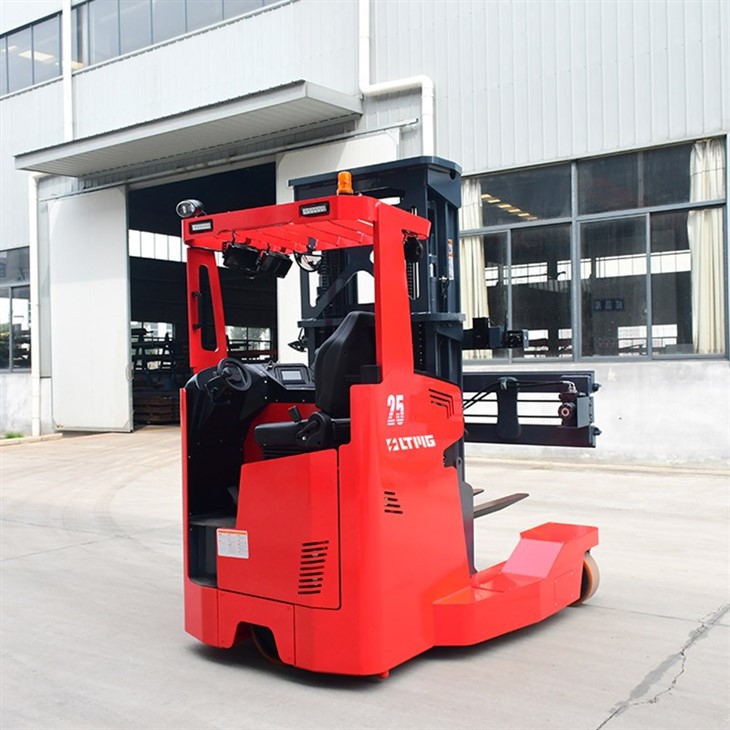

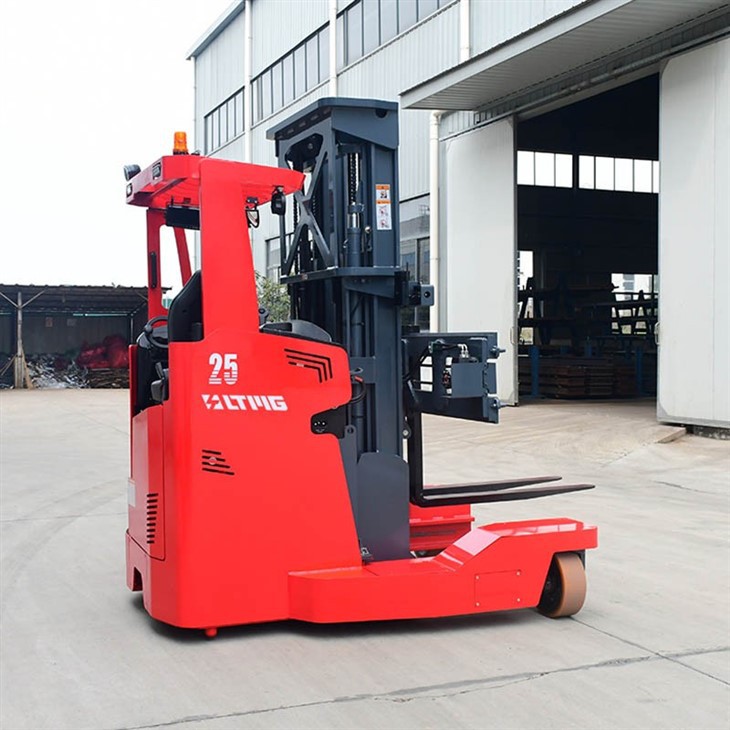

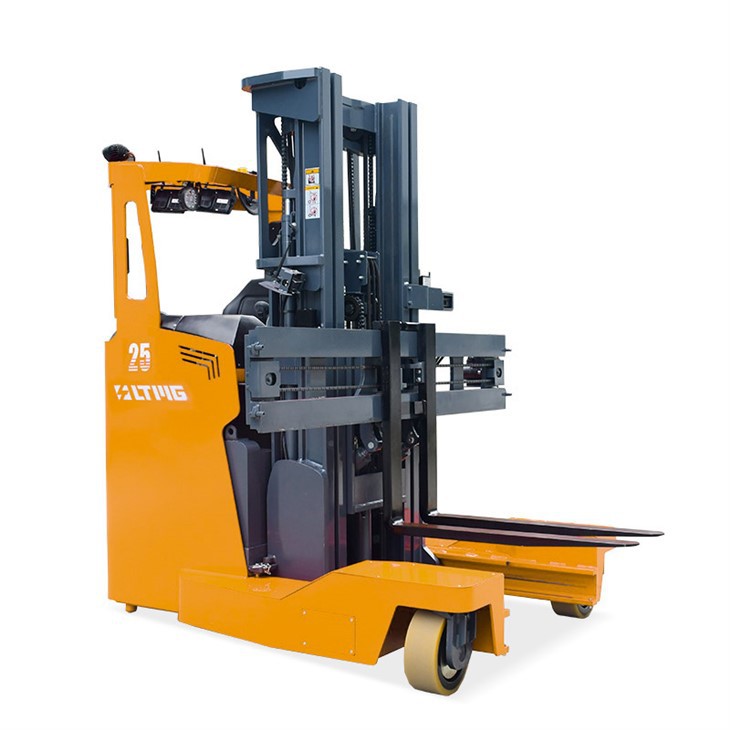

Products Description
The LTMG FRB series of Multi Directional Reach Trucks is designed for efficient handling and precise stacking of materials from 3 to 20 meters long. Rated for loads from 2.5 to 5 tons, they are capable of lifting heights of up to 12 meters.
The unique omni-directional travel mode offers the significant advantage of narrowing the required aisle width, which becomes more pronounced as the length of the material increases. As a result, it is more conducive to maximizing the use of space and significantly increasing the storage capacity.
Key Features of Multi Directional Reach Trucks
- Equipped with multiple driving modes: straight, side, diagonal, and in-place rotation, with quick direction changes and higher efficiency;
- Dual-drive braking, powerful dynamics, and efficient assurance;
- Lateral driving mode, better adapted to the transportation of long materials, saving passage width;
- Four solid rubber tires, higher ground adaptability, indoor/outdoor, fearless.
- High-capacity dedicated battery, powerful, safe and reliable, convenient to charge, long service life, and low maintenance costs;
- Multi-functional operation dashboard, capable of one-click function switching.
Products parameter
|
Brand |
LTMG |
LTMG |
|
|
Model |
FRB30M |
FRB40M |
|
|
Power Type |
Battery |
Battery |
|
|
Operation Type |
Seated |
Seated |
|
|
Service weight(incl. battery) |
kg |
5480 |
7750 |
|
Rated Capacity |
Q(kg) |
3000 |
4000 |
|
Load Center |
C(mm) |
600 |
600 |
|
Lifting height |
h3(mm) |
3000 |
3000 |
|
Forks size |
l/e/s(mm) |
1200/150/50 |
1200/150/50 |
|
Front Overhang |
x(mm) |
305 |
318 |
|
Turning radius |
Wa(mm) |
2000 |
2770 |
|
Max. climbing ability |
%(tanθ ) |
8/10 |
8/10 |
|
Driving speed(load/unload) |
km/h |
7.8/9 |
7.8/9 |
|
Lifting speed(load/unload) |
mm/s |
170/220 |
170/220 |
|
Lowering speed(load/unload) |
mm/s |
130 |
130 |
Products details
Products usage
The LTMG FRQ Multi Directional Reach Truck is specifically designed to address the stacking challenges of materials such as metal, steel structures, plates, and aluminum profiles, which are 3-15 meters long. It effectively avoids the significant waste of warehouse space caused by the length of traditional transportation methods.
Compared to other types of forklifts, the same storage area can increase the storage capacity by 50%. The height of the shelves can be made higher, and the aisles can be made narrower, truly achieving narrow-aisle dense storage.
related products
LTMG is a warehouse equipment manufacturer located in China. We provide a full range of warehouse equipment at reasonable prices to meet customers' different applications.
FAQ
Q: How does the Multi-Directional Reach Truck Seated Type handle narrow aisles?
Q: How easy is it to operate the Multi-Directional Reach Truck Seated Type?
Q: Is the Multi-Directional Reach Truck Seated Type suitable for outdoor use?
