Name: 4 Ton Rough Terrain Telescopic Forklift
Brand: LTMG
SKU: 230006778

Products Description

Telescopic forklifts feature a telescopic boom work attachment and are a type of self-propelled working machinery that combines the functions of forklifts, loaders, aerial work platforms, and small cranes into one, representing a new generation of multifunctional logistics equipment that integrates mechanics, electronics, and hydraulics. Due to their ability to equip with various work attachments to complete a diverse range of tasks, the market demand for telescopic forklifts is growing, especially in European and American countries.

LTMG telescopic forklifts are equipped with environmentally friendly engines that meet Euro 5 and EPA emission standards, offering strong power and energy-saving environmental protection, providing customers with comprehensive green assurance. The hydraulic system utilizes an electro-proportional control valve with a post-compensation load-sensing system, ensuring smooth start and stop, precise flow distribution, stable composite movements, and precise and efficient operation.

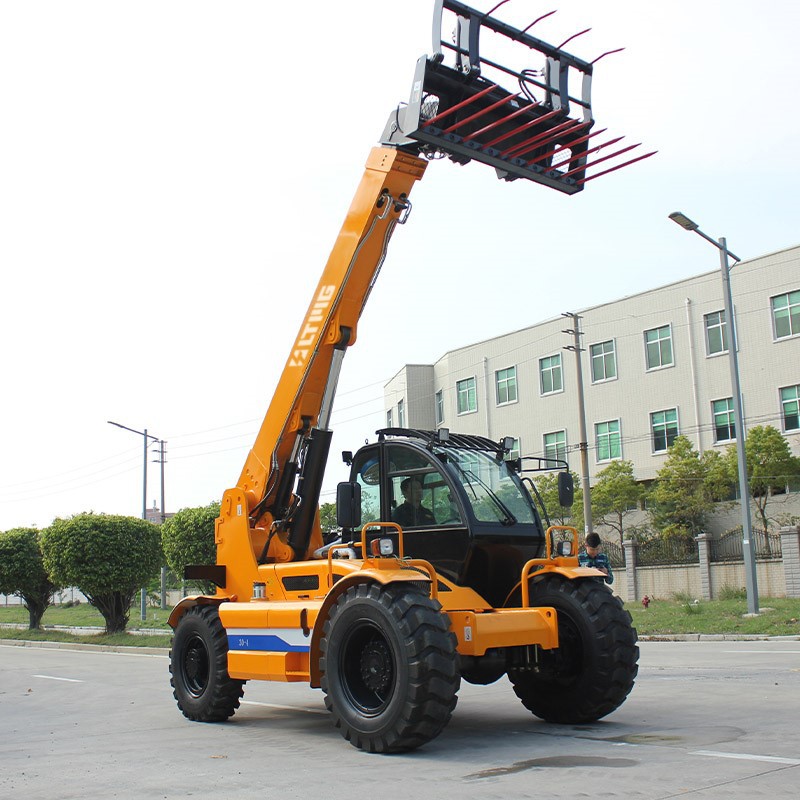

boom reach forklift

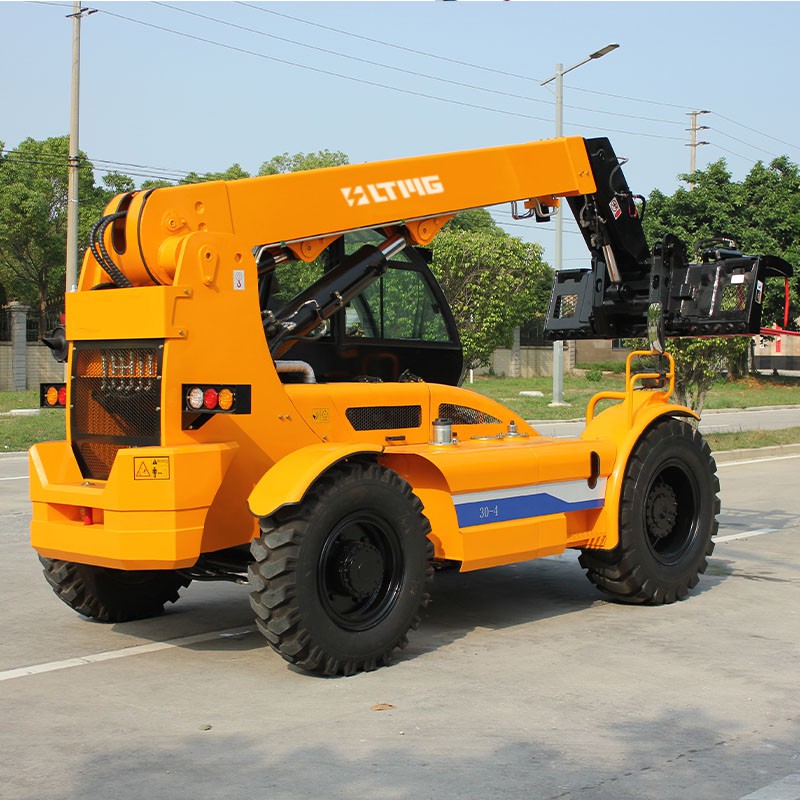

tele handler

Specification

Unit	Deviation allowed	FT40
Unit	Deviation allowed	FT40
Basic parameter	Rated load		kg	-	4000
	Load center		mm	-	500
	Load capacity @ max. Forward reach		kg	-	1800
	Basic boom max. Lifting height		mm	±1.5%	4850
	Max. Lifting height		mm	±1.5%	8000
	Max. Horizontal reach		mm	±1.5%	3350
	Min. Horizontal reach		mm	±1.5%	930
	Min. Ground clearance		mm	±1.5%	400
	Min. Turning radius ( outer tyre center)		mm	≤105%	6200
	Angle	Boom frame upward angle	°	±1.0	60
	Angle	Boom frame downward angle	°	±1.0	11
	Operating weight		kg	±5%	9440
Overall dimension	Length (with fork)		mm	±2%	5730
	Width		mm	±2%	2390
	Height		mm	±2%	2485
	Wheel tread		mm	±1%	1870
	Wheel base		mm	±1%	2700
Rated power / Rated turning speed			kW/rpm	-	60/2000
Driving system	Max. Travelling speed (unloaded)		km/h	±10%	30
Driving system	Gradeability		%	-	≥30%
Tyre	Front (2 pcs)		-	-	16/70-24
Tyre	Rear (2 pcs)		-	-	10.00 -20-16
Engine	Dongfeng Cummins		-	National 2	4BTA3.9-C80II
Engine	Dongfeng Cummins		-	National 3	QSB3.9-C80

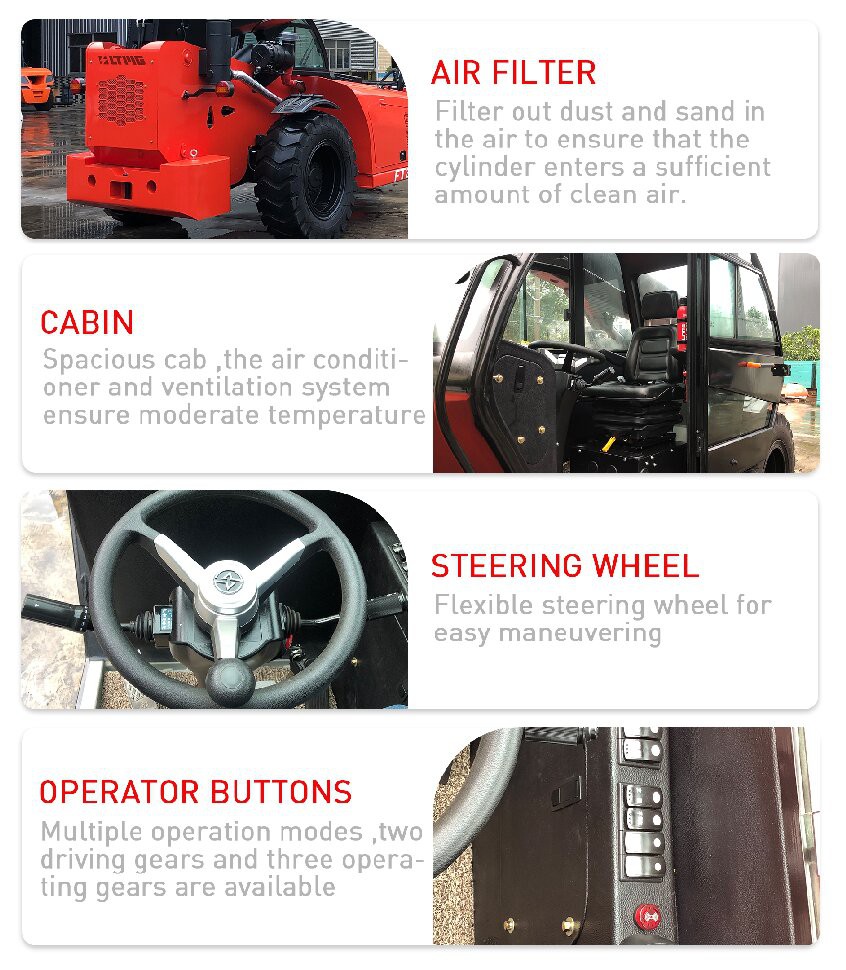

configuration

configuration of telescopic forks forklift

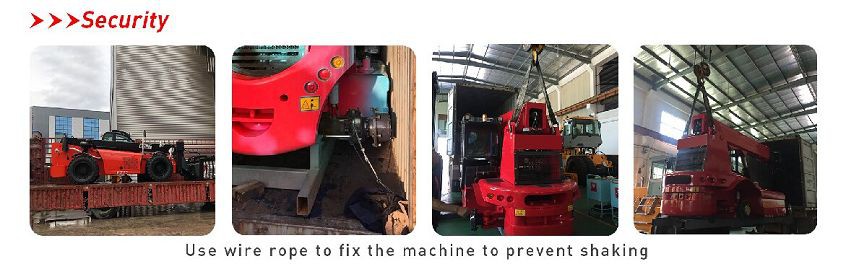

shipping picture

shipping picture of telescopic forks forklift001

FAQ

Q: How does the 4WD system enhance performance on rough terrains?

A: The4WD system provides superior traction on challenging surfaces, ensuring the forklift maintains stability and control. This feature allows the forklift to navigate through mud, gravel, and uneven terrain with ease.

Q: What benefits does the two quadrangle telescopic handle operation provide?

A: The two quadrangle telescopic handles offer operators precise control over the forklift's movements. This intuitive operation installment enhances maneuverability and contributes to efficient and safe handling of loads in diverse working conditions.

Q: Tell me more about the Dongfeng Cummins turbo-charged engine. Why is it a notable feature?

A: The Dongfeng Cummins turbo-charged engine is known for its reliability, power, and fuel efficiency. It ensures consistent performance even in demanding conditions, making the rough terrain telescopic forklift a durable and cost-effective choice.

Q: How does the hydrostatic transmission and pilot control contribute to the forklift's performance?

A: The hydrostatic transmission provides seamless and responsive control, while the pilot control enhances precision in maneuvering. Together, these features allow operators to handle the forklift with accuracy and efficiency, especially when lifting and placing loads.
