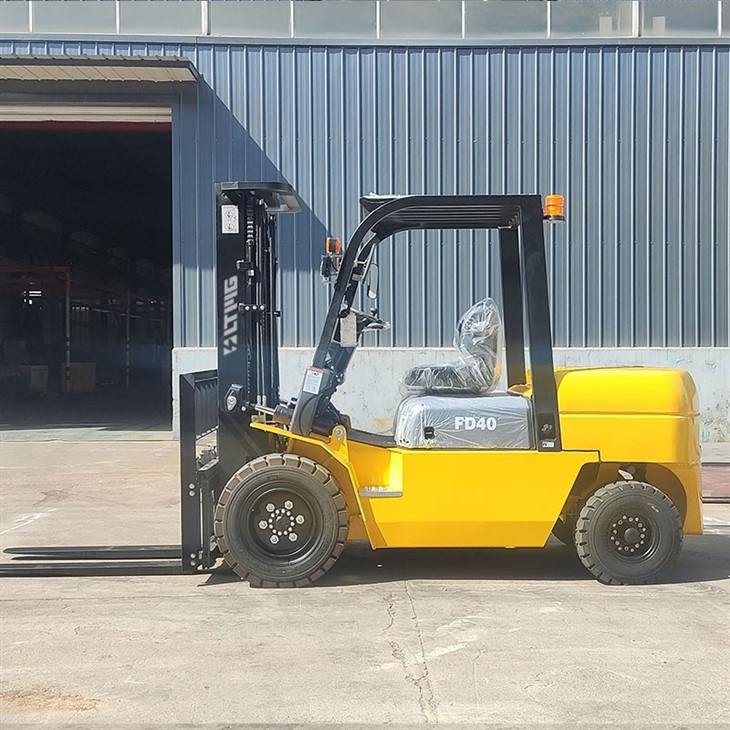

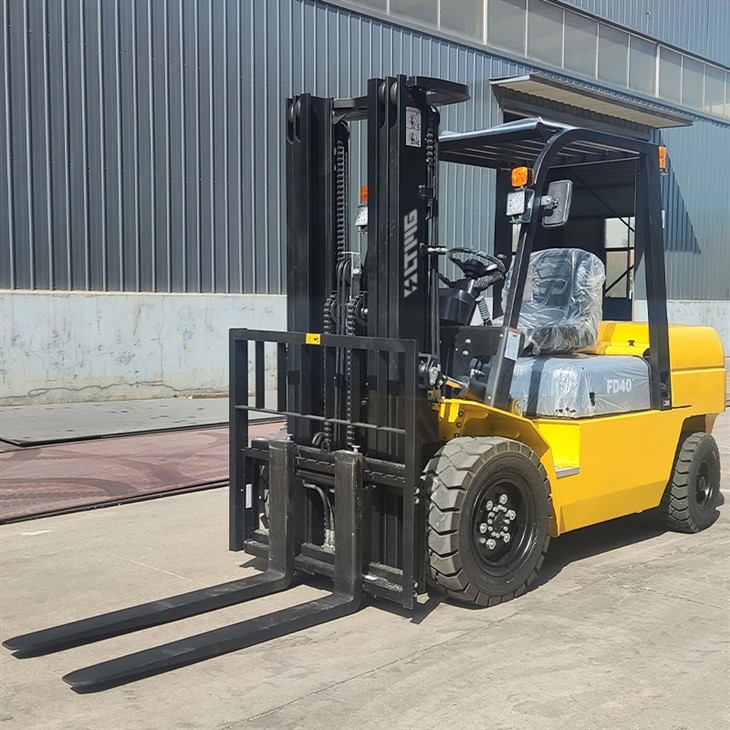

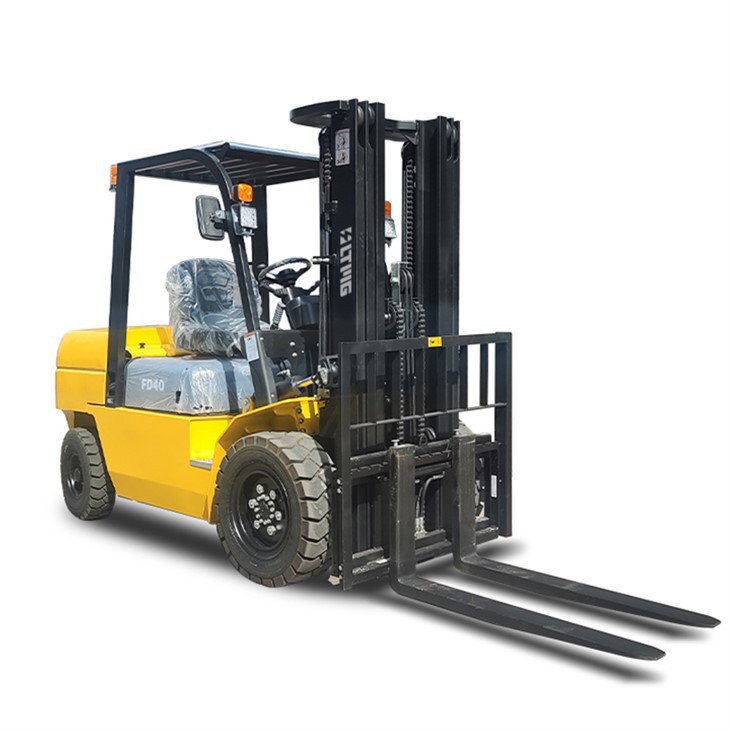

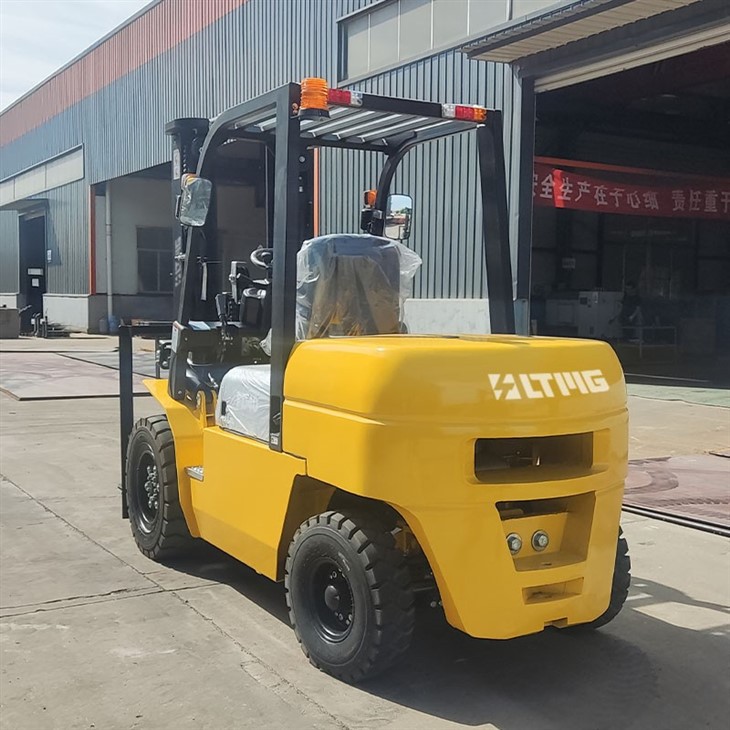

This 4-ton diesel forklift has a beautiful appearance and adopts the latest ergonomic design, which makes it comfortable, safe and efficient to operate. Its technical performance can meet the needs of different domestic and foreign customers. It adopts an adjustable steering wheel and seat, and the reasonable layout of each operating system fully reflects the principle of ergonomics and reduces the labor intensity of the operator. The engine is equipped with a fully floating shock-absorbing device, a steering axle elastic connection, and a low-torque steering gear, which makes it easier to turn in place; the suspended high-strength integral hood with built-in heat and sound insulation materials, and the bottom plate operating space is simple and spacious, which ensures the comfort of the whole machine operation.
Technical Specification
| Model | FD40 | |
| Rated lifting load | kg | 4000 |
| Load center distance | mm | 500 |
| Free lifting height | mm | 150 |
| overall length (Withfork/Withoutfork) | mm | 4000/2930 |
| Width | mm | 1290 |
| Overhead guard height | mm | 2180 |
| Wheelbase | mm | 1900 |
| Minimum ground clearance | mm | 140 |
| Mast tilt angle (front/rear) | % | 6° /12° |
| Tire no. (before) | 250-15-16PR | |
| Tire no. (after) | 7.00-12-12PR | |
| Minimum turning radius (outer side) | mm | 2710 |
| Minimum right angle aisle width | mm | 4750 |
| Fork size | mm | 1070*150*50 |
| maximum working speed(Full-load/No-load) | km/h | 19/19 |
| maximum lifting speed(Full-load/No-load) | mm/s | 340/380 |
| maximum gradeability(Full-load/No-load) | % | 15/20 |
| Forklift weight | kg | 4950 |
| Engine model | Quanchai4C4-50V31 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Shipping plan
In packaging and transportation, LTMG lays stress on detailed and thorough packing techniques to ensure the safe delivery of machines in containers such as utilizing wire ropes to protect the product. Our dedicated team handles each item with utmost care, guaranteeing secure transport and delivery. Moreover, LTMG offers a wide range of comprehensive services to customers, including a complimentary toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even additional machine body paint.
About LTMG

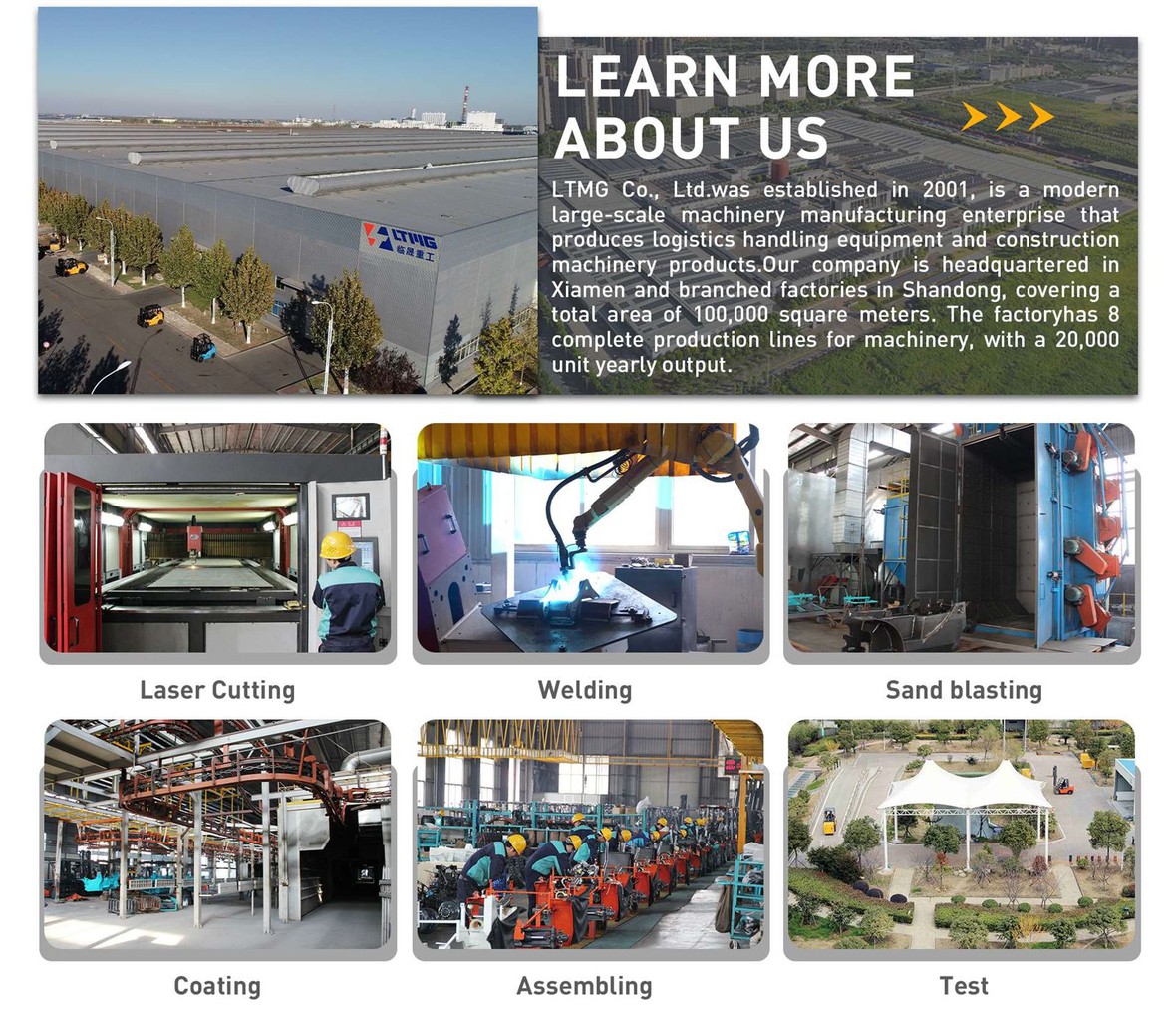

LTMG Machinery Group (LTMG) is a professional manufacturer of material handling equipment and construction machinery equipment established in 2001. Over the past 20 years, LTMG has become an indispensable backbone of the industry in China by deeply cultivating the industry and accumulating technology. Since its establishment, LTMG has insisted on providing exclusive high-quality logistics solutions for its global customers. Currently, LTMG products have been exported to more than 180 countries and have more than 50 agents, forming a perfect sales and after-sales service network around the world.
