Efficient Fuel Consumption: Equipped with a high-quality, turbocharged engine, our machine ensures low oil consumption, making it a cost-effective choice for your operations.
Spacious Operating Space: Designed with operator comfort in mind, the spacious operating space allows for easy maneuverability and reduces operator fatigue during long hours of use.
Ergonomic Joystick Position: The joystick is strategically positioned for optimal ergonomic support, enhancing control and reducing strain on the operator.
Enhanced Pedal Design: Features a larger pedal contact surface for improved stability and ease of use. The long safety rack armrest provides additional comfort and safety.
Wide-Angle Reversing Mirror: The large arc reversing mirror offers a bright and expansive field of vision, ensuring better visibility and safer maneuvering.
Rolling Fork Structure: The forklift's rolling fork structure minimizes resistance during side adjustments, improving the efficiency of load handling and reducing wear and tear.
Technical parameters
| Item | Specification | Unit | |||
| General | 1 | Model | FD420 | ||
| 3 | Power Type/model | Diesel | |||
| 4 | Rated Capacity | Kg | 42000 | ||
| 5 | Load Center | mm | 1250 | ||
| Dimensions | 6 | Lift Height | mm | 4000 | |
| 7 | Fork Size(LxWxT) | mm | 2600×300×130 | ||
| 8 | Fork Spread(outside)(Min./Max) | mm | 910/2830 | ||
| 9 | Mast Tilt Angle(F/R) | deg | 6°/12° | ||
| 10 | Fork Overhang | mm | 1180 | ||
| 11 | Length without forks | mm | 8170 | ||
| 12 | Overall Width | mm | 3600 | ||
| 13 | Mast Lowered Height | mm | 5040 | ||
| 14 | Overhead Guard Height | mm | 3820 | ||
| 15 | Outer turning Radius | mm | 7730 | ||
| Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 17 | Lifting | mm/s | 300 | ||
| 18 | Max.gradeability(Load) | % | 20 | ||
| 19 | Max.drawbar pull(Load) | KN | 240 | ||
| 20 | service Weight | kg | 53000 | ||
| Wheels&Tires | 21 | Tire | Front | 4X18.00-25-28PR | |
| 22 | Rear | 2X16.00-25-28PR | |||
| 23 | Tread | Front | mm | 2495 | |
| 24 | Rear | mm | 2880 | ||
| 25 | Wheelbase | mm | 5500 | ||
| 26 | Ground Clearance(Under mast) | mm | 400 | ||
| Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | VA/h | 2X12/150 |
| 28 | Engine | Model | WP12G375E350 | ||
| 29 | Manufacture | WeiChai | |||
| 30 | Rated Output | Kw | 276 | ||
| 31 | Rated Torque | N.m | 1550 | ||
| 32 | No.Of Cyinder | 6 | |||
| 33 | Bore*stroke | mm | 126x155 | ||
| 34 | Displacement | L | 11.6 | ||
| 35 | Transmissions | Manufacture | ZL80 | ||
| 37 | StageFWD/RVS | 4/4 | |||
| 38 | Operating Pressute | Mpa | 21 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

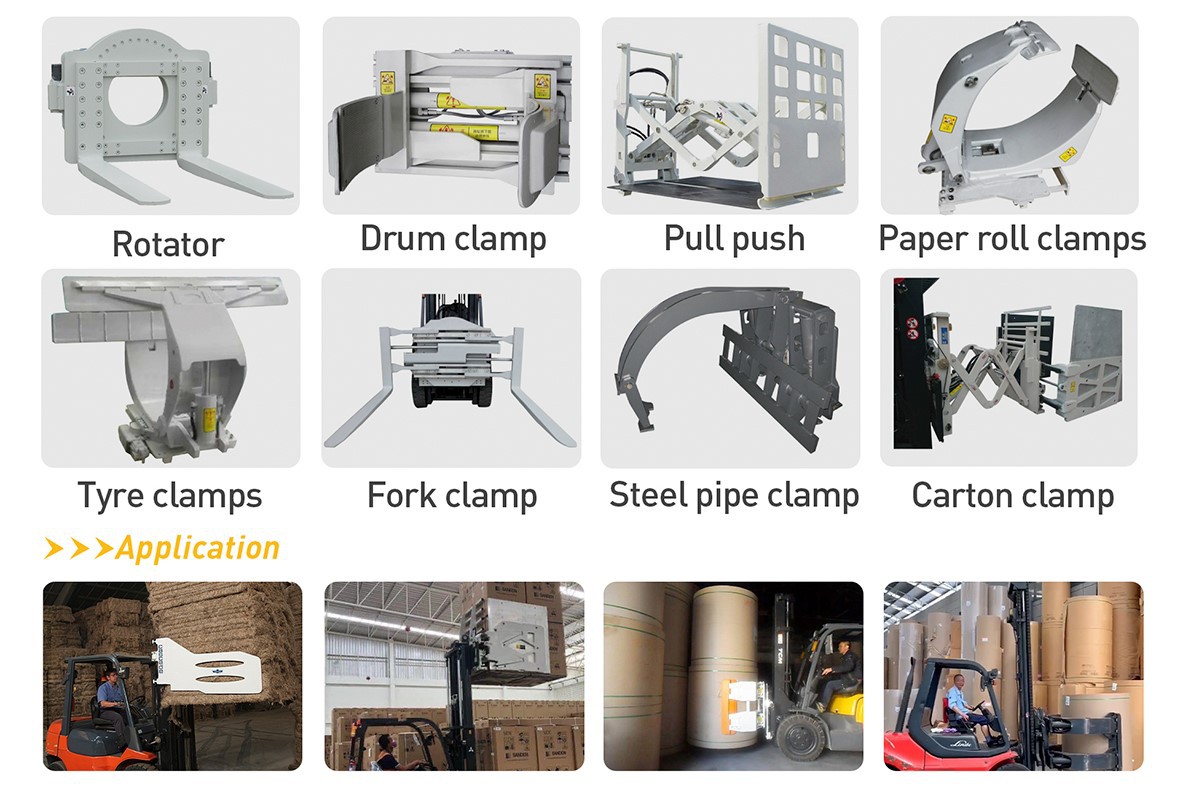

Attachment
