Airport Baggage Tractor

Power Type: Diesel
Max. drawbar pull: 20KN
Truck weight(no load): 3400KG
OEM and ODM Services Available
24/7 Online Customer Support
TT Payment terms: 30% deposit,70% T/T before shipment
Send Inquiry
Chat Now

Product Introduction



Optional Configurations: Tailored to meet various needs, the airport baggage tractor provides a variety of non-compulsory configurations to enhance performance and comfort. Choose from selections such as a windshield, easy riding cab, or sealed cab for delivered safety in opposition to the elements. Stay cozy in any local weather with accessible air conditioning or a warm air blower. Custom-built traction pins ensure compatibility with some baggage carts, whilst a small loading platform presents comfort for the duration of loading and unloading operations. Plus, beautify protection and effectiveness with a monitoring and recording device to tune overall performance metrics.





High-Power Engine Options: Equipped with a high-performance Japanese Yanmar engine as standard, the baggage tractor offers dependable strength for demanding tasks. Additionally, clients have the flexibility to pick from different engine options such as Isuzu and Cummins to suit particular operational requirements.

Original Imported Automatic Transmission: Experience seamless operation with the unique imported hydraulic computerized transmission system. Control car velocity easily using manipulating the accelerator pedal, ensuring clean and environmentally friendly maneuverability on the tarmac.

With its versatility, power, and superior features, our airport baggage tractor is the perfect answer for optimizing baggage management operations at airports of any size. Experience superior performance, comfort, and reliability with our modern-day floor dealing with equipment.

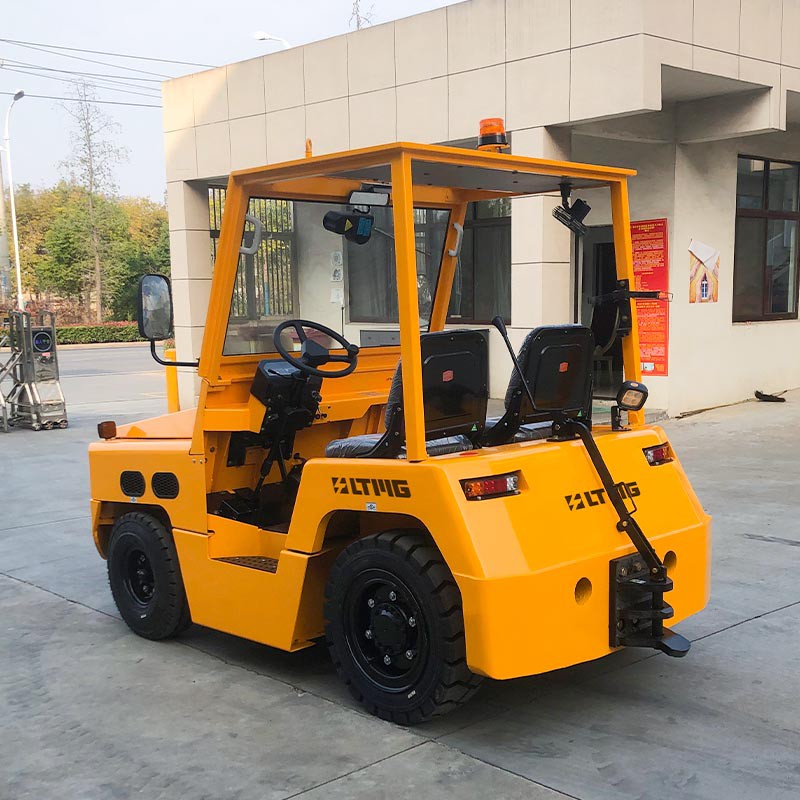

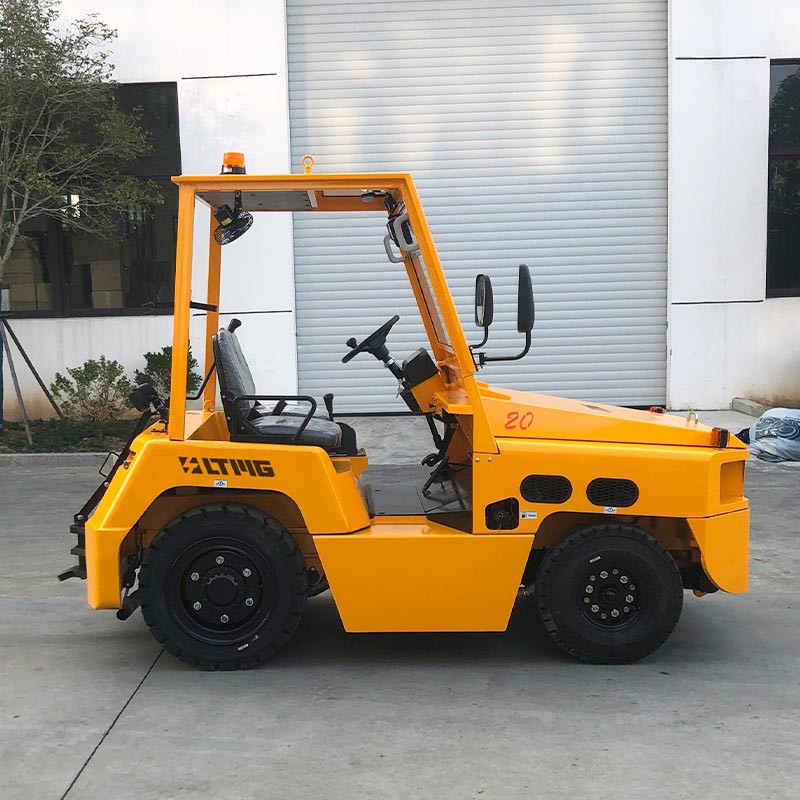

airport baggage towing tractor

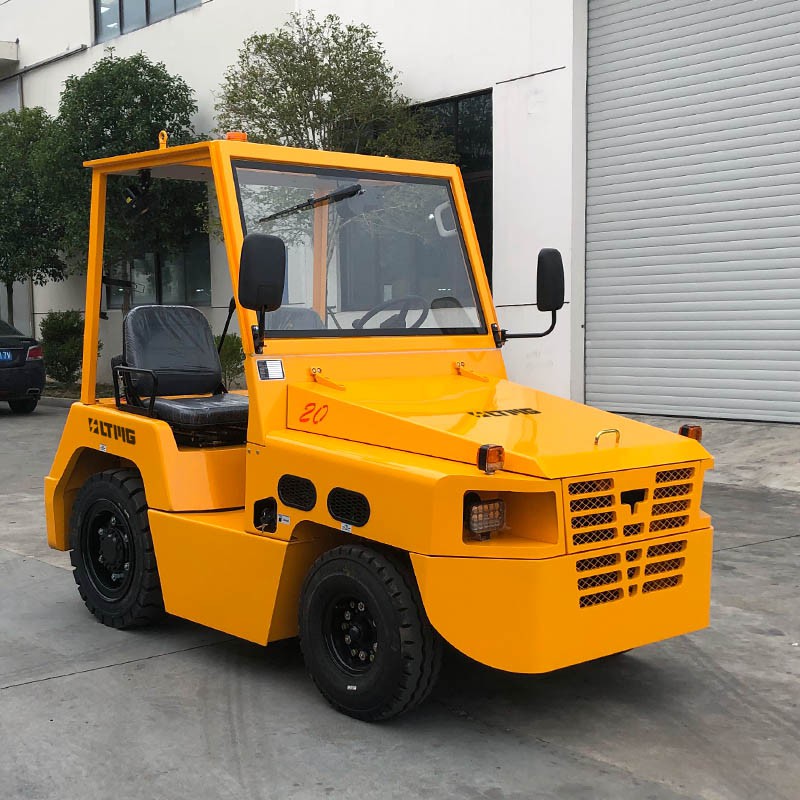

airport baggage tractor



baggage tractor airport


technical parameters



 Model

TD25









Performance



Max. drawbar pull

KN

20

Max. towed weight

With one trailer

Kg

26000


With a train of trailers

Kg

39000

Max. travel speed

Forward

Km/h

30



Backward

Km/h

14

Min. turning radius

mm

2950

Max. gradeability with no load

%

38



Weight



Truck weight(no load)

Kg

3400

Weight distribution

Front

Kg

1190



Rear

Kg

2210













Dimensions

Wheelbase

mm

1600

Wheelbase

Front

mm

1230



Rear

mm

1170

Front overhang

mm

630

Rear overhang

mm

770

Towing bar height

mm

304.8/405

Min. ground clearance

mm

150







Engine

Model

Yanmar98

Displacement

cm³

3319

Rated output

KW/rpm

43.7/2300

Max. torque

N.m/rpm

196.3/1700

Max. speed

rpm

2625







Transmission

Model

Okamura

Gearshift method

Automatic 2 speed

Transmission gear ratio

Forward gear I

2.550



Forward gear 2

1.241



Backward gear 1

2.550





certificates



LTMG certificates





shipping plan



transportation experience



FAQ



Q: Are airport baggage tractors compatible with different types of baggage carts?

A: Yes, airport baggage tractors are designed to be compatible with a wide range of baggage carts commonly used in airport operations. Adjustable hitch heights and custom-built traction pins ensure a secure connection and smooth towing experience with various cart designs.

Q: How are airport baggage tractors powered?

A:  Baggage tractors are typically powered by diesel engines for their high torque output and fuel efficiency. However, some models may offer alternative power sources such as electric or hybrid propulsion systems for reduced emissions and quieter operation.

Q: Are airport baggage tractors easy to operate?

A:  It is designed with operator convenience and ease of use in mind. They typically feature intuitive controls and ergonomic cabins to minimize operator fatigue and maximize efficiency during long shifts.
