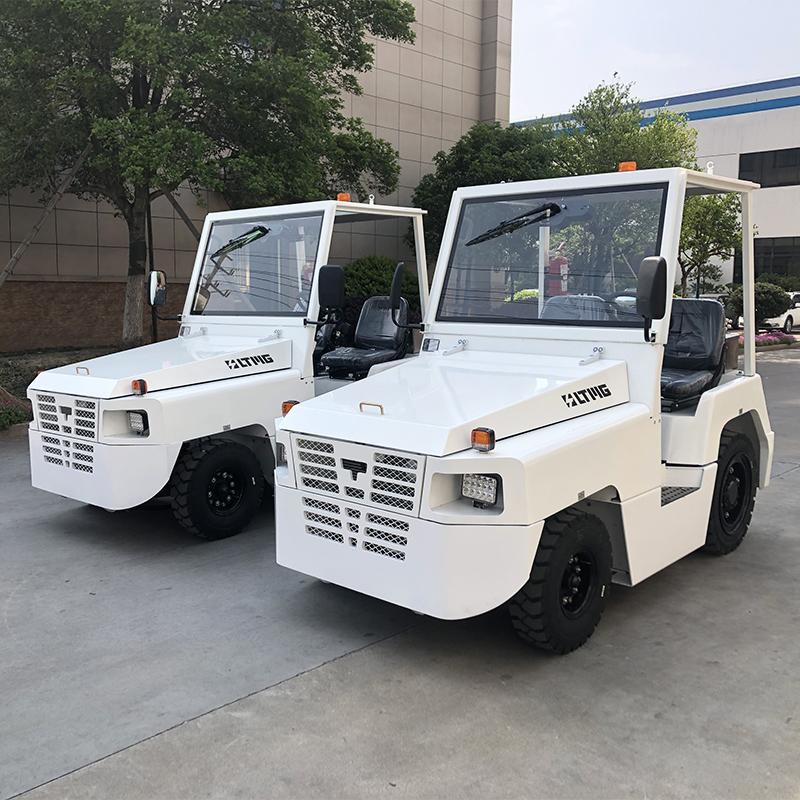

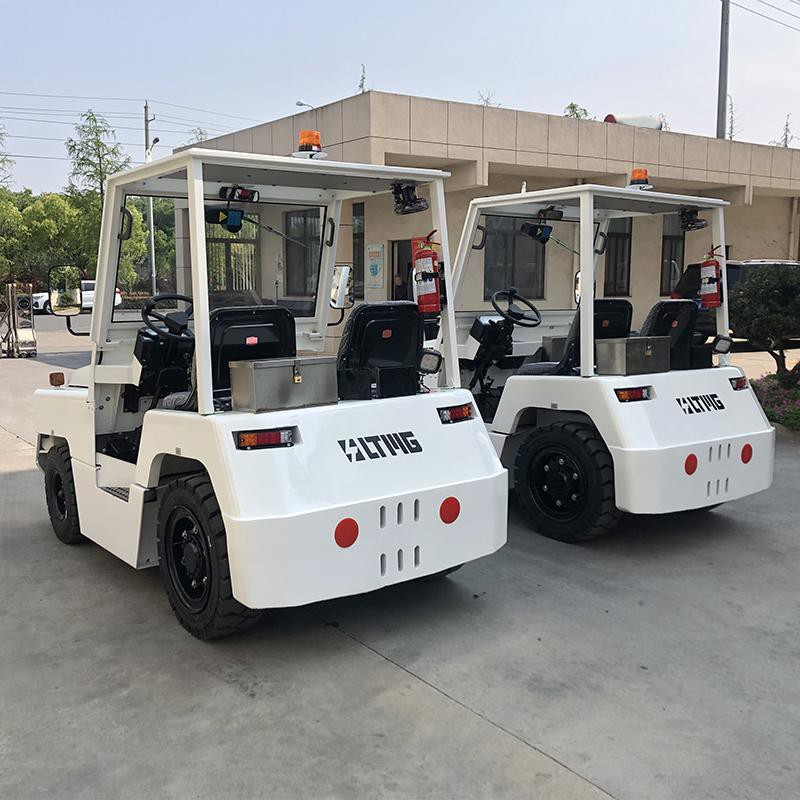

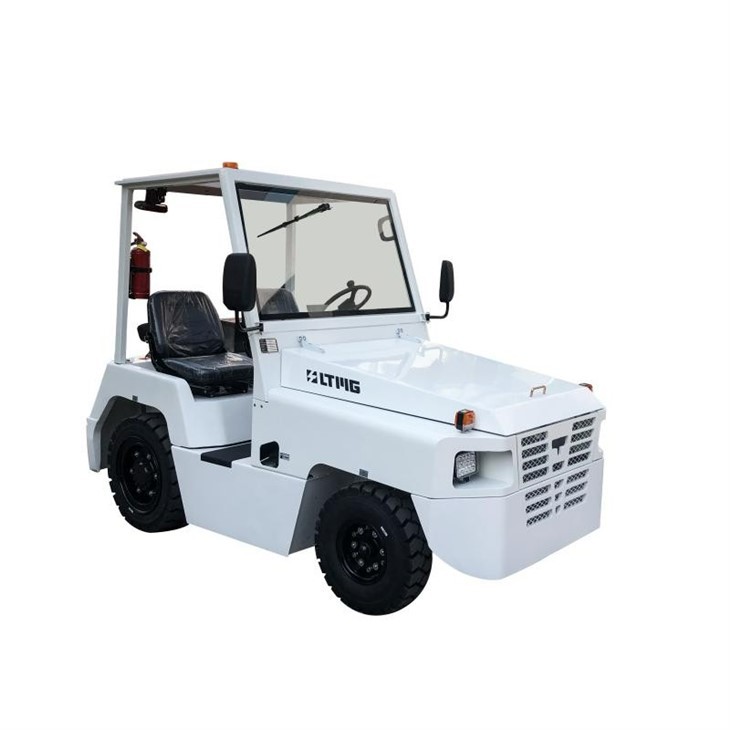

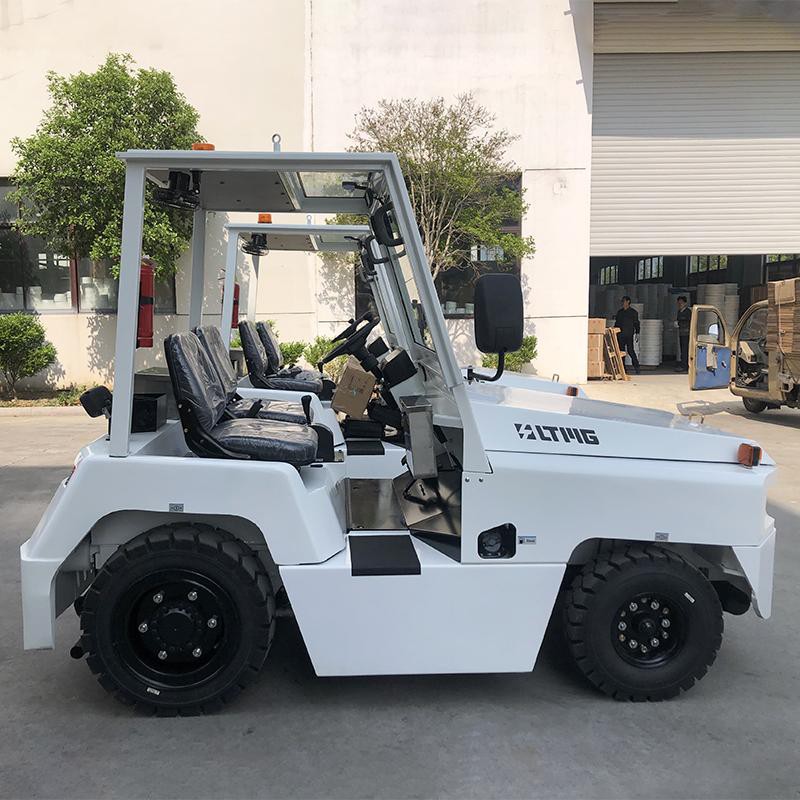

Key features Of TD25 Towing Tractor
1. The spiral spring hydraulic cylinder type absorption system provides a stable and convenient driving and sitting experience.
2. The Yanmar engine and Okamura transmission provide a good power and economic characteristic for the tractor.
3. The hydraulic power re-circulation ball type steering system providing an easy and flexible steering operation with a nice return-ability.
4. Vacuum booster hydraulic dual re-circulation four wheel braking system, reliable and safe.
Contact us for a free quote:
☎️ WhatsApp/Tel/WeChat: +86 13003982560
📩 Email: inquiry@ltmg.com
technical parameters
|
Model |
TD25 |
||||
|
Performance
|
Max. drawbar pull |
KN |
25 |
||
|
Max. towed weight |
With one trailer |
Kg |
32000 |
||
|
With a train of trailers |
Kg |
49000 |
|||
|
Max. travel speed |
Forward |
Km/h |
35 |
||
|
Backward |
Km/h |
14 |
|||
|
Min. turning radius |
mm |
5900 |
|||
|
Max. gradeability with no load |
% |
38 |
|||
|
Weight
|
Truck weight(no load) |
Kg |
3450 |
||
|
Weight distribution |
Front |
Kg |
1120 |
||
|
Rear |
Kg |
2480 |
|||
|
Dimensions |
Outline dimension |
Overall length |
mm |
3025(with towing bar) |
|
|
Overall width |
mm |
1440 |
|||
|
Overall height |
mm |
1450 |
|||
|
Wheelbase |
mm |
1600 |
|||
|
Wheelbase |
Front |
mm |
1230 |
||
|
Rear |
mm |
1170 |
|||
|
Front overhang |
mm |
630 |
|||
|
Rear overhang |
mm |
770 |
|||
|
Towing bar height |
mm |
304.8/405 |
|||
|
Min. ground clearance |
mm |
150 |
|||
|
Engine |
Model |
Yanmar98 |
|||
|
Displacement |
cm³ |
3319 |
|||
|
Rated output |
KW/rpm |
43.7/2300 |
|||
|
Max. torque |
N.m/rpm |
196.3/1700 |
|||
|
Max. speed |
rpm |
2625 |
|||
|
Transmission |
Model |
Okamura |
|||
|
Gearshift method |
Automatic 2 speed |
||||
|
Transmission gear ratio |
Forward gear I |
2.550 |
|||
|
Forward gear 2 |
1.241 |
||||
|
Backward gear 1 |
2.550 |
||||
|
Tire |
Front |
6.50-10 |
|||
|
Rear |
7.00-15 |
||||
|
Brake |
Service brake |
Hydraulic |
|||
|
Parking brake |
Mechanical |
||||
FAQ
Q: What is a baggage towing tractor, and what is its primary function?
Q: How does the hydraulic transmission with an original imported automatic transmission benefit users?
Q: Can the baggage towing tractor be customized to meet specific requirements?
