Products Description

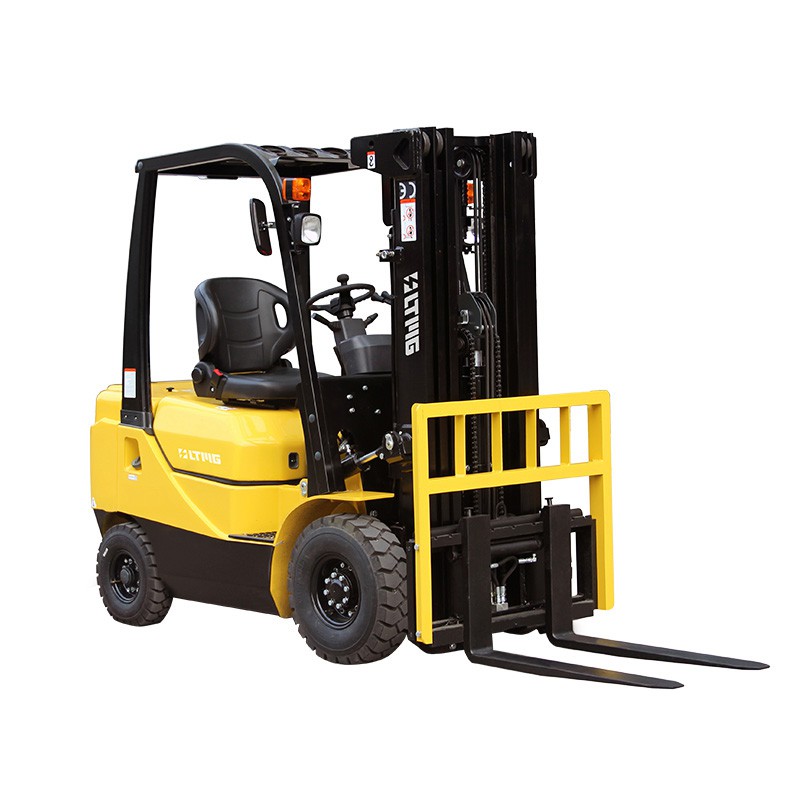

The Diesel Warehouse Forklift offers superior strength and versatility for all your material handling needs in warehouses, manufacturing, and distribution centers. Powered by a fuel-efficient diesel engine, it provides exceptional performance and reliable heavy-load lifting with a smooth hydraulic system. Key safety features include an anti-rollback system and a protective roll cage. Its straightforward design ensures easy maintenance, making it an ideal choice for improved material handling capabilities.

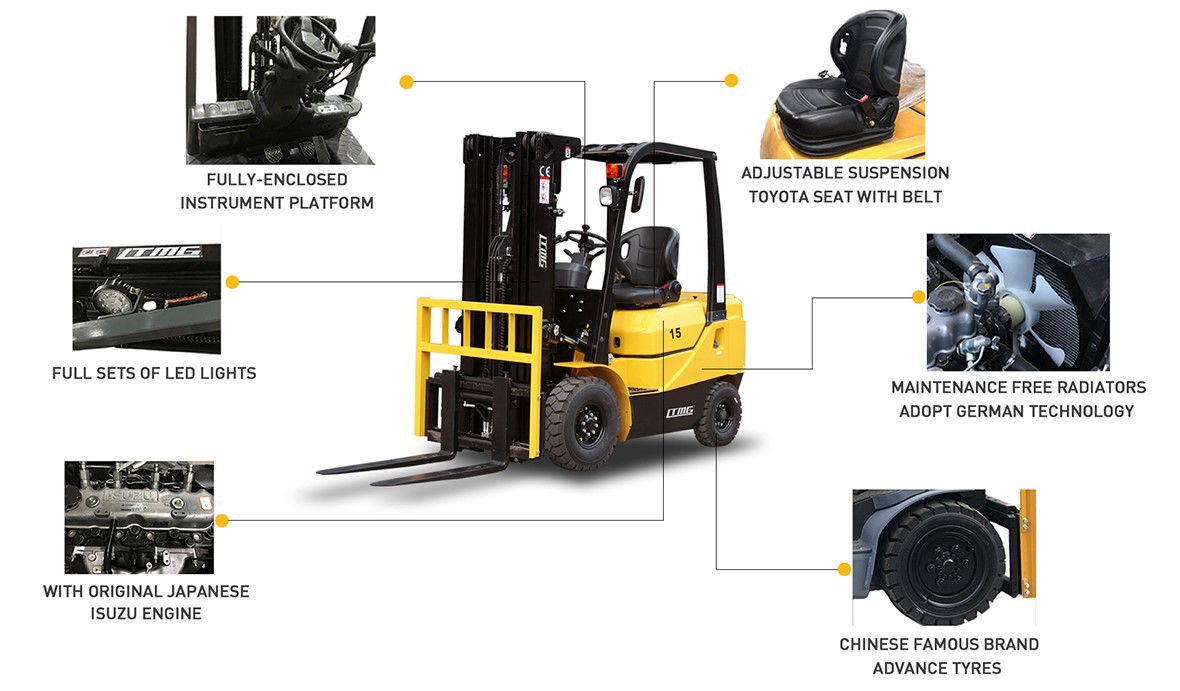

Features

1-305

Products parameter

General	Model			FD15
	Power Type			Diesel
	Rated Capacity		kg	1500
	Load Centre		mm	500
Characteristic&Dimension	Lift Height		mm	3000
	Fork Size	L×W×T	mm	920×120×35
	Mast Tilt Angle	F/R	Deg	6°/12°
	Front Overhang (Wheel center to fork face)		mm	410
	Ground Clearance(Bottom of mast)		mm	110
	Overall Dimension	Length to face of fork(Without fork)	mm	2285
		Overall Width	mm	1086
		Mast Lowered Height	mm	1995
		Mast Extended Height(With backrest)	mm	3940
		Overhead Guard Height	mm	2040
	Turning Radius (outside)		mm	2055
Performance	Speed	Travel (Full load)	km/h	15
	Speed	Lifting (Full load)	mm/s	450
	Max.Gradeability (No load/Full load)		%	20
Chassis	Tire	Front	mm	6.50-10-12PR
	Tire	Rear	mm	5.00-8-10PR
	Wheelbase		mm	1400
	Service weight		kg	2820

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

Products certificates

certificates of diesel forklift trucks

Products customization

customizations of outdoor forklift

related products

related products of new diesel forklift prices

FAQ

Q: How often should the engine oil be changed on a diesel warehouse forklift?

A: Depending on the recommendations of the manufacturer, the engine oil should be changed every 250 to 500 operating hours or every six months. It is always best to consult the operator's manual for specific instructions.

Q: How can I prevent accidental collisions when operating a diesel warehouse forklift?

A: To avoid accidental collisions when operating a diesel warehouse forklift, always drive the forklift at a safe and controlled speed, keep a clear line of sight, utilize backup alarms and spotter signals, and avoid any hazardous environments or obstacles.

Q: What type of maintenance does a diesel warehouse forklift require?

A: Regular maintenance is essential for a diesel warehouse forklift, including daily inspections, cleaning, and lubrication, as well as periodic maintenance such as replacing filters, fluids, and worn-out parts.

Q: What safety measures should I take when refueling a diesel warehouse forklift?

A: When refueling a diesel warehouse forklift, always switch off the engine, allow the fuel to cool down, and use a grounded and spill-proof funnel to prevent any spills or leaks. Additionally, always follow the recommended safety procedures for storing and handling fuel in the warehouse environment.
