Superior configuration
Selecting high-quality Hydraulic Parts for electric forklifts brings about a multitude of benefits that significantly enhance overall performance, reliability, and cost-effectiveness. These premium components play a crucial role in the efficient operation of the lifting, tilting, and steering functions, ultimately contributing to a safer, more productive working environment.Investing in superior Hydraulic Parts for electric forklifts results in enhanced performance, increased durability, reduced maintenance expenses, heightened safety, environmental sustainability, and improved operator comfort. These benefits collectively contribute to a more efficient, cost-effective, and reliable material handling operation, ensuring your business maximizes its return on investment in forklift equipment.High-quality detailed accessories can bring more service upgrades to the product,bring good experience to customers.

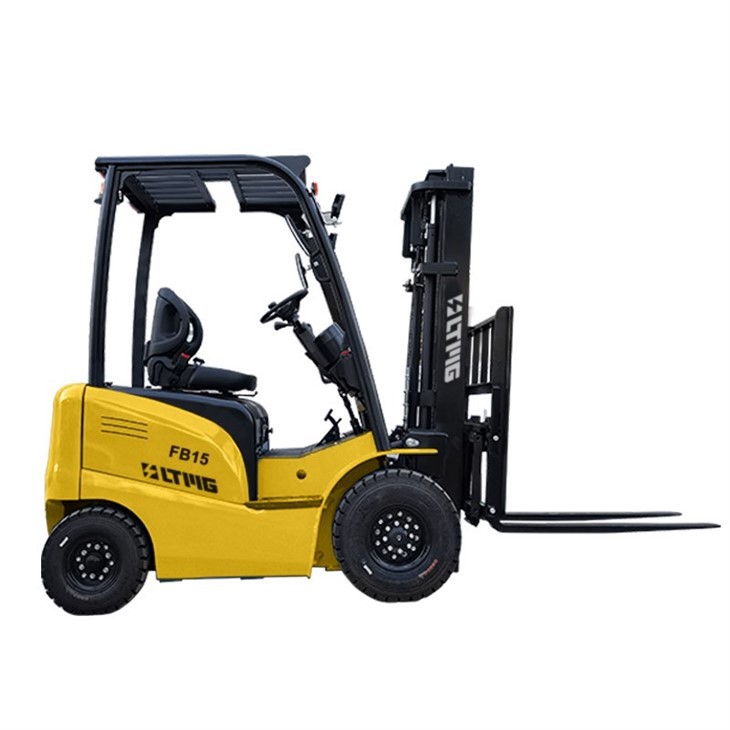

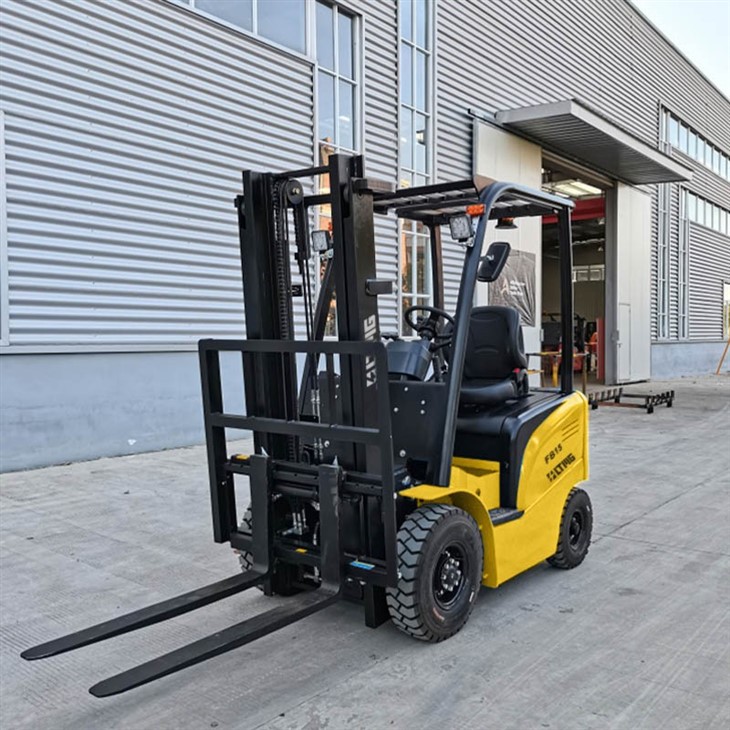

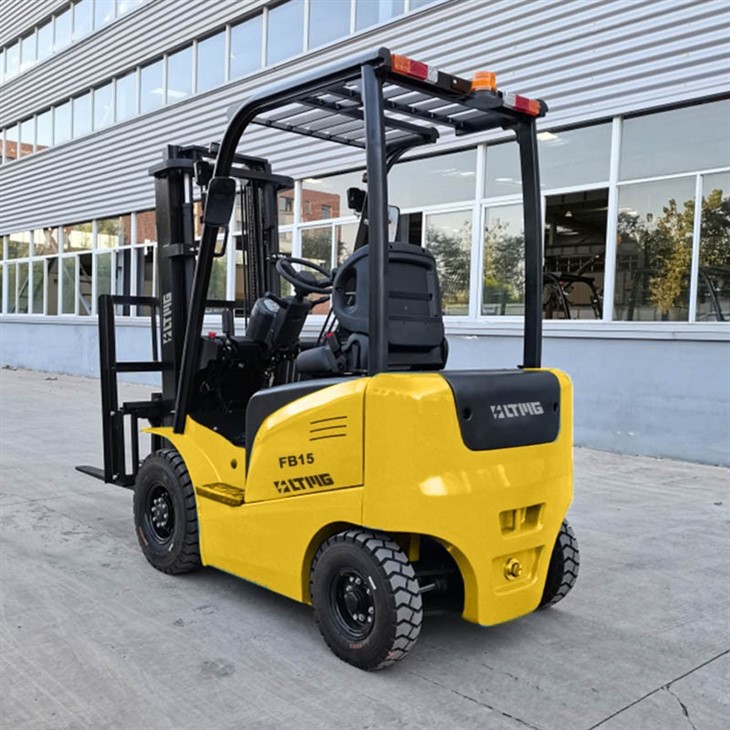

| Model | FB15 | |
| Rated Capacity | kg | 1500 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 920×120×35 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/12 |
| Length to fork face of fork (Without fork) | mm | 2190 |
| Overall Width | mm | 1090 |
| Mast Lowered Height | mm | 1995 |
| Mast Extended Height (With backrest) | mm | 3940 |
| Overhead Guard Height | mm | 2195 |
| Turning Radius (outside) | mm | 2010 |
| Front Overhang (Wheel center to fork face) | mm | 420 |
| Tread (Front/Rear) | mm | 890/920 |
| Ground Clearance (Bottom of mast) | mm | 110 |
| Wheelbase | mm | 1420 |
| Fork Spread (Min./Max) | mm | 240/970 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 320 |
| Max. Gradeability | % | 15 |
| Service Weight | kg | 3070 |
multifunction

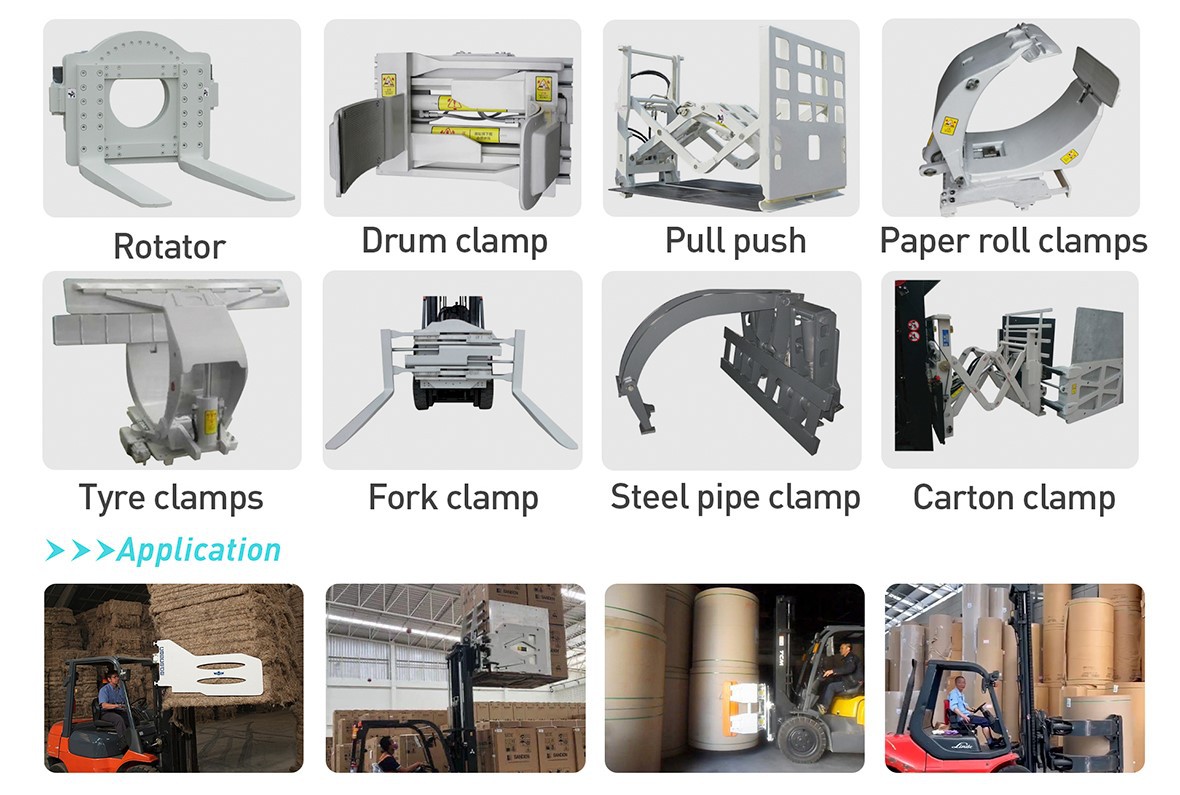

Operator Convenience and Safety: The paper roll clamp is typically controlled via the forklift's hydraulic levers or an integrated control panel, providing operators with easy and precise control over the attachment. This simplifies the handling process and reduces the physical strain associated with manually manipulating heavy rolls. Additionally, the secure clamping mechanism minimizes the risk of accidental roll drops, enhancing workplace safety.Equipping an electric forklift with a paper roll clamp greatly enhances its functionality for handling paper rolls and similar cylindrical goods. The attachment enables secure gripping, rotation, efficient load positioning, damage prevention, and increased productivity, while ensuring operator convenience and safety. This customization transforms the forklift into a specialized tool tailored to the unique demands of the paper industry and related sectors.In addition to paper roll clamp fittings, we have a wide selection of fittings for customers to choose from.
footmark of LTMG
LTMG's products have gained widespread acclaim and secured a strong foothold in over 160 countries and territories worldwide, consistently garnering rave reviews from an international clientele that lauds their exceptional performance, reliability, and value. This global presence testifies to the company's unwavering commitment to engineering excellence, customer satisfaction, and the successful adaptation of its offerings to diverse markets and applications.
Products Description
1. What is your minimum order quantity, can I get a sample?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
2. What's your payment terms?
30% deposit paid by T/T, balance paid by L/C are available, 100%T/T before shipment.
3. How does your company ensure quality control?
We have CE certificates. One Year Warranty and Life-time Technical Support.
4. Do you stock products?
Most of the products are not in stock, the machine will be produced according to your order. However, there are some standardized products in stock, please contact our sales staff for details.
