Products Description

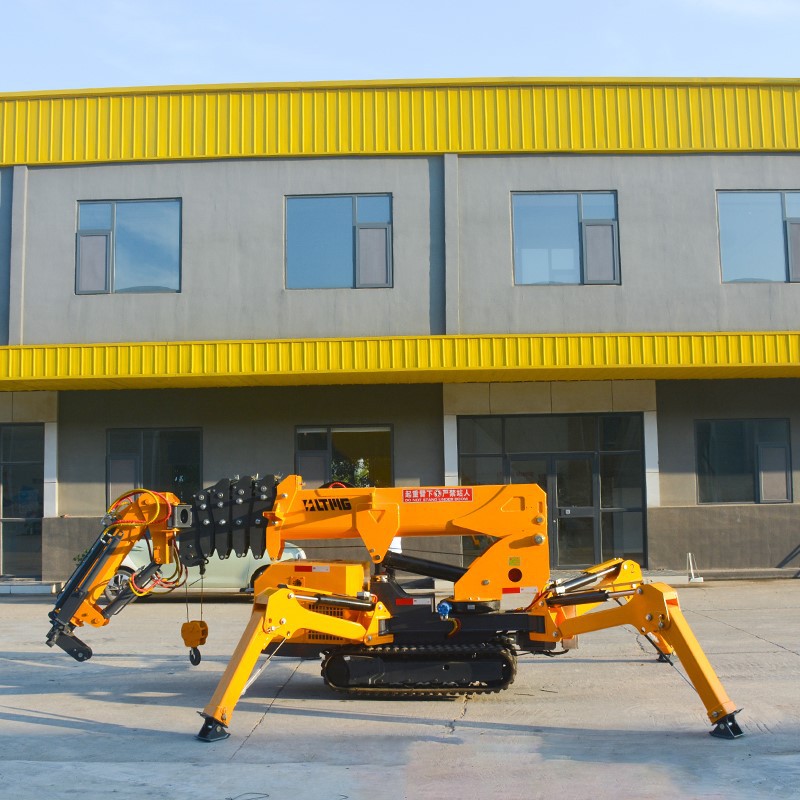

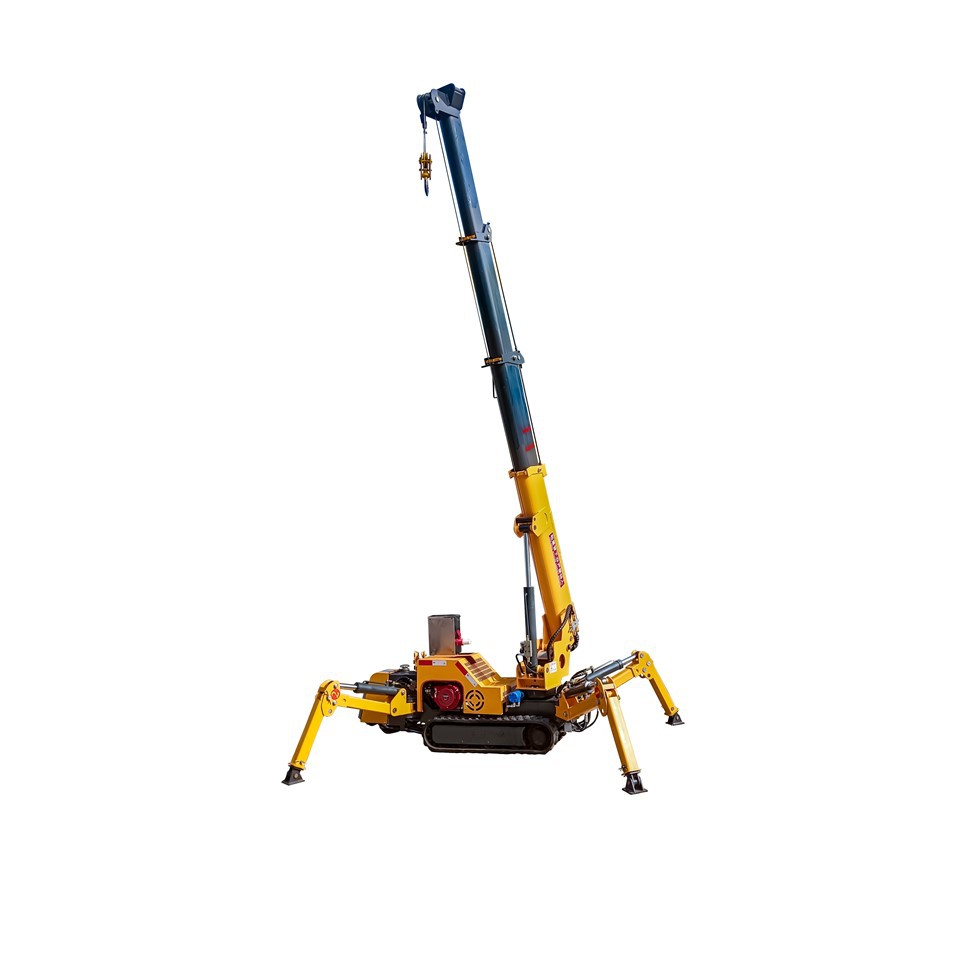

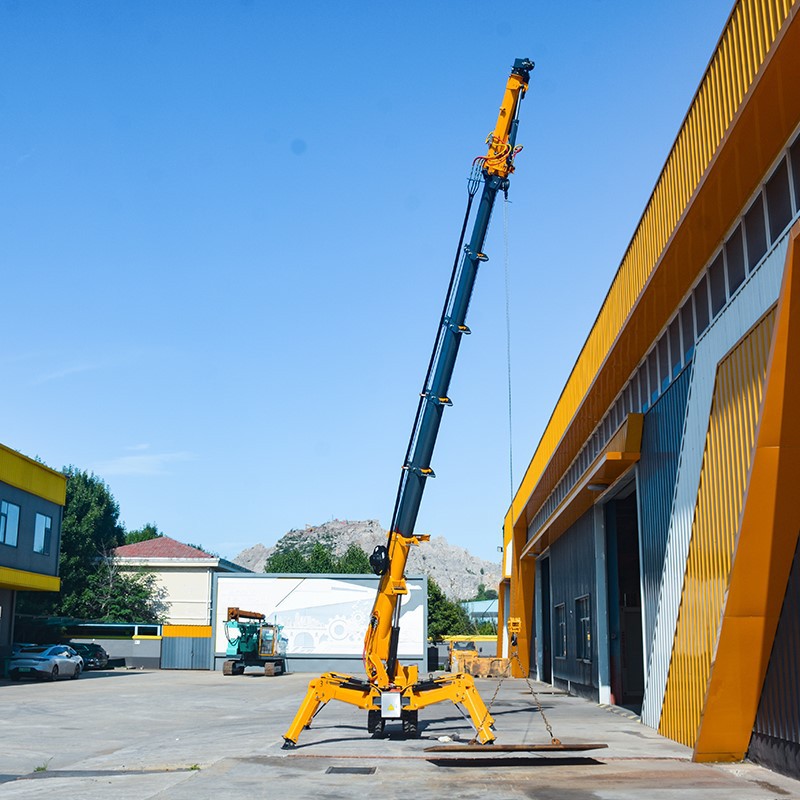

1. The SC15 spider crane adopts diesel engine plus 380V motor dual power, compact structure, good braking performance, start, stop more smoothly
2. Hydraulic motor walking, using engineering rubber tracks, with forklift system brake more sensitive

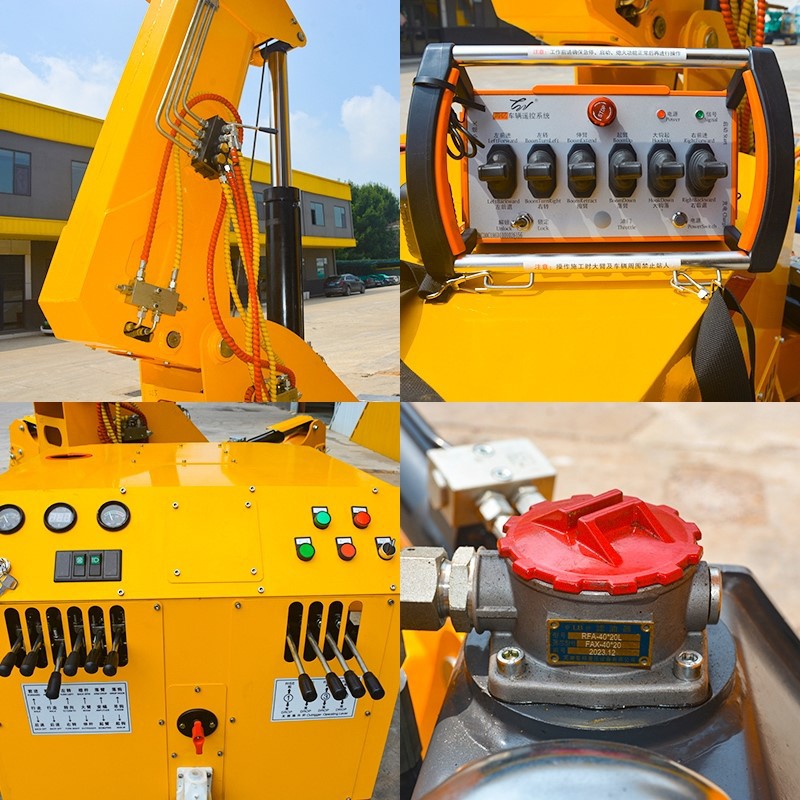

3. Remote control operation (can be manually + can adjust the speed) lifting weight remote control, outrigger remote control, walking remote control.
4. With 4 pick full hydraulic folding outriggers, manual rotation. Hydraulic automatic support, a section of hydraulic leg out a section of manual leg out.
Specifications
|
Ratd load |
1.5t |
|
|
Max. working radius |
5m×0.3t |
|
|
Max. ground lift |
5.8mX0.8t |
|
|
Max. underground lift |
--- |
|
|
Winch |
Hook up speed |
0-8m/min |
|
Wire rope specifications |
Φ8mm×35m |
|
|
Telescopic system |
Boom type |
4-section boom, U-shaped high-strength manganese |
|
Boom length/time |
1.7m-5m/22sec |
|
|
Undulating device |
Boom angle/time |
0-75°/13sec |
|
Gyratory device |
Rotation angle/speed |
0-360°(continuous)/60sec |
|
Outrigger |
Outrigger action form |
Manual unscrewing+ hydraulic automatic support(two legs) |
|
Max. extension (mm) |
3800 (length) X3000 (rear), (front) |
|
|
Walking device |
Way of walking |
Hydraulic motor drive, two -speed |
|
Walking speed |
0-2.5km/h |
|
|
Grade ability |
20°(36%) |
|
|
Motor |
Voltage |
|
|
Engine |
Producer |
gasoline |
|
Type/displacement |
Twin cylinder 5.5 kW |
|
|
Start method |
Electric start |
|
|
Startup performance |
-5℃~40℃ |
|
|
fuel/volume |
Gasoline/8L |
|
|
battery capacity |
12v 45AH |
|
|
Fuel consumption |
274g/kW-h |
|
|
operating system Standard configuration |
Type of operation (jib/outrigger), |
Manual operation,manual walking +remote control (oplional) |
|
manual travel |
Comai hydraulic system (optional) |
|
|
Vehicle size |
Engine power |
|
|
Craftsmanship |
Length 2095*width 600*height 1393 |
|
|
operating system |
Paint assembly process |
|
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail;
