Products Description

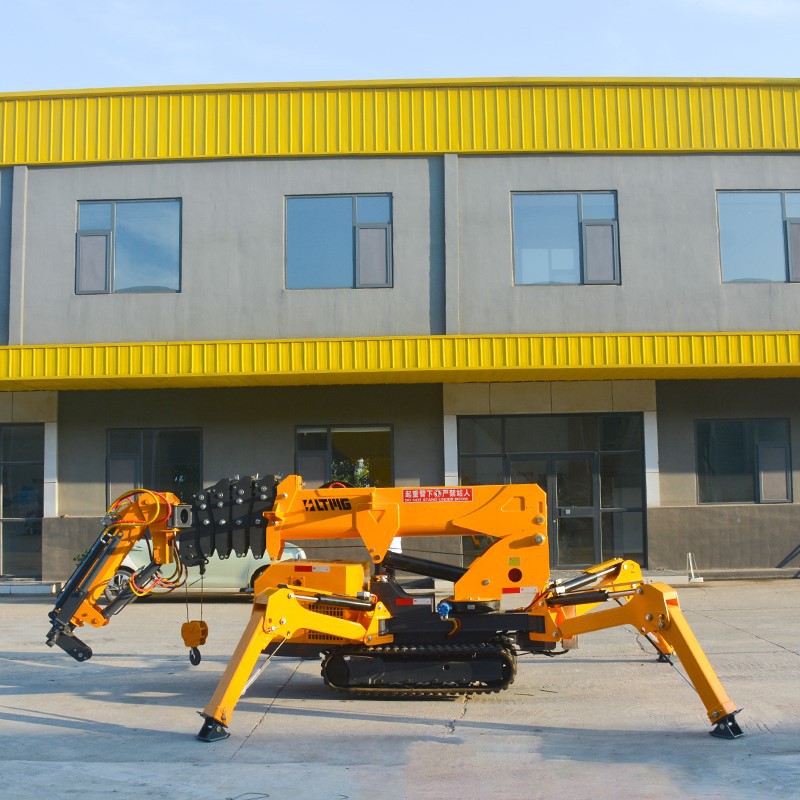

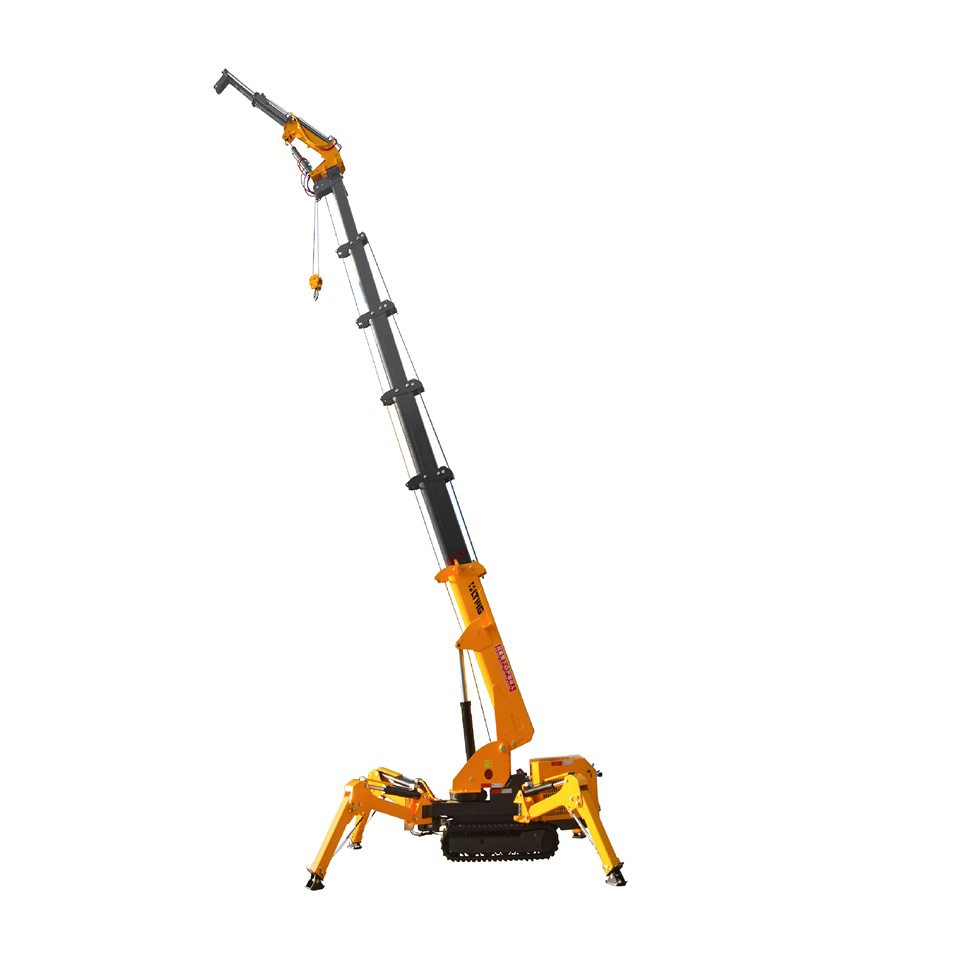

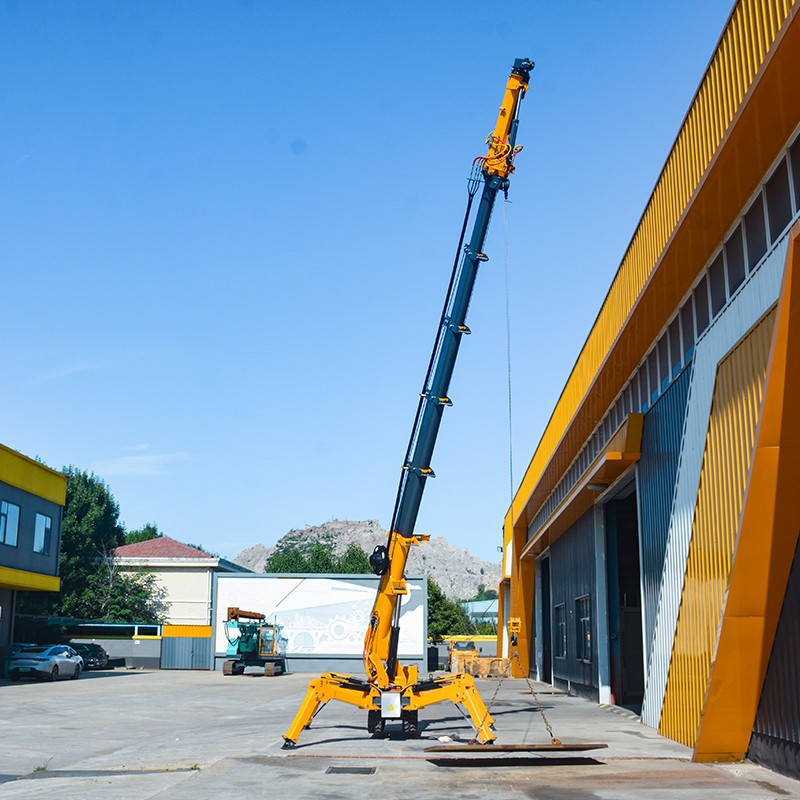

The spider crane is a new type of aerial work equipment, primarily designed to assist users in completing high-altitude tasks. It eliminates the need for hydraulic cranes to occupy transport trucks, as it can move around the construction site on its own. It can even enter tight spaces for indoor lifting
operations, making construction more convenient and feasible.
Track spider cranes have good stability, large load capacity, good anti-slip performance, and low road surface requirements. They can move around the construction site independently and even enter confined spaces for indoor lifting
operations. They are adaptable to any geographical environment and complex weather conditions, making them especially suitable for disaster relief and emergency rescue.
Small spider cranes can be transported via elevators to the upper floors of high-rise buildings for use in the installation of glass frames and other exterior wall work.
specifications
|
rated load |
3t |
|
|
Max. working radius |
8.83m×0.2t |
|
|
Max. ground lift |
9.2mX0.7t |
|
|
Max. underground lift |
10mX1t(4 ropes) 20mX1t(2ropes) 40mX0.74t(1 ropes) |
|
|
Winch |
Hook up speed |
0-8m/min (4 ropes) |
|
Wire rope specifications |
Φ8mm×45m |
|
|
Telescopic system |
Boom type |
5-section boom, U-shaped structure |
|
Boom length/time |
3.1m-9.2m/20sec |
|
|
Undulating device |
Boom angle/time |
0-78°/13sec |
|
Gyratory device |
Rotation angle/speed |
0-360°(succession)/60sec |
|
Outrigger |
Outrigger action form |
Manual unscrewing+ hydraulic automatic support(two legs) |
|
Max. extension (mm) |
4530(L)X4370(R)X3700(F) |
|
|
Walking device |
Way of walking |
Hydraulic motor drive, two -speed |
|
Walking speed |
0-2.5km/h |
|
|
Grade ability |
25°(36%) |
|
|
Motor |
Voltage |
AC380V |
|
Engine |
Producer |
Changchai |
|
Type/displacement |
EV80/F195 |
|
|
Start methoc |
Electric start |
|
|
Startup performance |
-5℃~40℃ |
|
|
fuel/volume |
Diesel/8L |
|
|
battery capacity |
12v 45AH |
|
|
Fuel consumption |
274g/kW-h |
|
|
|
Noise level |
Rated speed ≤81.5dBA (1m) |
|
|
Emission standard |
National II |
|

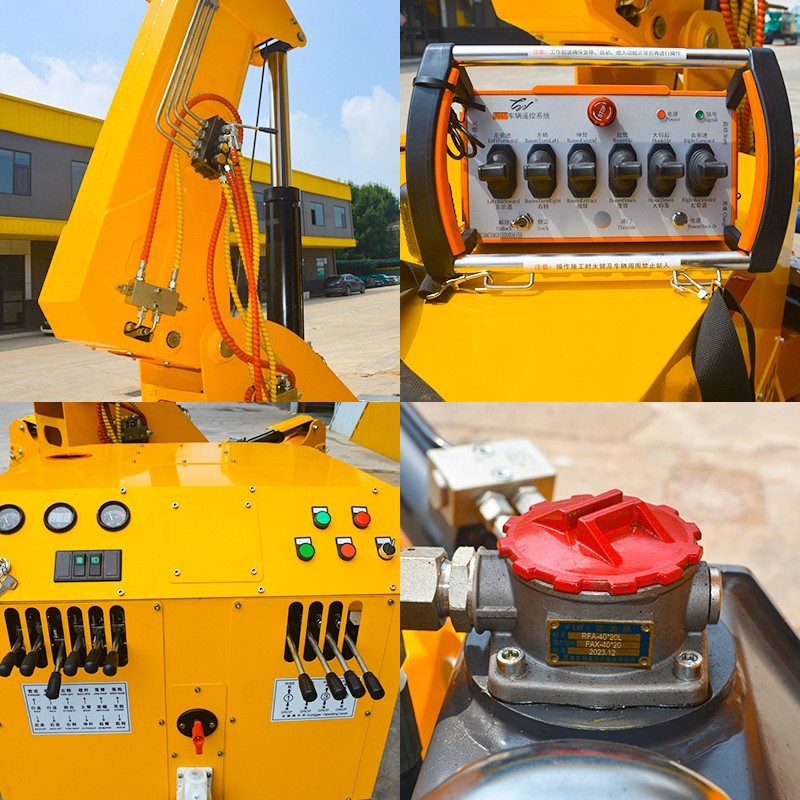

operating system Standard configuration |
Type of operation (jib/outrigger), |
Manual operation,manual walking +remote control (oplional) |
|
manual travel |
Manual operation (remote control optional) |
|
|
Standard Configuration |
Diesel and electric motor (dual power) |
|
|
Length, width, height |
2.98m 0.8m 1.5m |
|
|
Self-weight (T) |
2.35T |
|
|
Crawler |
230(W)72(Pitch)50(Section) |
|
|
Option |
Optional torque controller |
|
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
