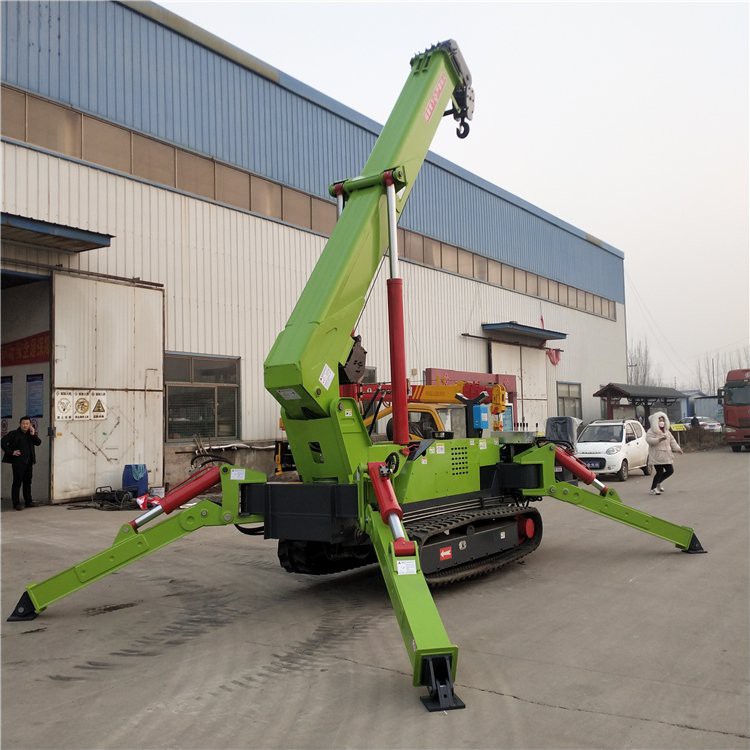

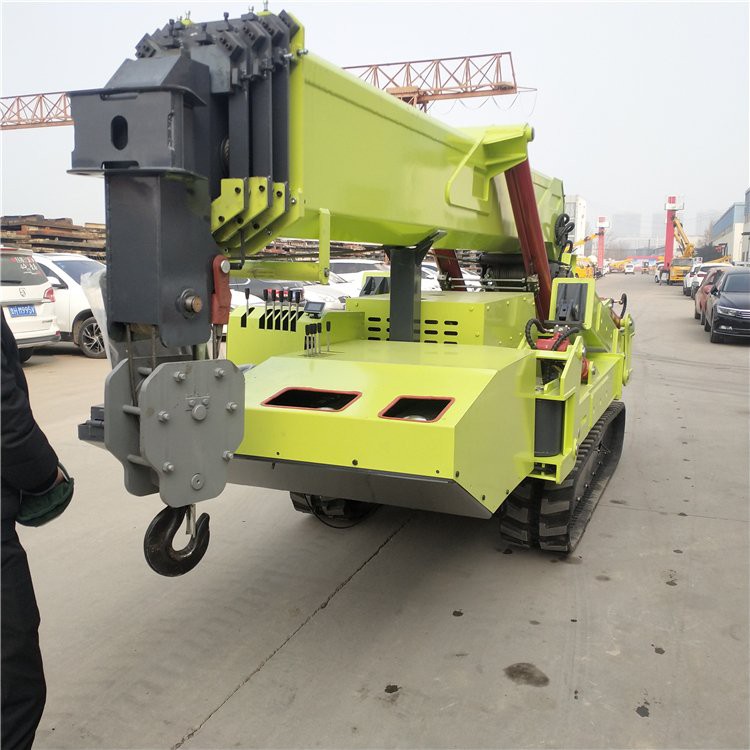

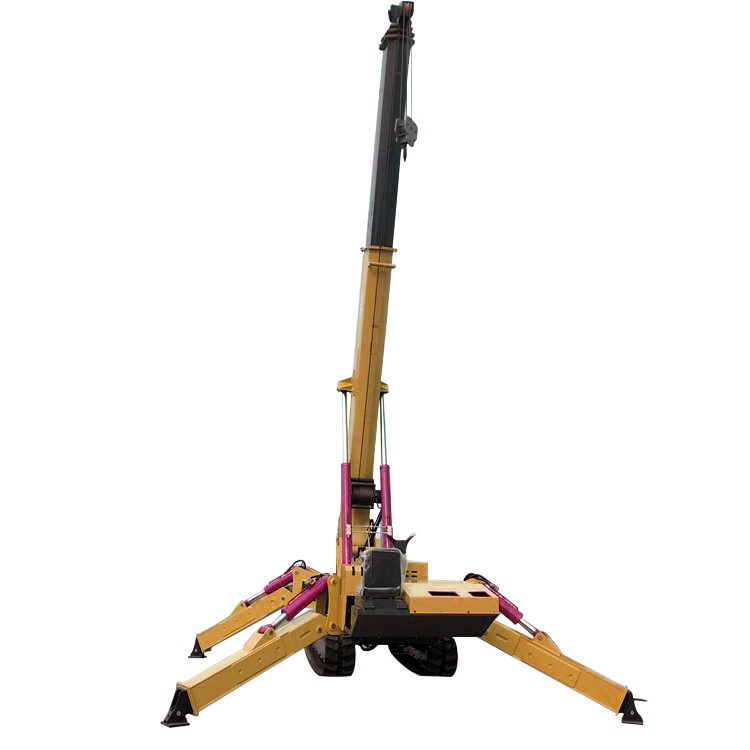

Products Description
1. Advantage: The spider crane has a compact and small design.
2. Features: It has self-propelled capabilities, allowing it to access tight spaces or special work sites where large and medium-sized lifting equipment cannot reach. It can perform safe operations with high lifting capacity and is equipped with remote control devices (miniature spider cranes).
3. Applicable scenarios: Mini Crane is mainly used in industries such as military, firefighting, factories, decoration, logistics, construction, installation, and greening.
specifications
|
rated load |
5t |
|
|
Max. working radius |
14m×0.5t |
|
|
Max. ground lift |
16.8m |
|
|
Max. underground lift |
20.5m |
|
|
Winch |
Hook up speed |
12m/min (4 ropes) |
|
Wire rope specifications |
Φ11mm×80m |
|
|
Telescopic system |
Boom type |
5-section boom, U-shaped structure |
|
Boom length |
4.7m-16.5m |
|
|
Boom length/time |
12.3m/54sec |
|
|
Undulating device |
Boom angle/time |
0-78°/13sec |
|
Gyratory device |
Rotation angle/speed |
0-360°(progression)/38sec |
|
Outrigger |
Outrigger action form |
Manual screw-out + hydraulic telescopic + automatic support (two-section leg) |
|
Max. extension (mm) |
Left&Right(7800)Front&Rear(3600) |
|
|
Walking device |
Way of walking |
Hydraulic motor drive |
|
Walking speed |
0-2.5km/h |
|
|
Grade ability |
25°(36%) |
|
|
Engine |
Producer |
Yunnei |
|
Type/displacement |
490 |
|
|
Start methoc |
Electric start |
|
|
Startup performance |
-5℃~40℃ |
|
|
fuel |
Diesel |
|
|
battery capacity |
12v 45AH |
|
|
operating system Standard configuration |
Type of operation (jib/outrigger), |
Manual operation,manual walking +remote control (oplional) |
|
manual travel |
Manual operation (remote control optional) |
|
|
Size |
Length 5m, width 1.45m, height 1.98m |
|
|
Self-weight (T) |
6200kg |
|
|
Crawler |
2600mm(L) 400mm (W) |
|
|
Option |
Optional torque controller |
|
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQS
Q: Why choose us?
A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
Q: What payment terms can we accept?
A: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
Q: What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q: How about our delivery time?
A: Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: Can we provide OEM service?
A: LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
