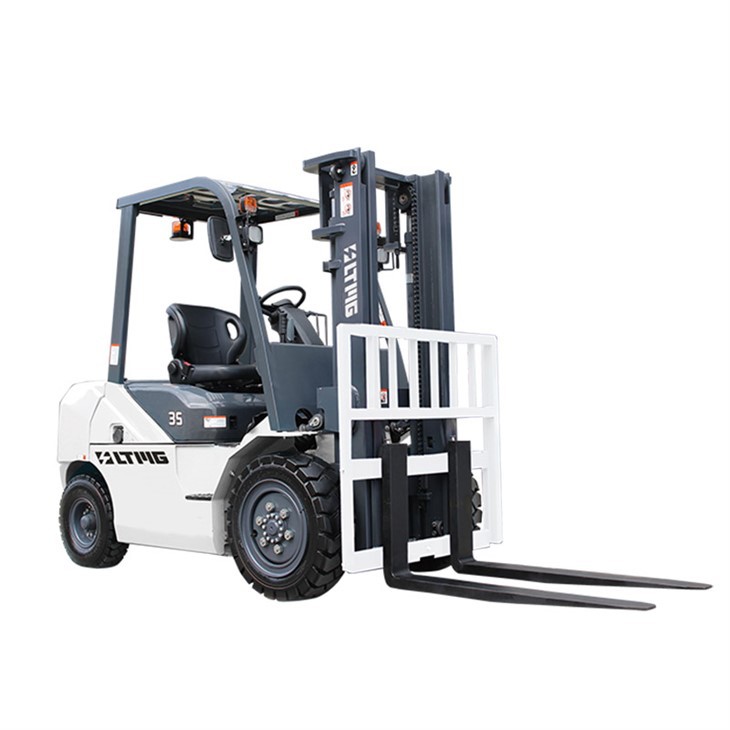

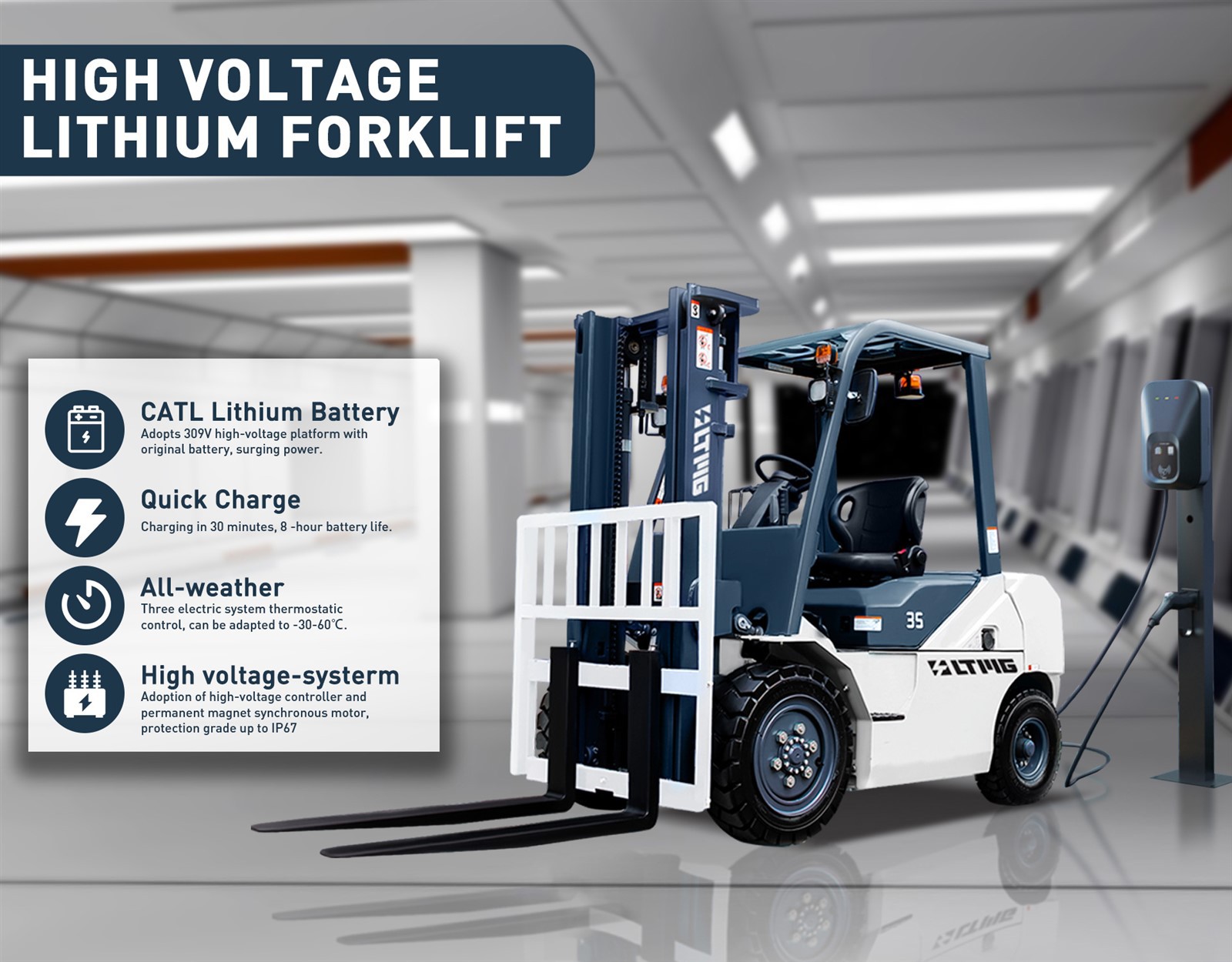

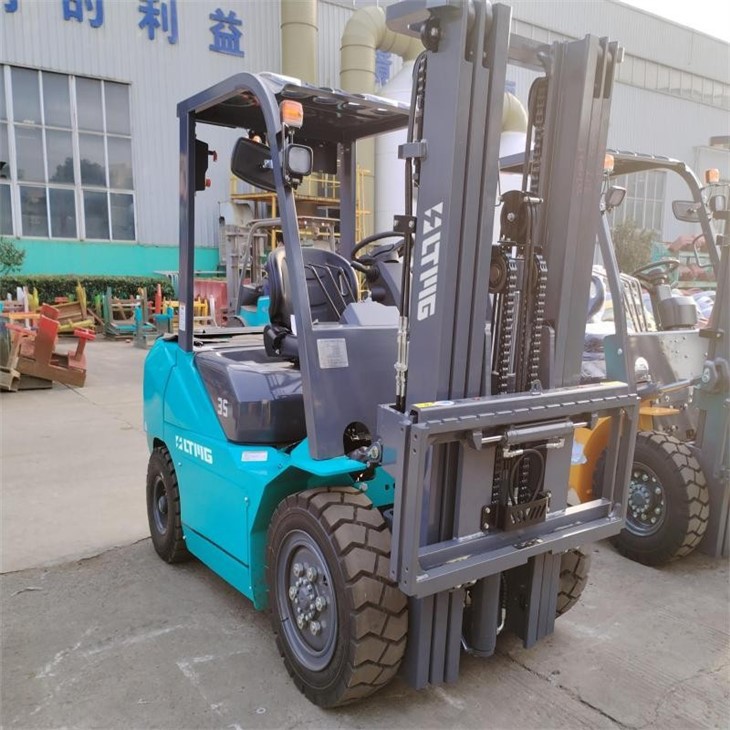

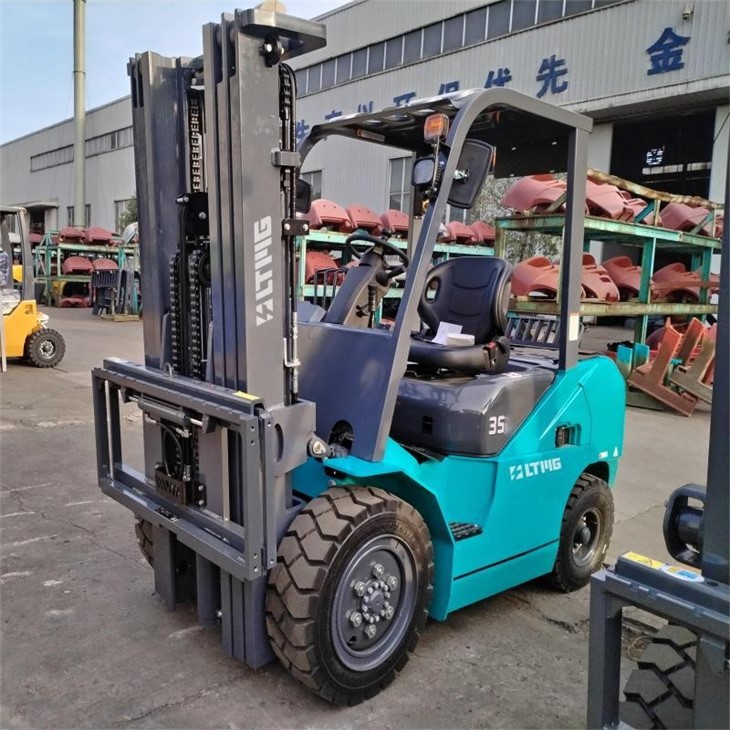

The new 3.5-ton high-voltage lithium battery forklift is a powerhouse of efficiency and innovation designed to bring up your cloth dealing with operations. This forklift is engineered with many tremendous elements to ensure ultimate performance, reliability, and adaptability in a range of work environments.
1. High-Voltage Platform with Original Battery (309V):
Embrace the future of forklift science with our 3.5-ton mannequin that operates on a strong 309V high-voltage platform. This contemporary design, coupled with a unique high-capacity lithium battery, ensures sustained power, longer operational hours, and decreased downtime.
2. Quick Charge Capability:
Say goodbye to extended charging times! The lithium battery forklift boasts an awesome, speedy cost feature, enabling a mere 30 minutes of charging to furnish a full eight hours of non-stop usage. This unparalleled effectiveness permits you to optimize your workflow by way of minimizing charging intervals, improving productivity, and maintaining your operations running seamlessly.
3. Extreme Weather Adaptability:
Conquer the challenges of numerous climates with confidence. This forklift is constructed to face up to excessive climate conditions, ranging from -30°C to 60°C. Whether you are running in bloodless warehouses or hot, warm industrial environments, our forklift ensures steady performance, offering you the versatility needed to excel in any setting.
4. High-Voltage System:
The adoption of a high-voltage device units the electric-powered forklift in terms of power and performance. This superior device not only enhances average effectiveness but additionally contributes to a greater sustainable and eco-friendly operation. Benefit from the strength of excessive voltage, placing new requirements in the world of forklift technology.
Products parameter
| Model | FB35 | |
| Power Type | lithium battery | |
| Rated Capacity | kg | 3500 |
| Load Centre | mm | 500 |
| Service weight | kg | 4800 |
| lyre &Chassis | ||
| Tyre Type(Front/Rear) | pneumatic tire | |
| Wheel numberX=drive wheel (Front/Rear) | 2X/2 | |
| Tyre Size(Front) | 28X9-15-14PR | |
| Tyre Size(Rear) | 6.50-10-10PR | |
| Front Tread | mm | 1000 |
| Rear Tread | mm | 970 |
| Wheelbase | mm | 1700 |
| Size | ||
| Fork Size(L×WxT) | mm | 1070x125x50 |
| Mast Tilt Angle (F/R) | deg | 6/12 |
| Lift Height | mm | 3000 |
| Mast Lowered Height | mm | 2150 |
| Mast Extended Height | mm | 4180 |
| Length to Face of Fork | mm | 2796 |
| Overall Width | mm | 1230 |
| Distance From Roof to Seat | mm | 1020 |
| Front Overhang | mm | 506 |
| Rear Overhang | mm | 610 |
| Turning Radius (outside) | mm | 2495 |
| Ground Clearance | mm | 140 |
| Performance | ||
| Max.Travel Speed (Full load/No load) | km/h | 20/20 |
| Lifting Speed (Full load/No load) | mm/s | 430/440 |
| Lowering Speed (Full load/No load) | mm/s | ≤600/≥300 |
| Max.Gradeability (Full load) | % | 20 |
| Power &Transmissions | ||
| Battery(Type) | LiFePO4 | |
| Battery(Voltage/Capacity) | V/Ah | 309.12/96 |
| Traction Motor Power, S2-60min | Kw | 30 |
| Lifting Motor Power ,S3-15% | Kw | 30 |
| Controller | Full AC | |
| Operating Pressure | Mpa | 18 |
| Hydraulic Oil Tank Capacity | L | 49 |

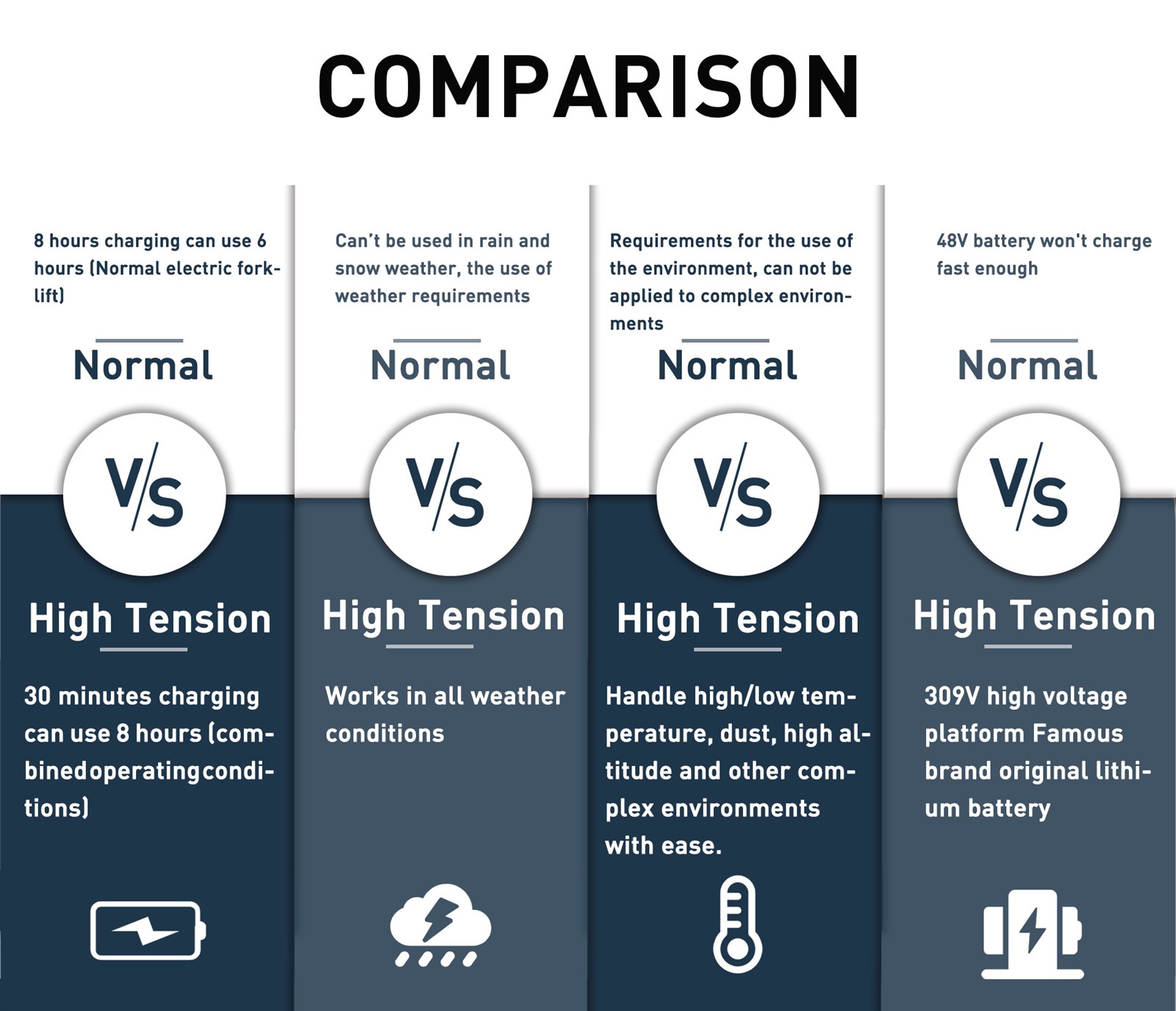

the advantages of High-Voltage Lithium Battery Forklift
FAQ
Q: Can the forklift withstand extreme weather conditions?
A: This forklift is designed to adapt to a wide range of temperatures, from -30°C to 60°C. Whether you're working in freezing cold storage or hot industrial environments, our forklift ensures consistent and reliable performance.
Q: How long does it take to charge the forklift for a full 8 hours of usage?
A: With our quick charge feature, you can achieve a full 8 hours of usage with just 30 minutes of charging. This minimizes downtime and maximizes productivity, making your operations more efficient.
Q: Does the forklift come with a warranty, and what does it cover?
Q: Can the forklift handle different types of loads and terrain?
A: Yes, the forklift is designed to handle a variety of loads and is suitable for various terrains. Its robust construction and high-voltage system contribute to its versatility in handling different materials and navigating diverse working environments.
