Products detail
This electric powered powered forklift with ZAPI controller, with a dedication to sustainability, gives outstanding overall performance whilst prioritizing person convenience.
Environmentally Friendly And Efficient: This electric powered fork truck units the trendy for environmental responsibility, boasting zero emissions, low noise levels, and the absence of heavy metals in its design. With a center of attention on sustainability, it aligns with cutting-edge environmental standards.
Long-Lasting Lithium Battery: The battery forklift is geared up with a high-performance lithium battery that can preserve over 75% of its potential even after an fantastic 4000 cost cycles. With an industry-leading 5-year or 10,000-hour prolonged warranty, our lithium battery units new benchmarks for durability and reliability in electric powered forklift technology.
Adaptability To Extreme Temperatures: Designed to excel in numerous working conditions, this transportable electric powered forklift prospers in excessive and low-temperature environments, running seamlessly in temperatures ranging from -25°C to 55°C. The overall performance of its lithium battery surpasses that of regular lead-acid batteries in severe temperature conditions.
Safety First: The eletric strength forklift prioritizes protection with a multi-node security closed-loop safety system. This state-of-the-art gadget ensures real-time closed-loop safety in a range of car states, presenting a full-system emergency power-off function. This permits swift disconnection of the car manage device and BMS power, making sure security and effectiveness.
Efficiency And Energy Conservation: Charging this electric powered forklift is a breeze, with the potential to attain full cost in simply one hour. Its excessive power density and low self-discharge fee of much less than 1% per month make a contribution to its extraordinary cost and discharge performance, making it an environment friendly and energy-saving choice.
Convenient Charging With Extended Battery Life: The electric powered powered forklift with ZAPI controller provides the flexibility of on-the-go charging, permitting for handy and handy operations barring compromising the battery's lifespan.

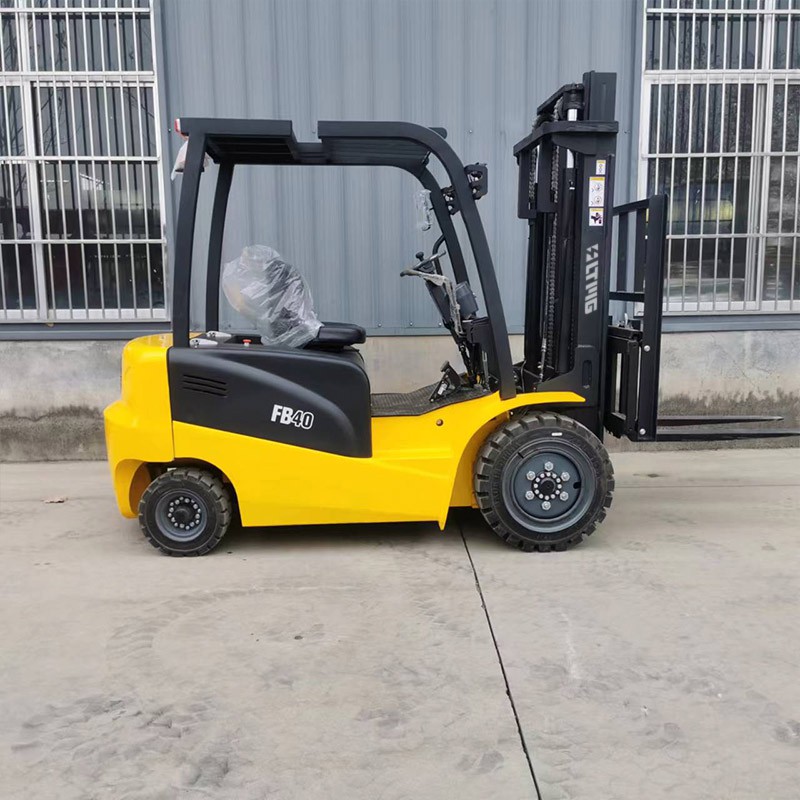

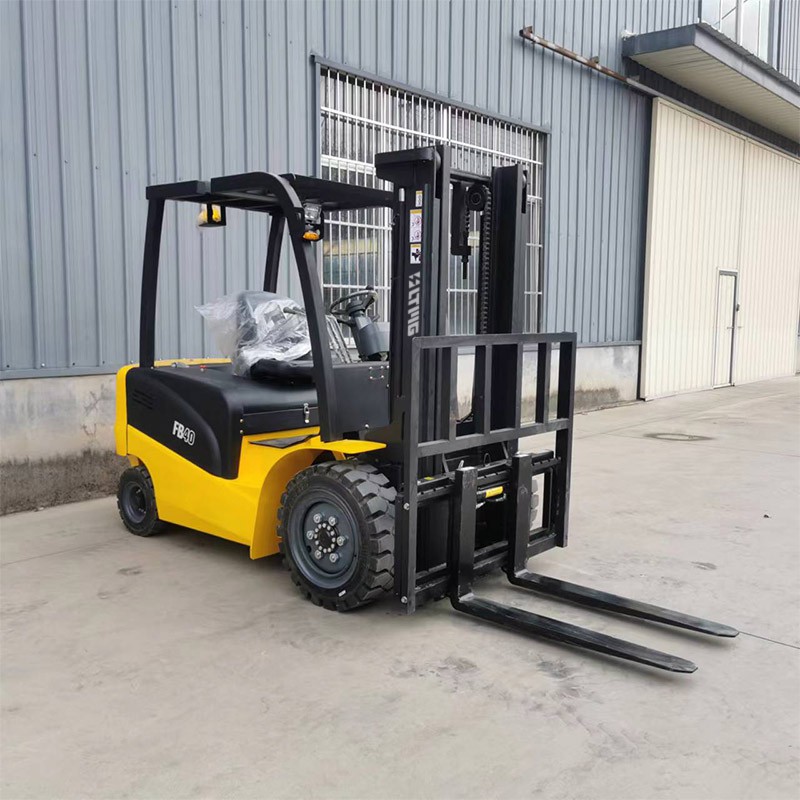

4 ton electric forklift specifications
| Model | FB40 | |
| Power type | electric | |
| Rated capacity | 4000 | |
| Load center | 500 | |
| Tire type | Solid tire | |
| Quantity of wheels | 2 X /2 | |
| Tires Size | 250-15/23×10-12 | |
| Tilting Angles | α/β(°) | 6/10 |
| Height of mast | mm | 2185 |
| Max.lift height of mast | mm | 4170 |
| Free lift height | mm | 150 |
| Max.lift height of fork | mm | 3000 |
| Front-wheel Overhead | mm | 2100 |
| Length(without fork) | mm | 2985 |
| Front overhang | mm | 565 |
| Rear overhang | mm | 420 |
| Wheelbase | mm | 2000 |
| Min.ground clearance | mm | 110 |
| Tread(front/rear) | mm | 1150/1175 |
| Overall width | mm | 1480 |
| Fork size | mm | 1070x150x50 |
| Minimum right Angle stacking channel width | mm | 4630 |
| Min mum urn radius | mm | 2676 |
| Max driving speed | km/h | 13/12.5 |
| Max Lifting speed | mm/s | 260/420 |
| Max lowering speed | mm/s | 480/430 |
| Maxmum tractive force | N | 16800 |
| Max.grade ability | % | 13/14 |
| Drive motor power | kw | 18 |
| Hoisting motor power | kw | 25.4 |
| Level voltage/Capacitance | V/Ah | 80/500 |
| electric control system | Curtis/ZAPI | |
| Total weight | KG | 675 |

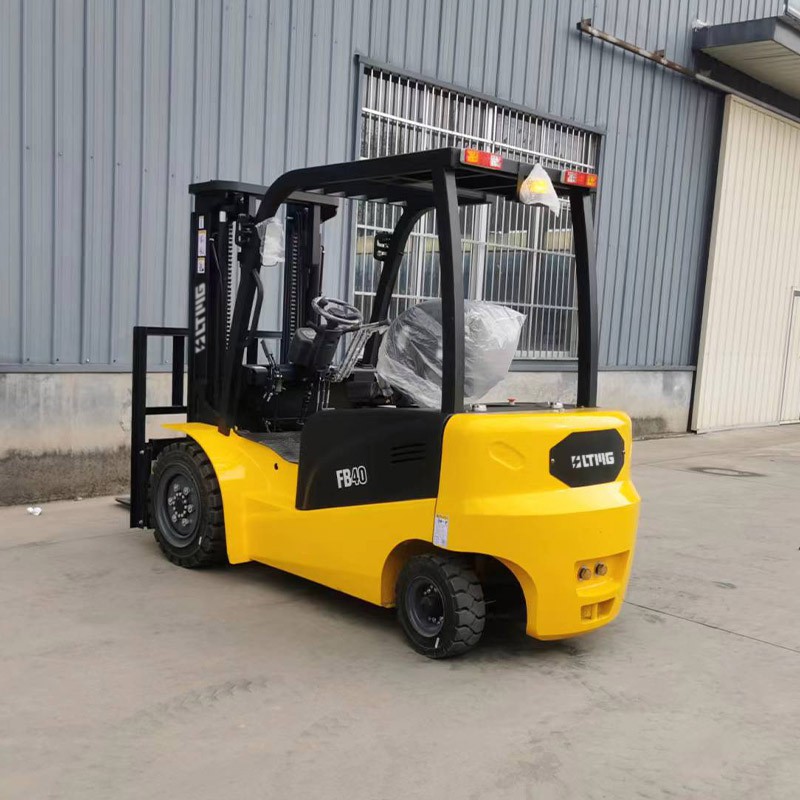

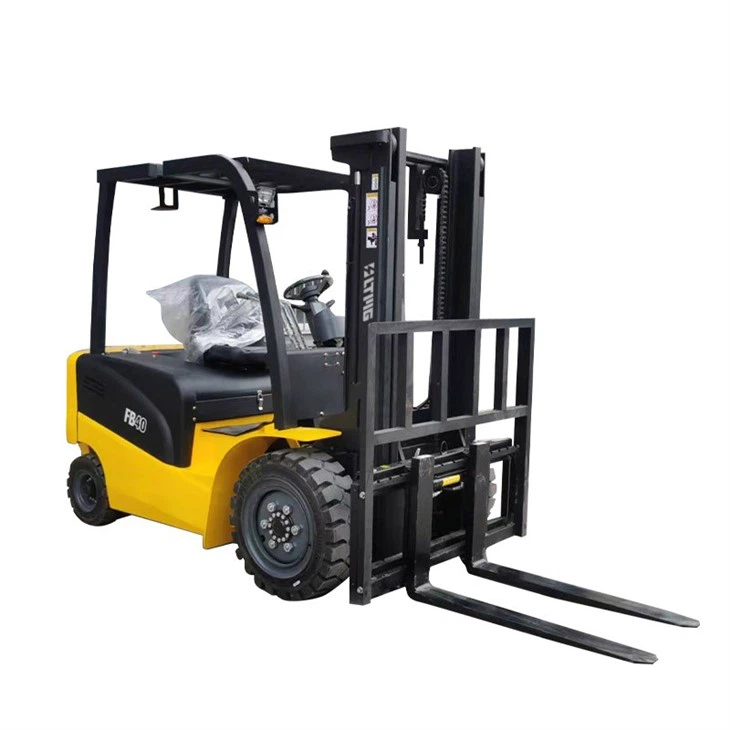

Products image
The four ton electric powered forklift is a incredibly environment friendly and energy-saving piece of machinery. With zero emissions and zero pollution, this forklift is eco-friendly however additionally very dependable and convenient to maintain. This forklift embodies the contemporary technological developments in the enterprise and is best for these who choose a dependable and inexperienced choice for their commercial enterprise operations. With four ton electric powered forklift, you can relaxation certain that you are making a fantastic and accountable desire for your employer and the environment.
Safety insurance

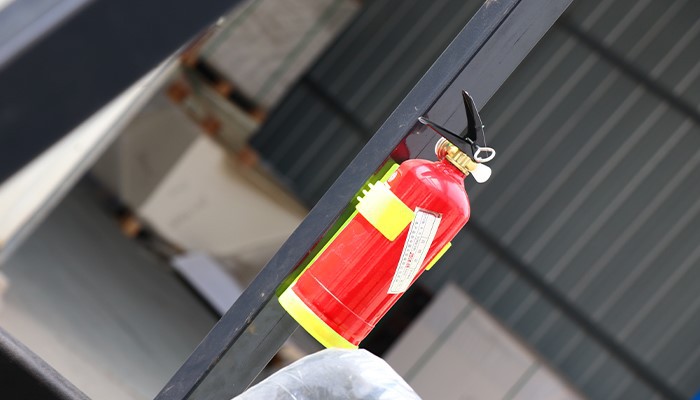

The 4 Ton electric powered forklift is geared up with furnace extinguishers, absolutely in accordance to the preferred for security and innovation in the fabric coping with enterprise and offering extremely good tools that goes above and past expectations. In high-risk work environments like warehouses and storage facilities, furnace extinguishers play a decisive role, making sure the protection of the driver and minimizing damage. We are dedicated to constructing the very best excellent products via prioritizing each product fine and job safety.
customer service
Our client provider group is honestly excellent for its unwavering dedication to supplying 24-hour provider to world customers. Regardless of the nature of customers' requests, the crew shows the utmost professionalism and swiftness in addressing inquiries, resolving issues, and supplying beneficial guidance.
FAQ
Q: How is inventory managed, and can I expect prompt availability of the 4-ton Electric Forklift?
A: Our maintain a well-managed inventory to meet customer demands promptly. To ensure real-time information on stock availability, we recommend checking with our sales team, as demand may influence inventory levels. We are dedicated to providing timely and efficient solutions for our customers' material handling needs.
Q: What is your main market?
A:LTMG has sold the products to Europe, North America, South America, Australia, The Middle East, and etc.
Q: 3. What is included in the shipping container?
A:In addition to the product itself, the shipping container will encompass a complimentary toolbox, an export qualification inspection and certificate, a user manual and CD containing operating instructions, and even surplus machine body paint. This comprehensive package is designed to enhance convenience and ensure customer satisfaction.
