Products Description

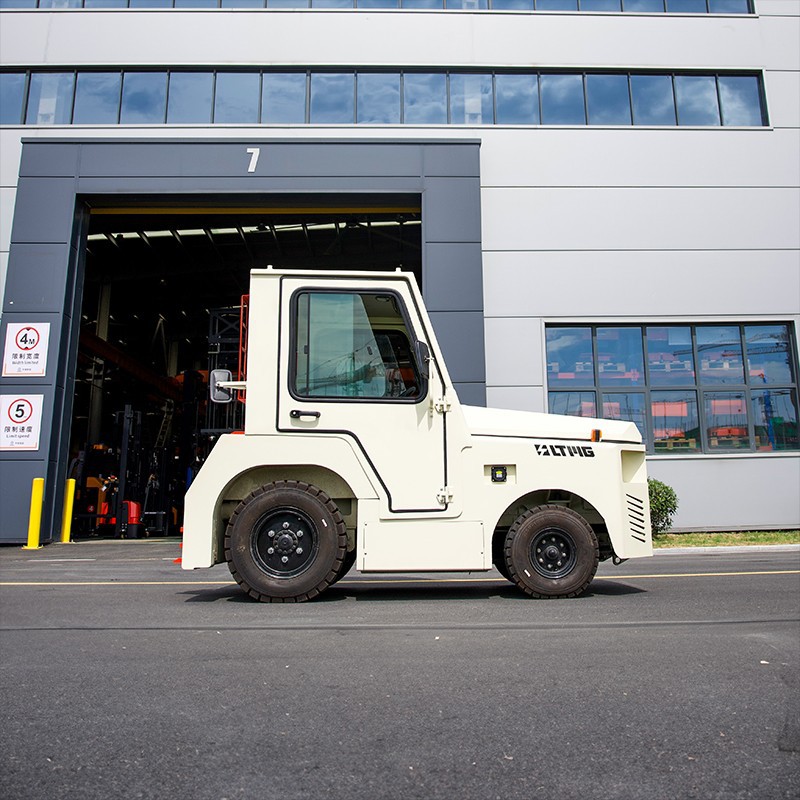

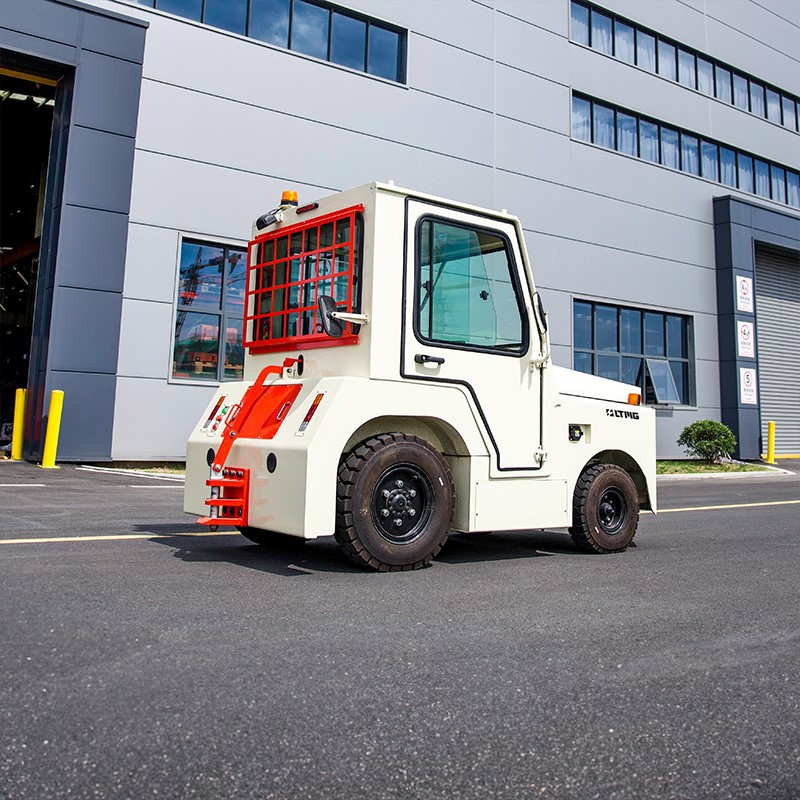

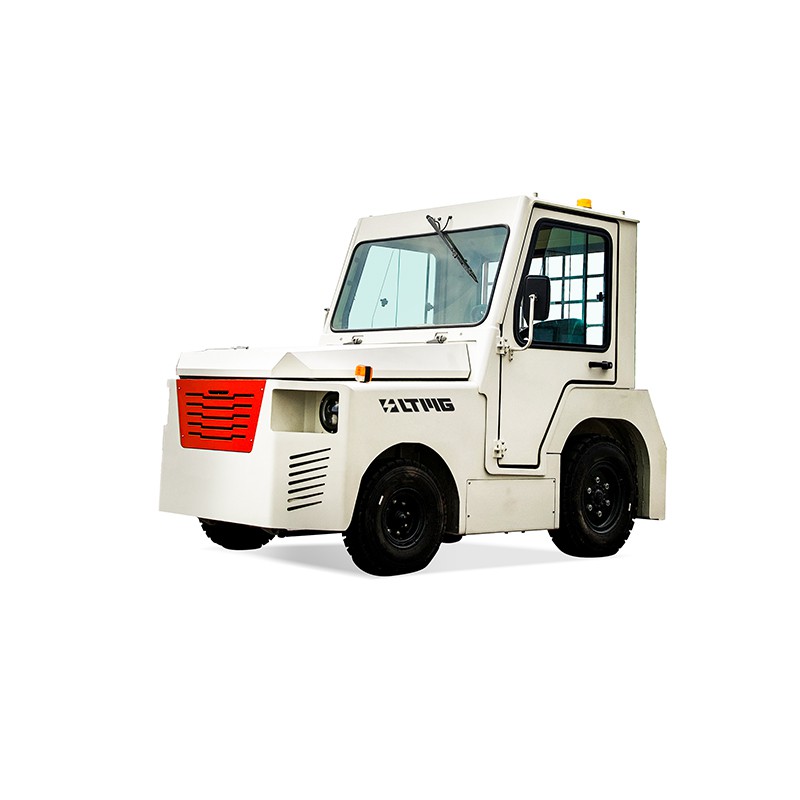

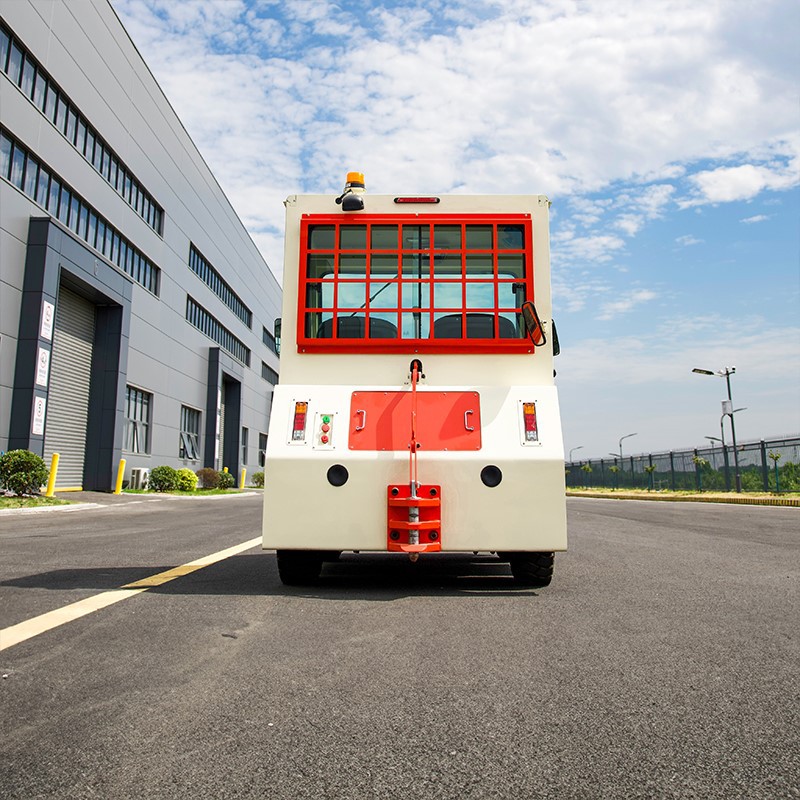

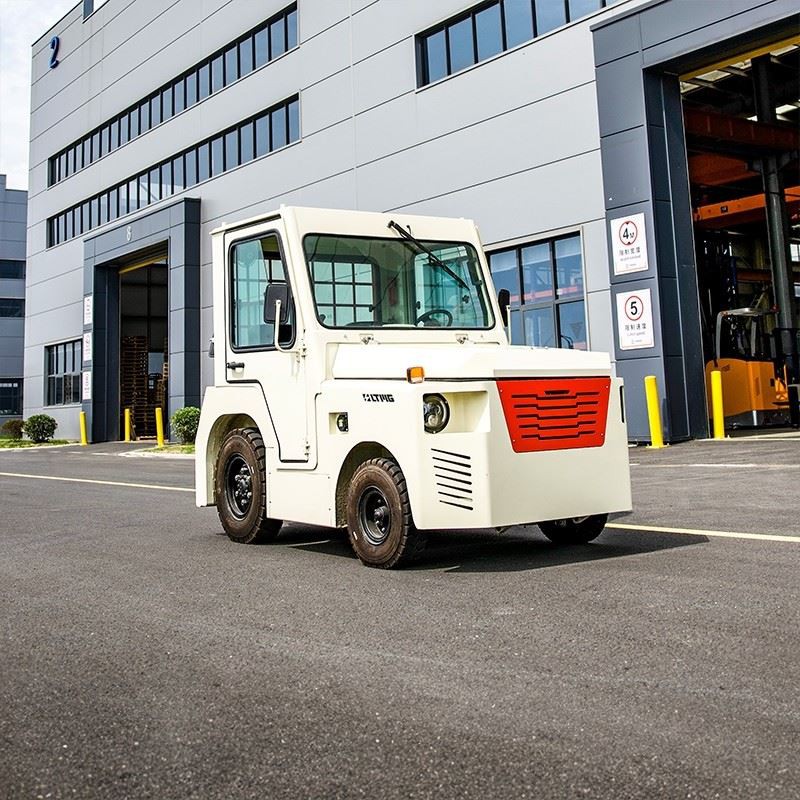

TB30 electric baggage tractor, which can haul 30 tons of cargo, has the advantages of low noise, no pollution, and large traction. It is widely used in cargo transportation and traction operations in airports, freight service stations, docks, warehouses and other industries.
Equipped with a full AC drive system, it has the characteristics of strong climbing ability, maintenance-free, regenerative braking, good working stability and high efficiency.
Imported brand electronic control, with multiple automatic protection systems, provides a higher level of functional safety.
The front and rear axles adopt a suspended torsion beam structure, and a shock-absorbing leaf spring-level buffer damper is installed to reduce the shaking of the vehicle and keep the vehicle stable.
The main structure of the vehicle is composed of square tubes welded together, with a streamlined shape, beautiful and generous appearance, suitable for traction and jacking operations.
The brake adopts a vacuum booster braking system, which increases the pressure of the hydraulic system, makes the brake light and enhances the braking performance. And combined with the design of front disc and rear drum, the braking effect is improved, the ventilation and heat dissipation are good, the brake is linear, easy to control, and the driving safety and comfort are improved.
The unique arched design cab is strong. It adopts a two-door design with a double-row seat layout, and can be equipped with optional fans, parking air conditioning, etc.
Specification
|
Model |
TB30 |
|||
|
Operation |
Seated type |
|||
|
Power |
Li-ion |
|||
|
Characteristics |
Maximum hitch towing capacity |
KN |
28.8 |
|
|
Rated hitch towing capacity |
13.2 |
|||
|
Rated towing capacity |
Single unit towing capacity |
Kg |
30000 |
|
|
Maximum drive speed |
Moving forward(full loaded/loaded) |
Km/h |
25 |
|
|
Moving backward |
10 |
|||
|
Minimum turning radius |
mm |
3200 |
||
|
Max. gradeability when full loaded |
% |
30 |
||
|
Max. brake distance |
Without trailer |
m |
5.7 |
|
|
Rated towing capacity |
4.7 |
|||
|
Dimensions |
Overall length (Tow pin included) |
l1(mm) |
3135 |
|
|
Overall width |
b1(mm) |
1440 |
||
|
Overall height (including cab with siren light) |
h1(mm) |
2185 |
||
|
The front track width |
b2(mm) |
1220 |
||
|
The rear track width |
b3(mm) |
1190 |
||
|
Wheelbase |
Y(mm) |
1600 |
||
|
Tow pin hitch height up/down |
h3(mm) |
310/400 |
||
|
Minimum ground clearance |
m2(mm) |
165 |
||
|
Tyre |
Tyre specifications |
The front wheel |
6.50-10PR |
|
|
The rear wheel |
7.00-15PR |
|||
|
Weight |
Overall curb weight (with cab) |
Kg |
4170 |
|
|
Rated power |
kW |
23 |
||
|
Battery |
Voltage/capacity |
V/Ah |
80V /600Ah |
|
|
Motor |
Voltage/current |
V/A |
80V/80A |
|
|
Steering |
Hydraulic power steering |
|||
|
Brake |
Power steering type |
|||
|
Service brake |
||||
|
Parking brake |
|
|||
Certification
Shipping Plan
FAQS
Q: What are your payment terms?
A: Our payment terms are T/T, with a 30% deposit and 70% balance before delivery. Before you make the final payment, we will provide photos of the product and packaging.
Q: What are your delivery terms?
A: We offer EXW, FOB, CFR, CIF, and DDU terms.
Q: Do you have professional certifications?
A: Yes, we have the necessary certifications and licenses for producing the trucks mentioned earlier.
Q: What is your delivery time?
A: Normally, delivery takes about 30 days after receiving your payment. The exact time depends on the specific items and order quantity.
Q: Can you manufacture based on samples?
A: Yes, we can produce according to your samples or technical drawings, including mold and fixture manufacturing.
Q: Do you test all products before shipping?
A: Yes, we conduct 100% testing before delivery.
Q: How do you maintain long-term business relationships?
A: 1. We ensure high quality and competitive pricing to benefit our customers. 2. We respect every customer and treat them as our friends, conducting business sincerely, no matter where they are from.
