Name: LTMG Electric Tow Tractor TB06
Brand: LTMG
SKU: 230571148

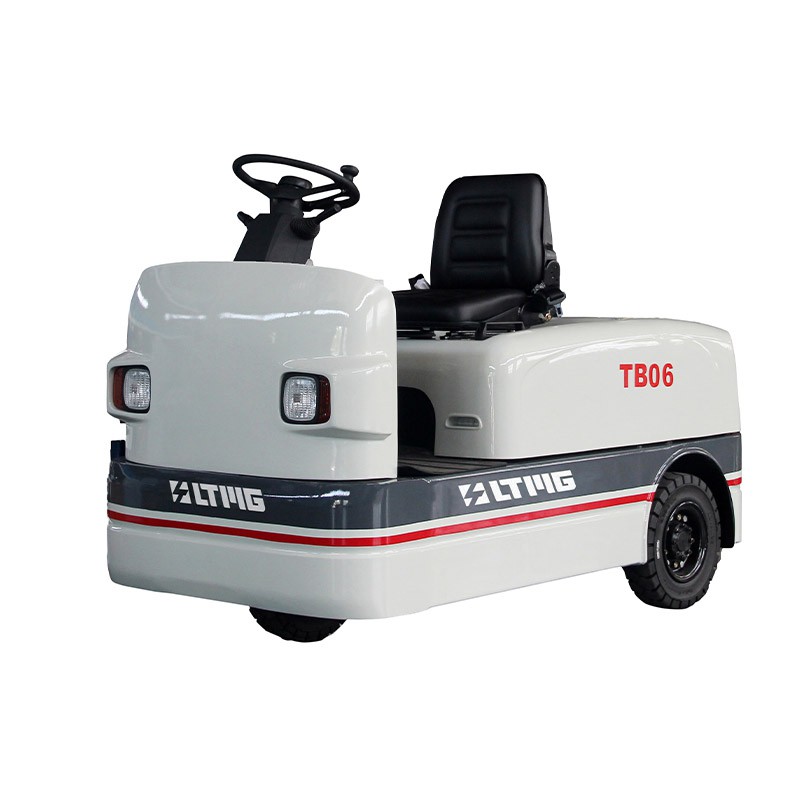

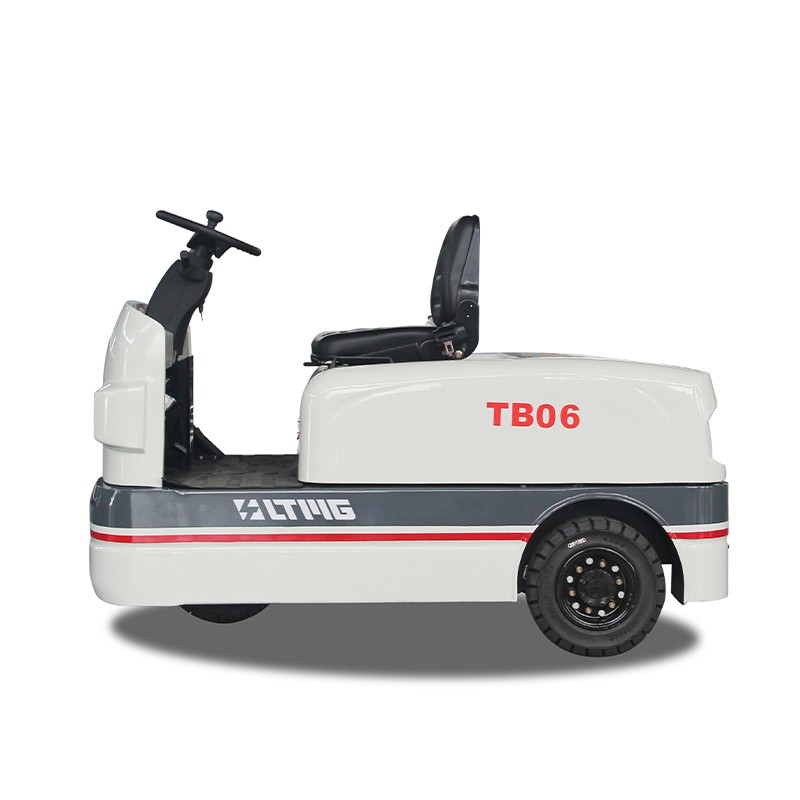

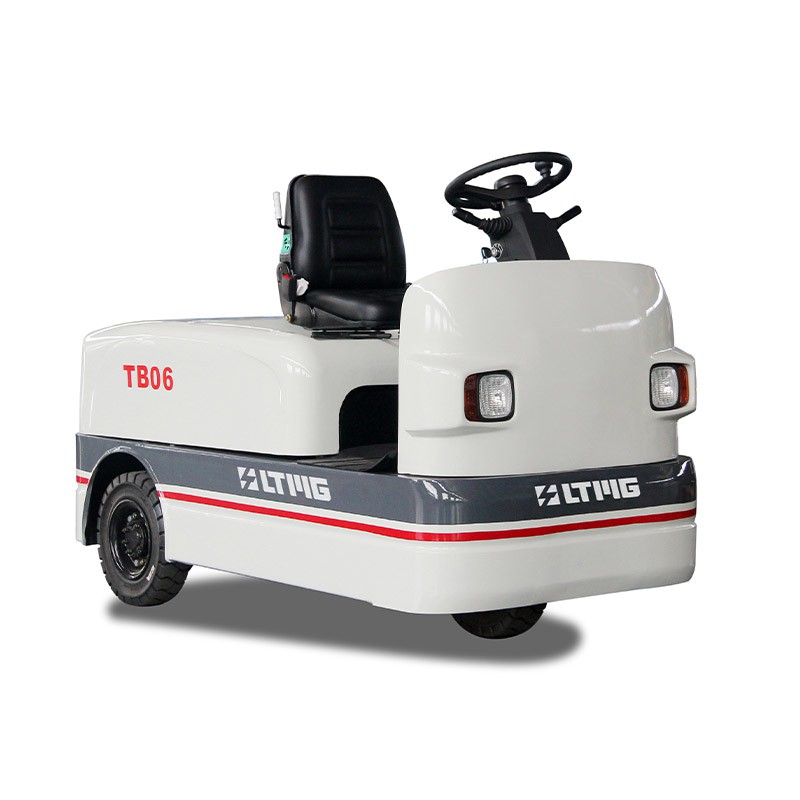

LTMG Electric Tow Tractor TB06

6000kg towing capacity
AC drive control system
Power steering
48V/275Ah electrical system
A compact operator-friendly towing tractor with superior maneuverability and operability. This powerful material-handling partner enables you to transport large quantities of materials over long distances with ease.It's widely used from industry and manufacturing to health care and hospitals, to distribution, aviation, and more.

Send Inquiry

Chat Now

Products Description

1. TB06 electric tractor. Compact design, super small turning radius. High efficiency, eco-friendly, pollution-free, long service life, low noise, high reliability and etc.
2. The electro-magnetic parking brake provides an easy, quick, reliable and easy maintenance performance.
3. Strong power system, accurate speed performance and a variety of renewable functions, high performance.
4. Good power system, precise speed adjustment, braking regeneration function, excellent performance.
5. Inching switch at rear chassis creates high efficiency.
6. LED METER, good outlook, integrated information display, famous brand motor, efficient, reliability.

tug baggage tractor

baggage tractor

electric baggage tractor

technical parameters

Characteristic	Model		TB06
	Power Type		Battery
	Operator Type		Seated
	Rated Capacity	kg	6000
	Rated Drawbar Pull	N	1600
	Wheelbase	mm	1100
	Service Weight	kg	1150
Dimension Parameter	Overall Length	mm	1966
	Overall Width	mm	1010
	Overall Height	mm	1300
	Ground Clearance	mm	60
	Turning Radius	mm	1850
Tyres	Tires		Solid rubber tyres
	Tire Size(Front)	mm	4.00-8
	Tire Size(Rear)	mm	4.00-8
	Wheel Number Front/Rear(x=driven wheels)		1/2x
	Tread Rear	mm	820
Performance Parameter	Travel(Loaded/Unloaded)Speed	km/h	9.5/10.5
	Max.Drawbar Pull	N	6500
	Service Brake		electromagnetism + Hydraulic
Electric Motor	Drive moror Rating S2 60min	kW	6(A/C)
	Battery acc. to DIN43531/35/36A,B,C,no		DIN
	Battery Voltage, Normal Capacity K5	V/Ah	48/275
	Battery Weight	kg	540
Additional Data	Type of Drive Control		MOSFET
Additional Data	Sound level at driver's ear acc. to EN 12053	dB(A)	<70
